EK-Quantum

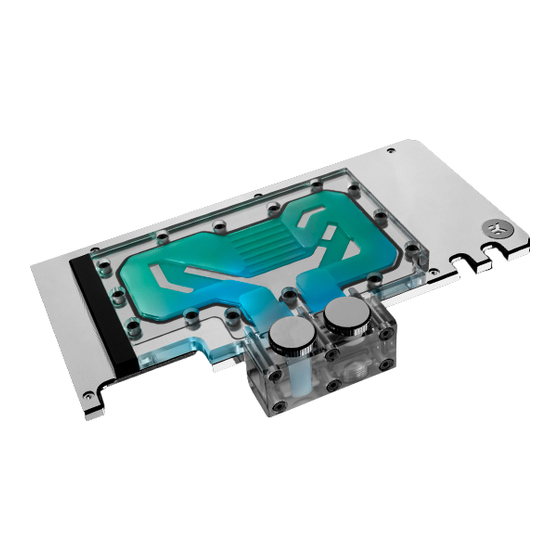

Vector TUF RTX 3080/3090 Active Backplate
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vector TUF RTX 3080 and is the answer not in the manual?

Questions and answers

Related Manuals for EK-Quantum Vector TUF RTX 3080

Summary of Contents for EK-Quantum Vector TUF RTX 3080

  • Page 1 EK-Quantum Vector TUF RTX 3080/3090 Active Backplate USER GUIDE...
  • Page 2 This product is intended for installation by expert users only. Please Before you start using this product, please follow these basic guidelines: consult with a qualified technician. Improper installation may result in damage to your equipment. EK assumes no liability whatsoever, Carefully read the manual before beginning with the expressed or implied, for the use of this product or its installation.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS BOX CONTENTS ACTIVE BACKPLATE DIMENSIONS REQUIRED TOOLS TECHNICAL SPECIFICATIONS AND PRODUCT PARTS INSTALLING THE ACTIVE BACKPLATE PREPARING THE GRAPHICS CARD CUTTING AND PLACING THERMAL PADS REMOVING THE TERMINAL METAL PLATE ATTACHING THE ACTIVE BACKPLATE INSTALLING FITTINGS AND TUBING CONNECTING THE D-RGB LED STRIP SUPPORT AND SERVICE SOCIAL MEDIA...

  • Page 4: Box Contents

    EAN: 103301 M2.5x8 AX1 Screw (8 pcs) M2.5x8 AX1 Screw - Nickel (8 pcs) EK-Quantum Vector TUF RTX 3080/3090 Active Backplate Allen Key 2.5 mm (1 pc) EK-Loop Multi Allen Key (1 pc) Thermal PAD G 1.5 mm - (120x24mm) (3 pcs) Thermal Pad G 2.0 mm - (120x24mm) (3 pcs)

  • Page 5: Active Backplate Dimensions

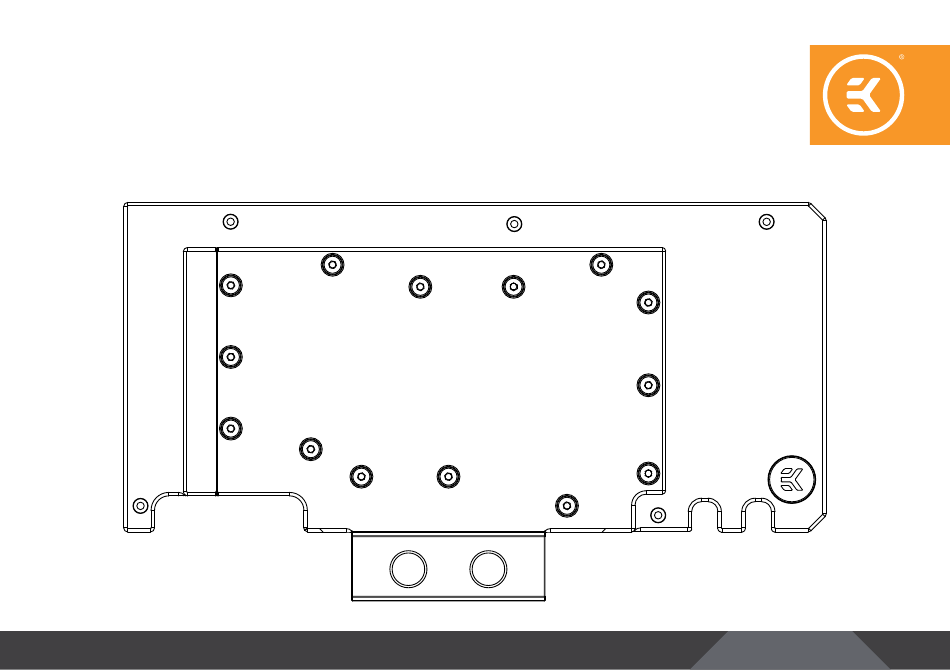

    ACTIVE BACKPLATE DIMENSIONS 122.5 mm 151.5 mm 255 mm REQUIRED TOOLS Phillips Head Screwdriver Scissors - 5 -...

  • Page 6: Technical Specifications And Product Parts

    TECHNICAL SPECIFICATIONS AND PRODUCT PARTS Technical Specification: Dimensions (L x H x W): 255 x 144.5 x 33 mm D-RGB (Addressable RGB) Cable Length: 500 mm D-RGB LED Count: 5 (Plexi Version) D-RGB Connector: Standard 3-Pin (+5V, Data, Blocked, Ground) Position EAN Description Quantity...

  • Page 7: Installing The Active Backplate

    INSTALLING THE ACTIVE BACKPLATE STEP 1 PREPARING THE GRAPHICS CARD First, complete the installation of your EK-Quantum Vector TUF RTX 3080/3090 water block according to its installation manual. In case the water block is already installed, remove the five (5) AX1 screws and their PVC washers, as shown in the image.
  • Page 8 EK-Quantum Vector TUF RTX 3080/3090 Active Backplate comes with its own terminal, meaning the original terminal, along with two (2) 15 x 1 O-rings, on the EK-Quantum Vector TUF RTX 3080/3090 water block has to be removed. Unscrew the three (3) M4 x 20 M4 x 20 DIN7984 DIN7984 screws and detach the terminal from the water block.

  • Page 9: Cutting And Placing Thermal Pads

    STEP 3 CUTTING AND PLACING THERMAL PADS Your Active Backplate comes with thermal pads that have to be cut Thermal PAD G 1.5 mm (120 x 24 mm) into smaller pieces to cover all the VRM components. EK made sure to provide you with more than an adequate quantity of thermal pads to complete this Step-s.

  • Page 10: Removing The Terminal Metal Plate

    STEP 5 REMOVING THE TERMINAL METAL PLATE TERMINAL METAL PLATE The Metal plate attached on the Terminal is meant as a precaution, to secure the two O-rings to prevent them from falling out of their sockets during transport and handling. Before the installation of the Active Backplate, this metal plate has to be removed.
  • Page 11 Place the active backplate on the PCB and make sure all holes are aligned. Position an M2.5 x 8 AX1 screw into each of the five (5) mounting holes (as shown in the image) and tighten them evenly M2.5 x 8 AX1 with a Phillips head screwdriver.

  • Page 12: Installing Fittings And Tubing

    G1/4 The pre-mounted terminal is positioned for the optimal flow in the EK-Quantum Vector TUF RTX 3080/3090 water block and in the EK-Quantum Vector TUF RTX 3080/3090 Active Backplate. The terminal can be shifted for 180 degrees but by using it so, the inlet and outlet ports are changed.

  • Page 13: Support And Service

    SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND PRODUCT PARTS” where you can find the EAN number of each part you might need.
