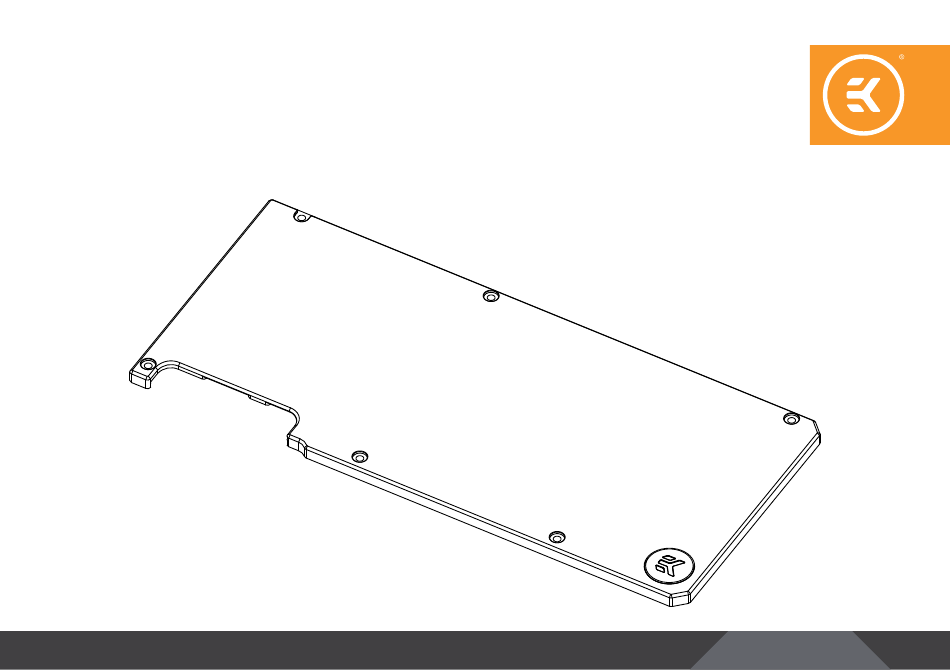

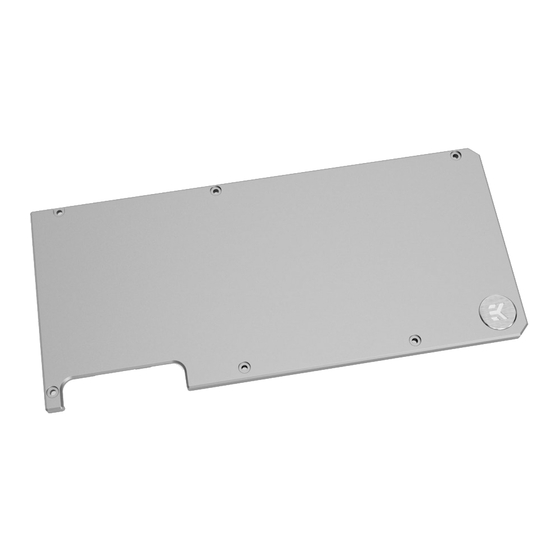

- Page 1 EK-Quantum Vector RTX 3080/3090 Backplate BACKPLATE USER GUIDE...
- Page 2 This product is intended for installation by expert users only. Please consult with a qualified technician. Improper installation may result in damage to your equipment. EK assumes no liability whatsoever, expressed or implied, for the use of this product or its installation. The following instructions are subject to change without notice.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS BACKPLATE DIMENSIONS INSTALLING THE BACKPLATE PREPARING THE GRAPHICS CARD CUTTING AND PLACING THERMAL PADS ATTACHING THE BACKPLATE TESTING THE LOOP WARRANTY REQUIRED TOOLS SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Box Contents
BOX CONTENTS Mounting mechanism - You may not need all the screws, mounting mechanism is universal! EK-Quantum Vector RTX 3080/3090 Backplate M2,5x4 AX1 Screw (3 pcs) M2,5x6 AX1 Screw (7 pcs) M2,5x7 AX1 Screw (7 pcs) M2.5 Nut (5 pcs) PVC Washer M2.5 (10 pcs) -
Page 5: Backplate Dimensions
BACKPLATE DIMENSIONS 220,15 mm - 5 -... -
Page 6: Installing The Backplate
INSTALLING THE BACKPLATE STEP 1 PREPARING THE GRAPHICS CARD First, complete the installation of your EK-Quantum Vector RTX 3080/3090 water block according to its installation manual. In case the water block is already installed, remove the six (6) AX1 screws and their PVC washers, as shown in the image. - Page 7 STEP 3 RTX™ 3080 Thermal Pad Once cut to size, thermal pads should be placed on the backplate, G 2.0mm as illustrated below. Thermal Pad G 1.5 mm Thermal Pad RTX™ 3090 G 1.0 mm Thermal Pad G 2.0 mm Thermal Pad G 1.5 mm STEP 3 - 7 -...
-
Page 8: Attaching The Backplate
STEP 4 M2.5X7 AX1 ATTACHING THE BACKPLATE Place the backplate on the PCB and make sure all holes are aligned. Position an M2.5X7 AX1 screw in each of the six (6) mounting holes (as shown in the image) and tighten them evenly with a Phillips head screwdriver. -
Page 9: Warranty
WARRANTY Our products are warranted against defects of materials and quality for a period of 24 months, starting with the date of delivery to the end-user. During this period, products will be repaired or have parts replaced at our discretion, provided that 1) the product is returned to the agent from whom it was purchased;... -
Page 10: Support And Service
SUPPORT AND SERVICE In case you need assistance, please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
