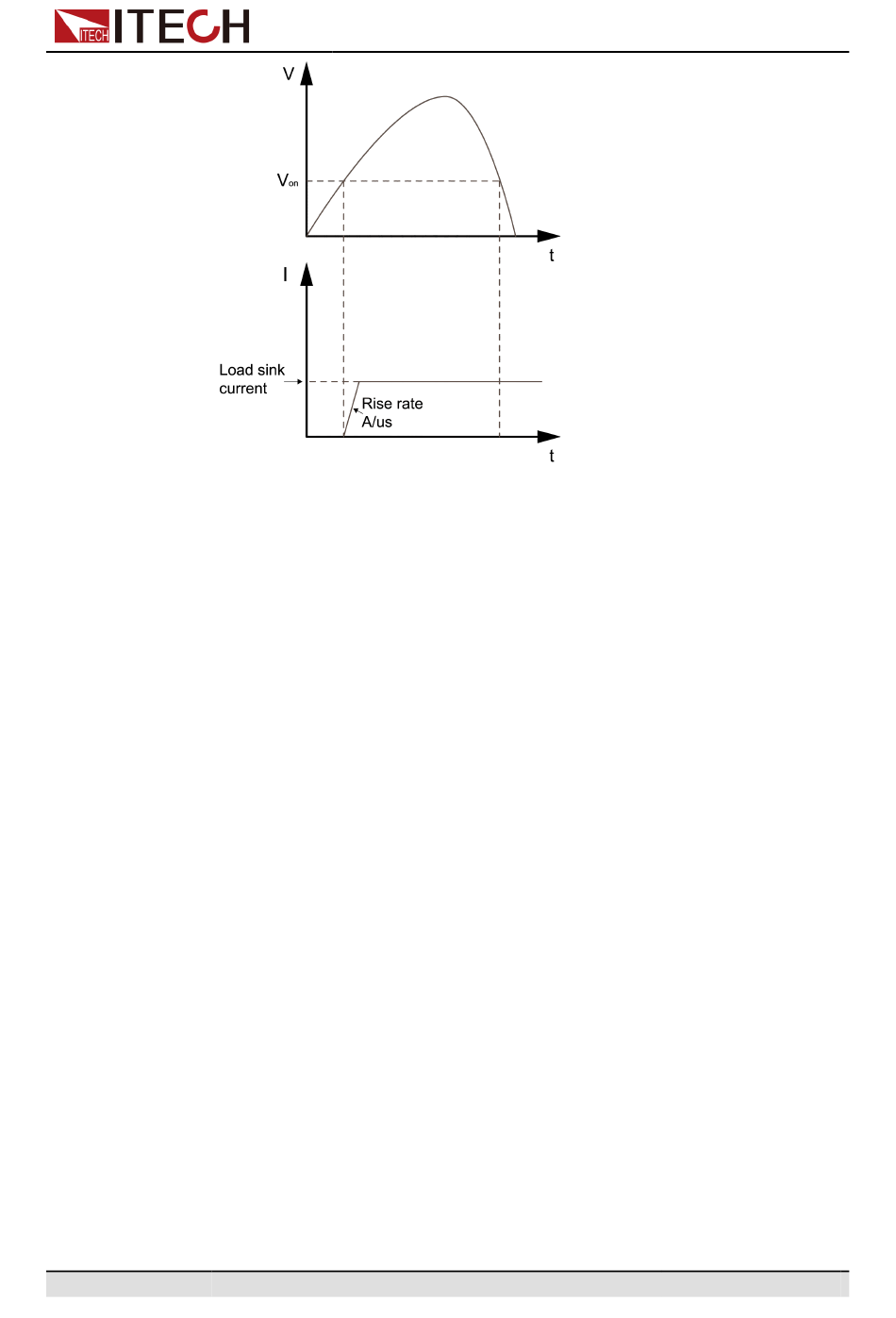

The procedures to set Von function are as follows.
1. Press [Shift]+[V-set] (Config) and enter to config menu.
2. Rotate knob Von Level, press [Enter] to confirm.
3. Use knob and left/right keys to set the voltage level of VON, press [Enter] to
4. Rotate the knob to select Von Mode and [Enter] to confirm.
5. Rotate the knob to select Living or Latch and press [Enter] to confirm.
6. Press [Esc] to exit.

5.3 Protection Function

5.3.1 Set Over-Current Protection (OCP)

Users can enable the OCP function and set the protection limit Level and
protection delay time Delay. When the current (i.e., the Meter value) is greater
than this protection limit and the delay time is exceeded, the instrument will
enter the OCP state.
An over-current protection will occur if:
•
•
Enable OCP
1. Press [Shift]+[R-set](Protect) to enter the protection menu.
confirm.
Enable OCP;
The load current value is greater than the set current protection point Level
and the period is greater than the set protection delay time Delay.
