5.1.2 Single Operation Mode

When select CC/CV/CP/CR modeUnder load mode, the instrument operating in
present mode.
This series electronic loads operate in constant voltage, current, resistance, or
power modes to satisfy a wide range of test requirements.
•
•
•
•
When select a complex mode in Config menu, if you press
[V-set]/[I-set]/[R-set]/[P-set] keys on front panel, the present mode can
not be changed. Under this mode, the corresponding setting keys light
will be lit, and press the other keys will prompt is invalid. For example,
under CV+CC mode, the [V-set] and [I-set] keys light are lit, and user
can set the voltage value and current value, the [P-set] and [R-set] key
are invalid in this mode.
•
When select the Battery Sim. mode, the instrument simulates battery
status. this function is used to test charging generator. And then the
[V-set] key is lit, user can set voltage value to simulate battery voltage,
and other keys invalid.

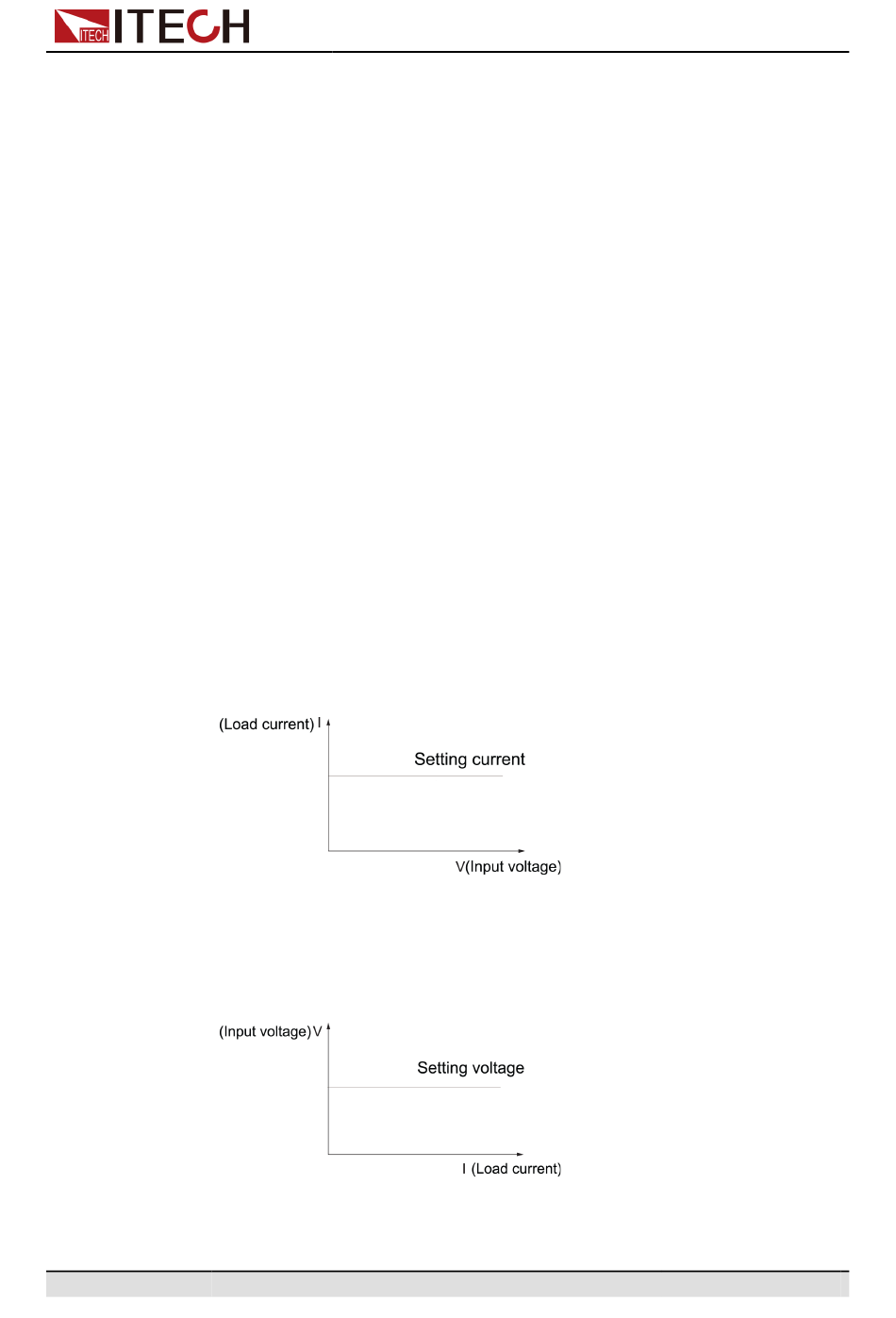

Constant Current Operation Mode (CC)
Under CC mode, the electronic load will consume constant current in
regardless of whether the input voltage changes or not, as shown in the
following figure. The CC mode ensures that the UUT voltage outputs remain
stable when the load varies.
Constant Voltage Operation Mode (CV)
Under CV mode, the electronic load will consume sufficient current to
maintain the input voltage at setting voltage. As shown in the following
figure. For battery chargers or charging stations, CV mode can change their
output voltage to ensure the precision of the charging current.
Constant Resistance Operation Mode (CR)
