6 | Unit installation

6.3 Mounting the indoor unit

6.3.1 To install the indoor unit

Installer reference guide
26

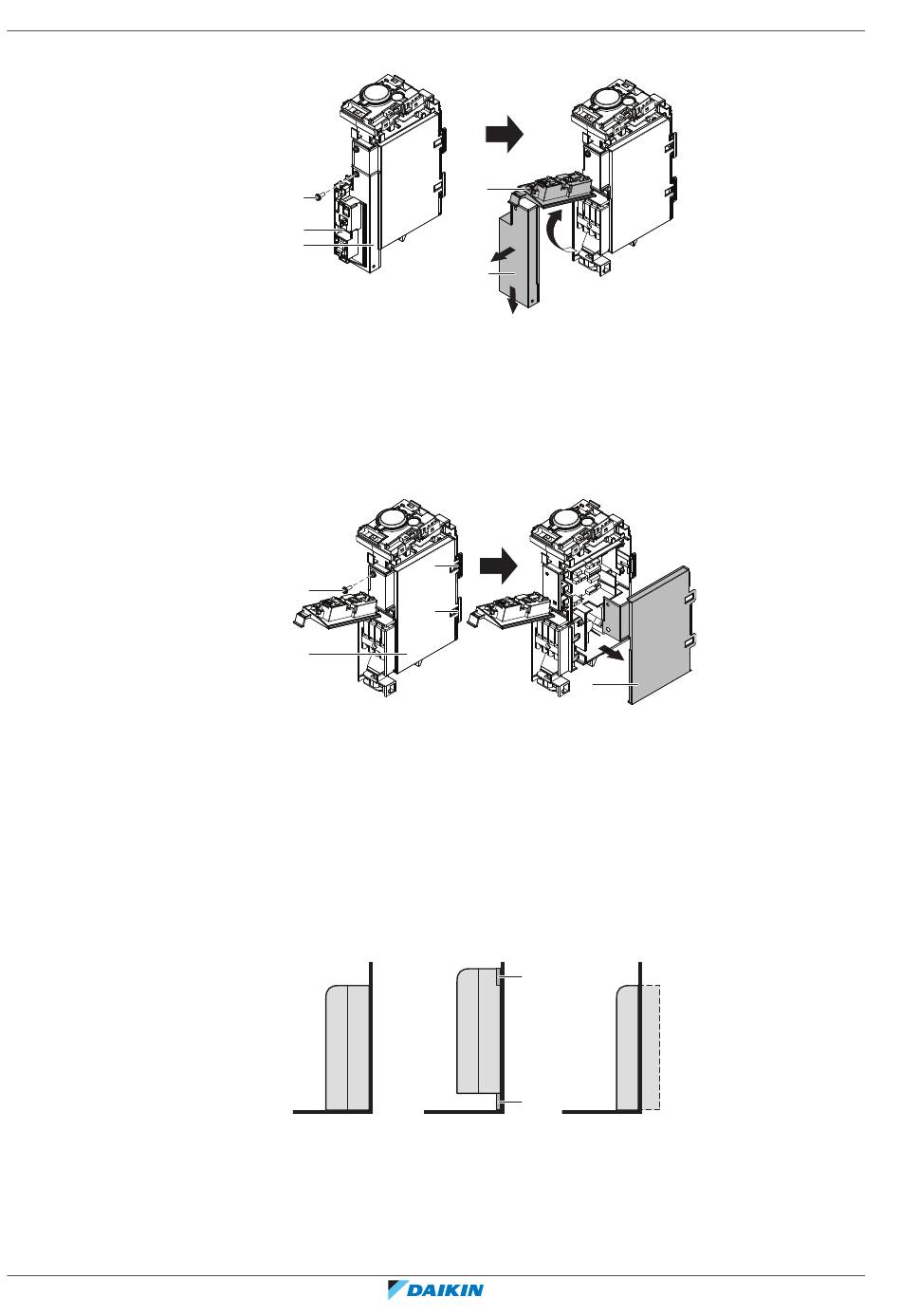

4 Move the metal plate cover down and then towards you to remove it.
a
b
c
a Screw
b Sensor securing plate
c Metal plate cover
To remove the electrical wiring box cover
1 Open the terminal block.
2 Remove 1 screw from the electrical wiring box.
3 Unhook the 2 tabs on the electrical wiring box cover and remove it.
a
b
a Screw
b Wiring box cover
c Tabs
Installation options
There are 3 possible type of installation for the indoor unit.
A
A Floor (exposed) installation
B Wall (exposed) installation
C Half concealed installation
a Mounting plate
b Skirting board
b
1
3
c
2
c
c
b
a
b
B C
CVXM20+FVXM25~50A2V1B
Split system air conditioners
4P625991-1 – 2020.06
