Page 1: Operation Manual
DAIKIN ROOM AIR CONDITIONER OPERATION MANUAL MODELS FDXS09LVJU FDXS12LVJU CDXS15LVJU CDXS18LVJU... - Page 2 Feature For your comfort and energy For your comfort and energy saving saving ECONO This function enables effi cient operation by limiting the maximum power consumption. It is useful when using the air conditioner and other electrical devices simultaneously. Page 16...
-
Page 3: Table Of Contents
Contents Read before Operatio n Safety Precautions ..........Names of Parts ............ Preparation before Operation ......Operatio n AUTO · DRY · COOL · HEAT · FAN Operation ..........Adjusting the Airfl ow Rate ....... POWERFUL Operation ......OUTDOOR UNIT QUIET Operation ..ECONO Operation ........ -
Page 4: Safety Precautions
Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself. Incorrect work or modifi cations could cause electric shocks, fi re or other damage. For repairs and reinstallation, consult your Daikin dealer for advice and information. •... - Page 5 Arrange the drain hose to ensure smooth drainage. Improper drainage may cause water damage to the building, or its furnishing. • Depending on the usage environment, water may leak from the air conditioner. If this happens, contact your Daikin Dealer. •...
-
Page 6: Names Of Parts

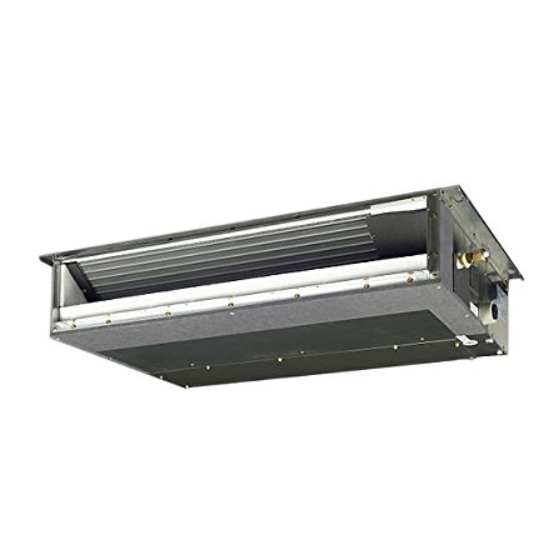

Names of Parts Indoor Unit Air outlet Air outlet grille (fi eld supply) • Appearance of the air outlet grille and air inlet grille may differ from some models. Air inlet Suction grille (option) • Appearance of the suction grille and air inlet grille may differ from some models. - Page 7 Outdoor Unit • Appearance of the outdoor unit may differ from some models. Air inlet Outdoor temperature sensor (back) (back and side) Drain hose Ground terminal • Inside this cover. Air outlet Model name plate Refrigerant piping and inter-unit wiring...
-
Page 8: Front Cover
Names of Parts Remote Controller Signal transmitter Display (LCD) • Displays the current settings. Receiver (In this illustration, each section is shown with all its displays on for the purpose of explanation.) • To use the remote controller, aim the transmitter at the indoor unit. -
Page 9: Quiet Button
Open the front cover MODE selector button • Selects the operation mode. (AUTO/DRY/COOL/HEAT/ FAN) Page 11 QUIET button ECONO button • OUTDOOR UNIT QUIET • ECONO operation. Page 16 operation. Page 15 ON TIMER button OFF TIMER button Page 18 Page 17 CLOCK button Page 10... -
Page 10: Preparation Before Operation
Preparation before Operation To set the batteries Position – Slide the front cover to take it off. correctly! Set two dry batteries AAA.LR03 (alkaline). Set the front cover as before. To fi x the remote controller holder on the wall Choose a place from where the signals reach Remote controller the unit. - Page 11 Turn the breaker on To set the clock Press “ ” is displayed. “ ” and “ ” blink. Press to set the current day of the week. Press “ ” blinks. Press to set the clock to the present time. •...
-
Page 12: Auto · Dry · Cool · Heat · Fan Operation
AUTO · DRY · COOL · HEAT · FAN Operation The air conditioner operates with the operation mode of your choice. From the next time on, the air conditioner will operate with the same operation mode. To start operation Press and select an operation mode. -
Page 13: Operating Conditions
To change the temperature setting Press • The displayed items on the LCD will change whenever either one of the buttons is pressed. COOL operation HEAT operation AUTO operation DRY or FAN operation 64-90°F 50-86°F 64-86°F (18-32°C) (10-30°C) (18-30°C) The temperature setting is not variable. -
Page 14: Adjusting The Airfl Ow Rate
Adjusting the Airfl ow Rate To adjust the airfl ow rate setting Press • Each pressing of advances the airfl ow rate setting in sequence. Auto Indoor unit quiet Middle low High Middle high Middle • When the airfl ow is set to “ ”, indoor unit quiet operation will start and the noise from the unit will become quieter. -
Page 15: Powerful Operation
POWERFUL Operation POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. You can get the maximum capacity. To start POWERFUL operation Press during operation. • POWERFUL operation ends in 20 minutes. Then the system automatically operates again with the previous settings which were used before POWERFUL operation. •... -
Page 16: Outdoor Unit Quiet Operation
OUTDOOR UNIT QUIET Operation OUTDOOR UNIT QUIET operation lowers the noise level of the outdoor unit by changing the frequency and fan speed on the outdoor unit. This function is convenient during night. To start OUTDOOR UNIT QUIET operation Press •... -
Page 17: Econo Operation
ECONO Operation ECONO operation is a function which enables effi cient operation by limiting the maximum power consumption value. This function is useful for cases in which attention should be paid to ensure a circuit breaker will not trip when the product runs alongside other appliances. To start ECONO operation Press during operation. -
Page 18: Off Timer Operation
OFF TIMER Operation Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use OFF TIMER and ON TIMER in combination. To use OFF TIMER operation • Check that the clock is correct. If not, set the clock to the present time. -
Page 19: On Timer Operation
ON TIMER Operation To use ON TIMER operation • Check that the clock is correct. If not, set the clock to the present time. Page 10 Press “ ” is displayed on the LCD. “ ” blinks. • “ ” is no longer displayed on the LCD. Press until the time setting reaches the point you like. -
Page 20: Note For Multi System
Note for Multi System Multi system has one outdoor unit connected to multiple indoor units. Selecting the operation mode With the priority room setting present but A room B room inactive or not present. When more than one indoor unit is operating, priority is given to the fi... - Page 21 COOL/HEAT mode lock The COOL/HEAT mode lock requires initial programming during installation. Please consult your authorized dealer for assistance. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode. NOTE •...
-
Page 22: Care And Cleaning
Care and Cleaning • Only a qualifi ed service person is allowed to perform maintenance. CAUTION • Before cleaning, be sure to stop the operation and turn the breaker off. Air fi lter Removing the air fi lter. • Rear suction Pull the bottom side of the air fi... -
Page 23: Drain Pan
Do not use water or air of 122°F (50°C) or higher for cleaning air fi lters and outside panels. • Ask your DAIKIN dealer how to clean it. Check the units Check that the base, stand and other fi ttings of the outdoor unit are not decayed or corroded. -
Page 24: Troubleshooting
Troubleshooting These incidents are not malfunctions. • The following incidents do not indicate a malfunctioning air conditioner and have explanations. The air conditioner can continue to operate. Indoor unit Possible sounds. The HEAT operation stops suddenly and a fl owing sound is heard. Flowing water •... - Page 25 • Troubleshooting measures are classifi ed into the following two types on a remedial basis. Take an appropriate measure according to the symptom. Not malfunction • The following conditions do not indicate a problem with the system. Check • Please check again before calling a repair person. The air conditioner does not operate.
-
Page 26: During Operation
Troubleshooting Cooling (Heating) effect is poor. The outdoor fan rotates while the air conditioner is not in operation. • Are the air fi lters clean? • Is there anything to block the air inlet or the outlet of the After operation is stopped indoor and the outdoor units? •... -
Page 27: Call The Service Shop Immediately
Call the service shop immediately WARNING When an abnormality (such as a burning smell) occurs, stop operation and turn the breaker off. • Continued operation in an abnormal condition may result in malfunctioning, electric shocks or fi re. • Consult the service shop where you purchased the air conditioner. Do not attempt to repair or modify the air conditioner by yourself. - Page 28 Troubleshooting Fault diagnosis by remote controller • The remote controller can receive a corresponding error code from the indoor unit. When is held down for 5 seconds, a “ ” indication blinks on the temperature display section. Press repeatedly until a continuous beep is produced.
