About the box

4 About the box

4.1 Indoor unit

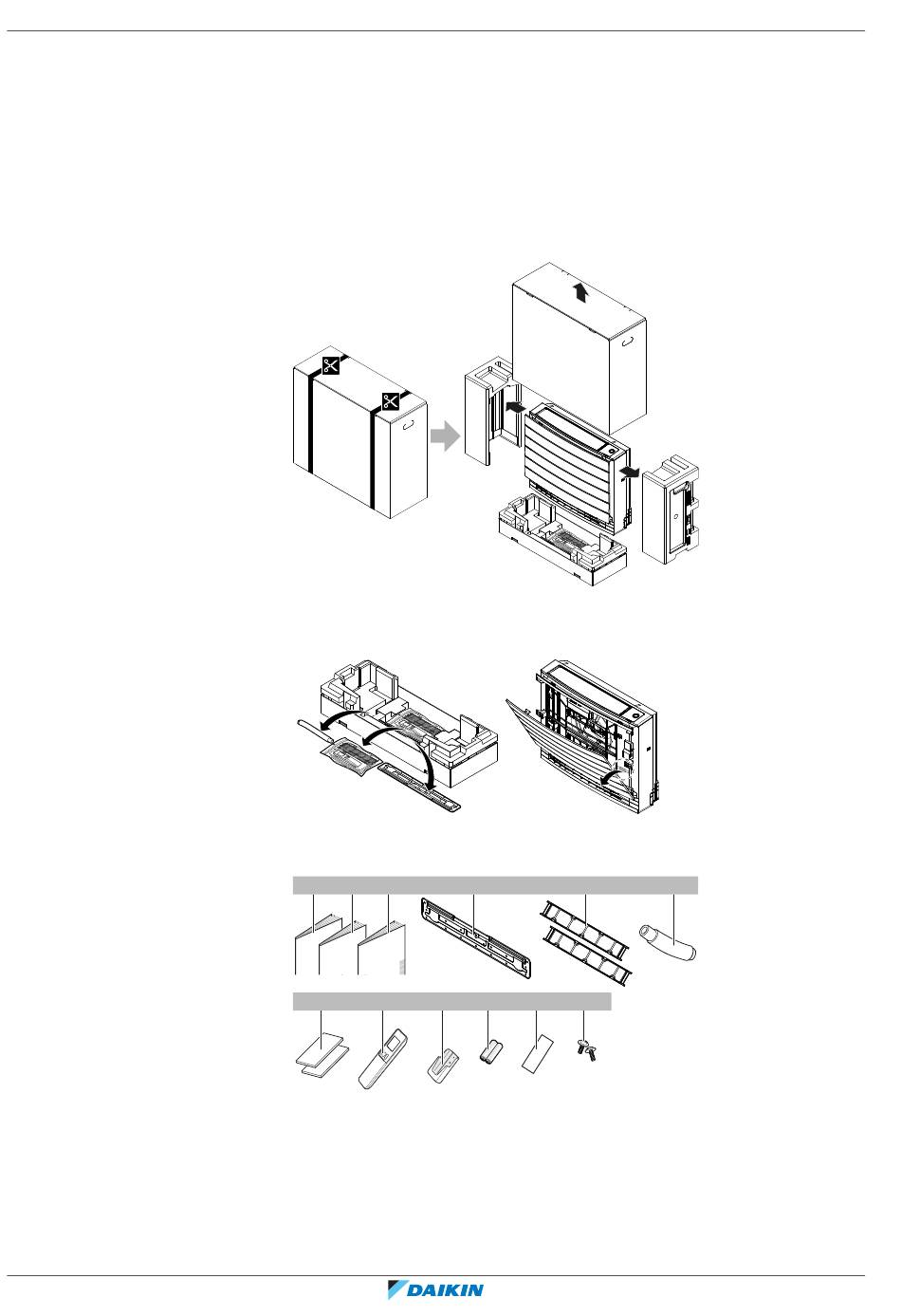

4.1.1 To unpack the indoor unit

4.1.2 To remove the accessories from the indoor unit

Installer reference guide
18
1 Remove the accessories located at the bottom of the package. Spare SSID
sticker is located on the unit.
a b c
1× 1× 1×
g
h
2×
1×
a Installation manual
b Operation manual
c General safety precautions
d Mounting plate (attached to the unit)
e Titanium apatite deodorising filter
f Drain hose
g Insulation piece
h User interface
i User interface holder
j Dry battery AAA.LR03 (alkaline) for user interface
k Spare SSID sticker (attached to the unit)
d e
1× 2×
i j k l
1× 2× 1× 2×
f
1×
CVXM20+FVXM25~50A2V1B
Split system air conditioners
4P625991-1 – 2020.06
