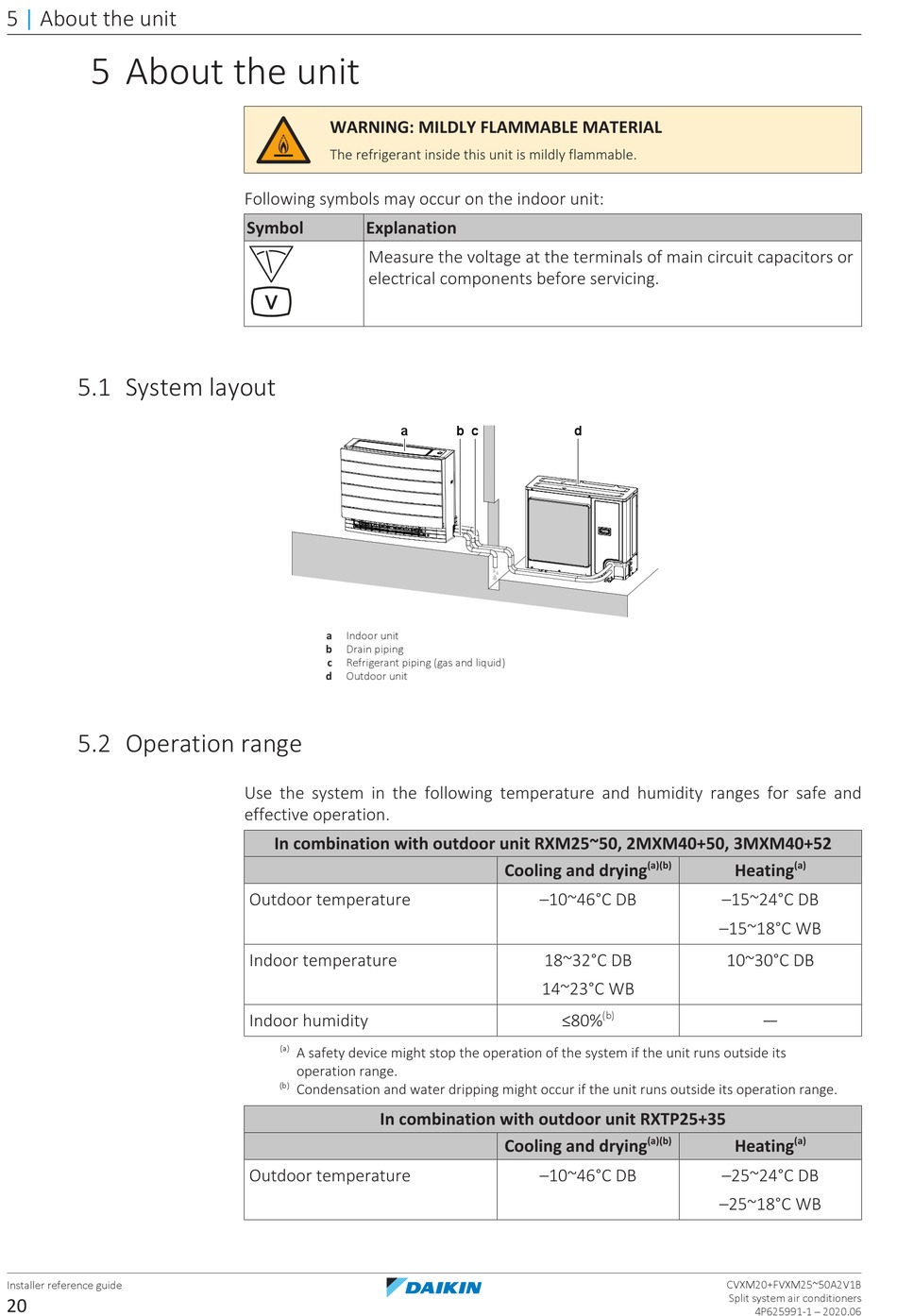

About the unit

5 About the unit

5.1 System layout

5.2 Operation range

Installer reference guide
20
WARNING: MILDLY FLAMMABLE MATERIAL
The refrigerant inside this unit is mildly flammable.
Following symbols may occur on the indoor unit:
Symbol Explanation
Measure the voltage at the terminals of main circuit capacitors or
electrical components before servicing.
a
a Indoor unit
b Drain piping
c Refrigerant piping (gas and liquid)
d Outdoor unit
Use the system in the following temperature and humidity ranges for safe and
effective operation.
In combination with outdoor unit RXM25~50, 2MXM40+50, 3MXM40+52
Outdoor temperature
Indoor temperature
Indoor humidity
(a)
A safety device might stop the operation of the system if the unit runs outside its
operation range.
(b)
Condensation and water dripping might occur if the unit runs outside its operation range.
In combination with outdoor unit RXTP25+35
Outdoor temperature
b c d
Cooling and drying
–10~46°C DB
18~32°C DB
14~23°C WB
(b)
≤80%
Cooling and drying
–10~46°C DB
(a)(b) (a)
Heating
–15~24°C DB
–15~18°C WB
10~30°C DB
—
(a)(b) (a)
Heating
–25~24°C DB
–25~18°C WB
CVXM20+FVXM25~50A2V1B
Split system air conditioners
4P625991-1 – 2020.06
