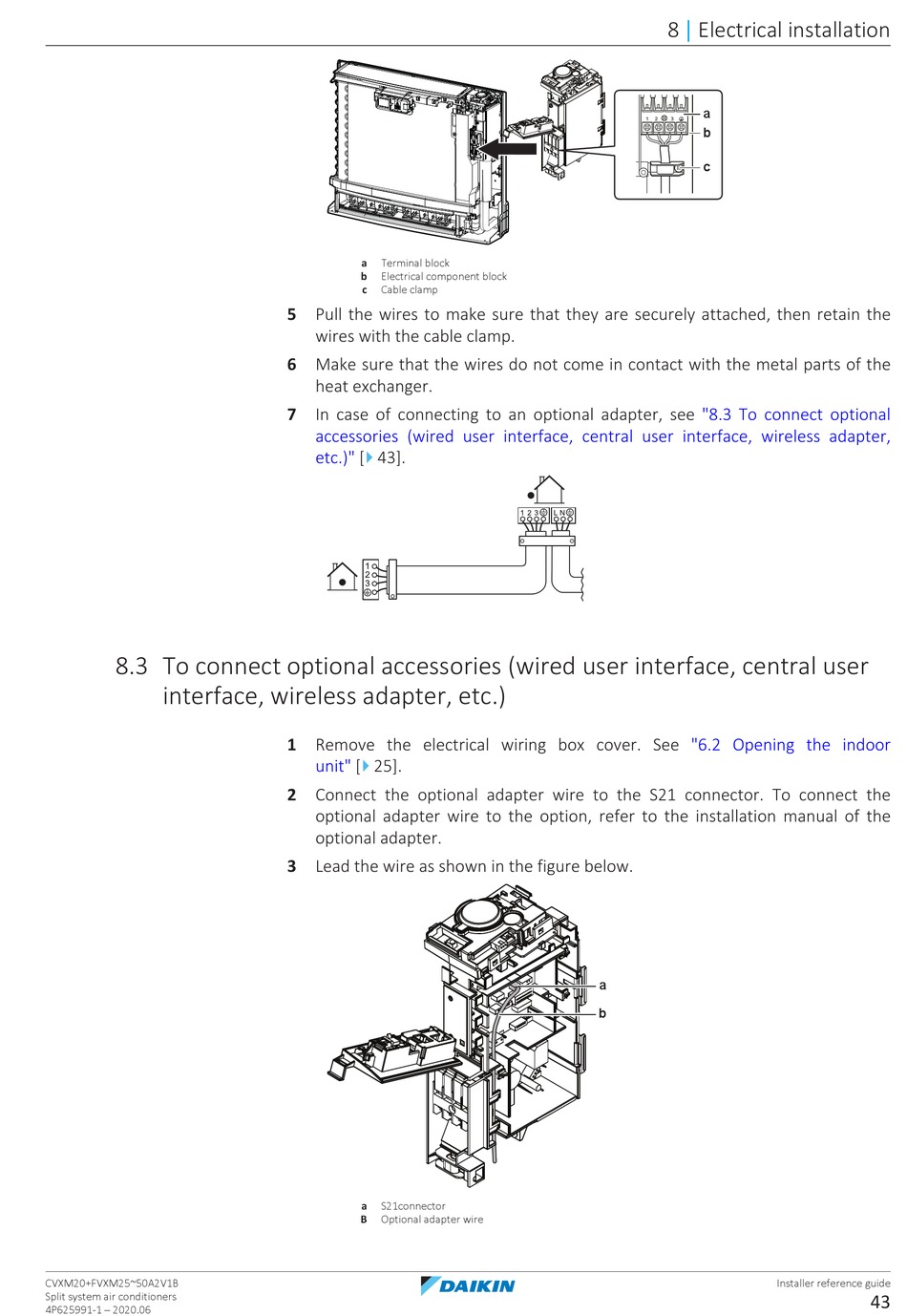

8.3 To connect optional accessories (wired user interface, central user
interface, wireless adapter, etc.)
CVXM20+FVXM25~50A2V1B
Split system air conditioners
4P625991-1 – 2020.06
a Terminal block
b Electrical component block
c Cable clamp
5 Pull the wires to make sure that they are securely attached, then retain the
wires with the cable clamp.
6 Make sure that the wires do not come in contact with the metal parts of the
heat exchanger.
7 In case of connecting to an optional adapter, see
accessories (wired user interface, central user interface, wireless adapter,
4
etc.)" [ 43].
1 Remove the electrical wiring box cover. See
4
unit" [ 25].
2 Connect the optional adapter wire to the S21 connector. To connect the
optional adapter wire to the option, refer to the installation manual of the
optional adapter.
3 Lead the wire as shown in the figure below.
a S21connector
B Optional adapter wire
8 Electrical installation
|
a
b
c
"8.3 To connect optional
"6.2 Opening the indoor
a
b
Installer reference guide
43
