6 | Unit installation
Installer reference guide
30
Half-concealed installation
a
b
b
d
a
g
b

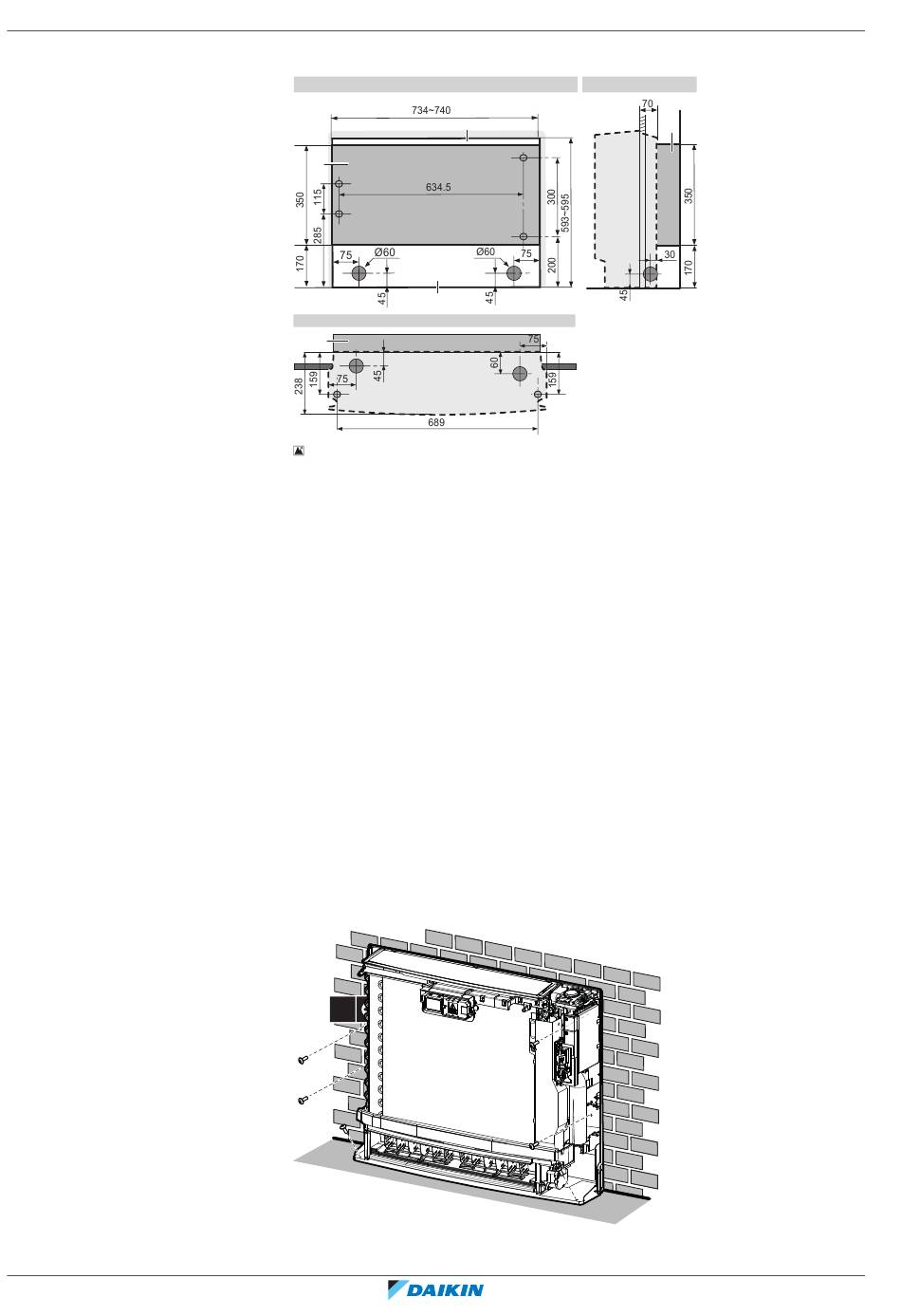

6‒3 Indoor unit installation drawing: Half-concealed installation
A Front view
B Side view
C Top view
a Extra filler board
b Screw hole 6×
c Hole
d Left-back piping hole location
e Right-back piping hole location
f Right/left piping hole location
g Left-bottom piping hole location
h Right-bottom piping hole location
17 Make a hole in the wall as illustrated above.
18 Install the extra filler board (field supply) in accordance with the space
between the unit and the wall. Make sure there is no gap between the unit
and the wall.
19 Drill a wall hole, depending on which side piping is taken out. See
4
drill a wall hole" [
20 Remove the slit portions using nippers. See
4
portions" [ 31].
21 Open the front panel, remove the front grille, remove the top and side casings
(see "6.2 Opening the indoor
22 Secure the unit to the extra filler board and to the floor using 6 screws
M4×25L (field supply).
6×
A
c
b
b
e
c
C
h
b
31].
4
unit" [ 25]).
B
a
f
(mm)
"6.3.2 To
"6.3.3 To remove the slit
CVXM20+FVXM25~50A2V1B
Split system air conditioners
4P625991-1 – 2020.06
