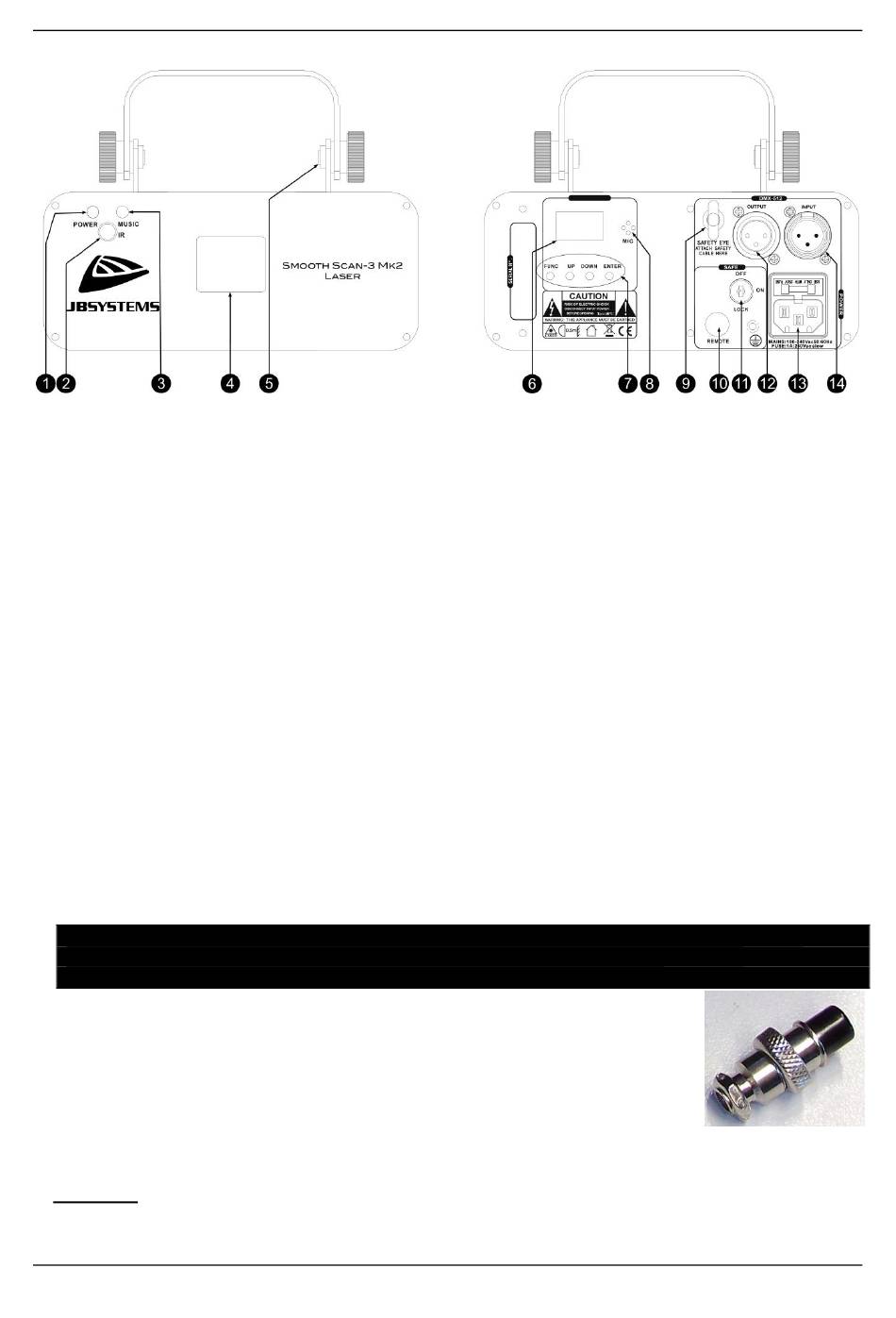

1. POWER LED: indicates that the unit is switched on.
2. IR RECEIVER: used to control the unit by the wireless remote control.
3. MUSIC LED: flashes to the sound of the music detected by the internal microphone.
4. LASER OUTPUT: the laser beam exits the enclosure, make sure to NEVER look inside the unit through
this opening while the laser effect is switched on!
5. HANGING BRACKET: with 2 knobs on both sides to fasten the unit and a mounting hole to fix a
mounting hook.
6. DISPLAY: shows the selected DMX address when the unit is in DMX-mode. Apart from DMX-mode you
can also select 4 other working modes, see further to learn more about these modes.
7. CONTROL PANEL: Used to select the different functions of the laser, see further to learn how to
operate the unit.
8. INTERNAL MICROPHONE: The built-in microphone is used to synchronize the laser show to the beat of
the music.
9. SAFETY EYEBOLT: used to attach a safety cable when the unit is rigged (see paragraph "overhead
rigging"
10. INTERLOCK input ([REMOTE]): used to connect the optional emergency stop switch (see picture).
When you push this switch the laser beam will disappear immediately.
11. ON/OFF KEY ACTIVATED SWITCH: used to switch the unit on/off. Use the keys to make sure only a
skilled operator is able to switch the laser on.
12. DMX OUTPUT: 3pin female XLR-connector used to connect the LASER with the next unit in the DMX
chain.
13. MAINS INPUT: IEC socket with integrated fuse holder, connect the supplied mains cable here.
14. DMX INPUT: 3pin male XLR-connector used to connect universal DMX-cables. This input receives
instructions from a DMX-controller.
IMPORTANT! For your own safety we strongly recommend to connect this optional switch!
THERE WILL BE NO LASER OUTPUT WHEN THE INTERLOCK INPUT IS NOT USED!
Temporary solution: install the spare connector on the laser. (see picture)
OVERHEAD RIGGING
• Important: The installation must be carried out by qualified service personal only. Improper
installation can result in serious injuries and/or damage to property. Overhead rigging requires
JB SYSTEMS®
DESCRIPTION:
4/12
USER MANUAL
SMOOTH SCAN-3 Mk2 LASER
