ENGLISH
• Press the UP/DOWN buttons to select the DMX-mode. (1Ch or 17ch)
• Press the ENTER-button to confirm your choice.
• Press the FUNC-button: the 3 digit number on the display starts blinking.
• Select the DMX-address
• Press the ENTER-button to confirm your choice.
Note: the display blinks when the unit is in DMX-mode and no DMX-signal is detected.

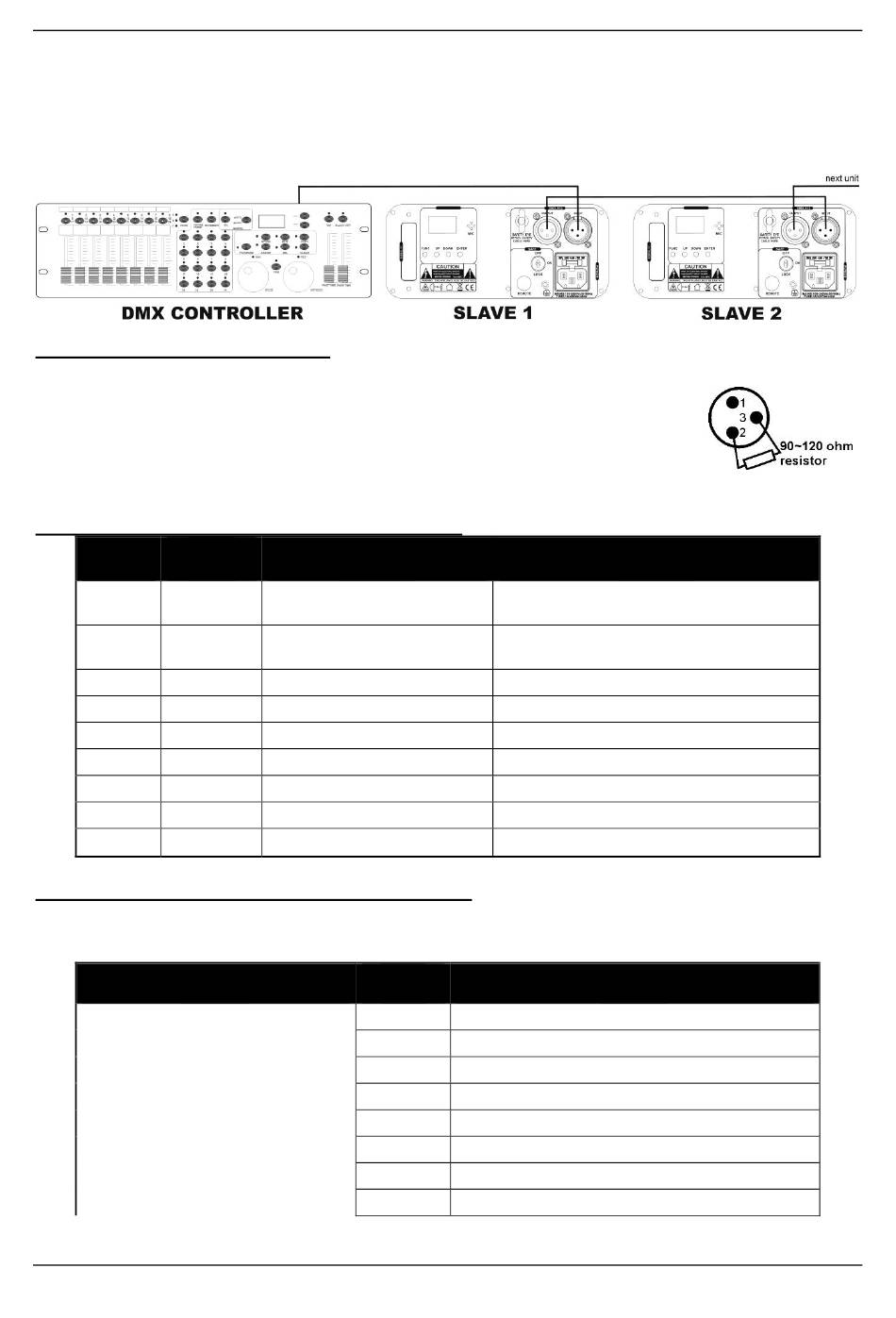

Some more information on DMX512:
The DMX-protocol is a widely used high speed signal to control intelligent light equipment. You need to
"daisy chain" your DMX controller and all the connected light effects with a good
quality XLR M/F balanced cable. To prevent strange behavior of the light effects,
due to interferences, you must use a 90Ω to 120Ω terminator at the end of the chain.
Never use Y-splitter cables, this simply won't work!
Each effect in the chain needs to have its proper starting address so it knows which
commands from the controller it has to decode.
1 CHANNEL DMX-CONFIGURATION OF THE LASER:
DMX-
position value
8 240-255
7 210-239
6 180-209
5 150-179
4 120-149
3 090-119
2 060-089
1 030-059
0 000-029
17 CHANNEL DMX-CONFIGURATION OF THE LASER:
IMPORTANT REMARK: DMX Channel 1 is used to set the different working modes of the laser.
• To use the laser in full 17 channel mode, channel 1 must be set to value 221 or higher.
• Depending on the DMX-values of channel1, different mode can be applied:
Channel
CH1
Mode
JB SYSTEMS®
function
Sound activated show with RGY
SOU colors
Sound activated show with GREEN
So2 color
So1 Sound activated show with RED color
Aut Automatic show with RGY colors
Au2 Automatic show with GREEN color
Au1 Automatic show with RED color
SOP Sound activated pattern effect show
AUP Auto running pattern effect show
STANDBY Laser output off
DMX-
value
000-020
021-040
041-060
061-080
081-100
101-120
121-140
141–160
8/12
USER MANUAL
remarks
function
Laser OFF
AUT
AU1
AU2
AU3
SOU
SO1
SO2
SMOOTH SCAN-3 Mk2 LASER
