Summary of Contents for JB Systems Smooth Scan-3 MK2 Laser

  • Page 3: Before Use

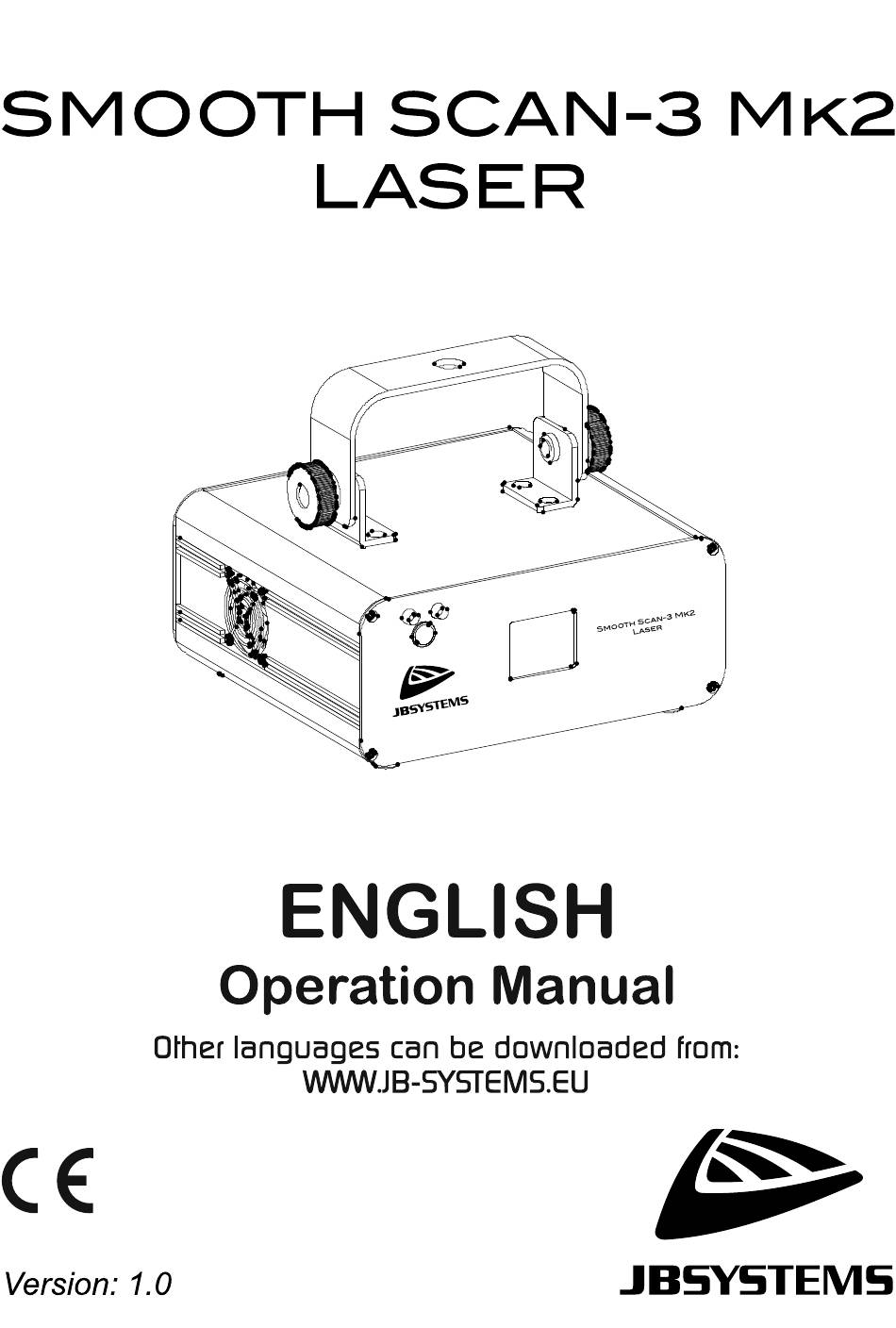

    ENGLISH USER MANUAL OPERATION MANUAL ® Thank you for buying this JB Systems product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES This unit is radio-interference suppressed.

  • Page 4: Safety Instructions

    • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. JB SYSTEMS® 2/12 SMOOTH SCAN-3 Mk2 LASER...

  • Page 5: Laser Safety Instructions

    This valuable document can be obtained from www.laserinstitute.org Please note that JB SYSTEMS cannot be made liable for damages caused by incorrect installations and unskilled operation! JB SYSTEMS®...

  • Page 6: Overhead Rigging

    Temporary solution: install the spare connector on the laser. (see picture) OVERHEAD RIGGING • Important: The installation must be carried out by qualified service personal only. Improper installation can result in serious injuries and/or damage to property. Overhead rigging requires JB SYSTEMS® 4/12 SMOOTH SCAN-3 Mk2 LASER...
  • Page 7 (standalone) or when the laser is placed as the first (master) unit in a chain with several units. • Press the FUNC-button until the display shows one of the following: Aut, Aup, 17C, 1C, Sla or REM. • Now use the UP or DOWN buttons to select: JB SYSTEMS® 5/12 SMOOTH SCAN-3 Mk2 LASER...

  • Page 8: Full Automatic Mode

    3) SLAVE MODE: The laser follows the instructions given by the first SMOOTH SCAN-3 Mk2 LASER (master) in the chain. • Connect the DMX input of the laser to the DMX output of the previous laser in the chain.
  • Page 9 • Connect the DMX input of the laser to the DMX output of the previous unit in the chain or directly to the DMX-output of your controller. • Press the FUNC-button until the display shows: “1C” or “17C”. JB SYSTEMS® 7/12 SMOOTH SCAN-3 Mk2 LASER...
  • Page 10 • To use the laser in full 17 channel mode, channel 1 must be set to value 221 or higher. • Depending on the DMX-values of channel1, different mode can be applied: DMX- Channel value function 000-020 Laser OFF 021-040 041-060 061-080 Mode 081-100 101-120 121-140 141–160 JB SYSTEMS® 8/12 SMOOTH SCAN-3 Mk2 LASER...

  • Page 11: Dmx Mode

    Clockwise rolling X axis move 192-255 Anticlockwise rolling CH15 moving speed 000-255 Fast to slow 000-127 CH16 128-191 Clockwise rolling Y axis move 192-255 Anticlockwise rolling CH17 moving speed 000-255 Fast to slow JB SYSTEMS® 9/12 SMOOTH SCAN-3 Mk2 LASER...
  • Page 12 • Press the FUNC-button until the display shows • Press up or down until the laser shows the Y arrow axis on the top and X arrow axis on the right. • Then press “Enter” to confirm the selection JB SYSTEMS® 10/12 SMOOTH SCAN-3 Mk2 LASER...
  • Page 13 ENGLISH USER MANUAL Pattern list JB SYSTEMS® 11/12 SMOOTH SCAN-3 Mk2 LASER...

  • Page 14: Maintenance

    Laser Safety Standard: Size: see picture below Weight: 1.35kg Every information is subject to change without prior notice You can download the latest version of this user manual on our website : www.jb-systems.eu JB SYSTEMS® 12/12 SMOOTH SCAN-3 Mk2 LASER...
