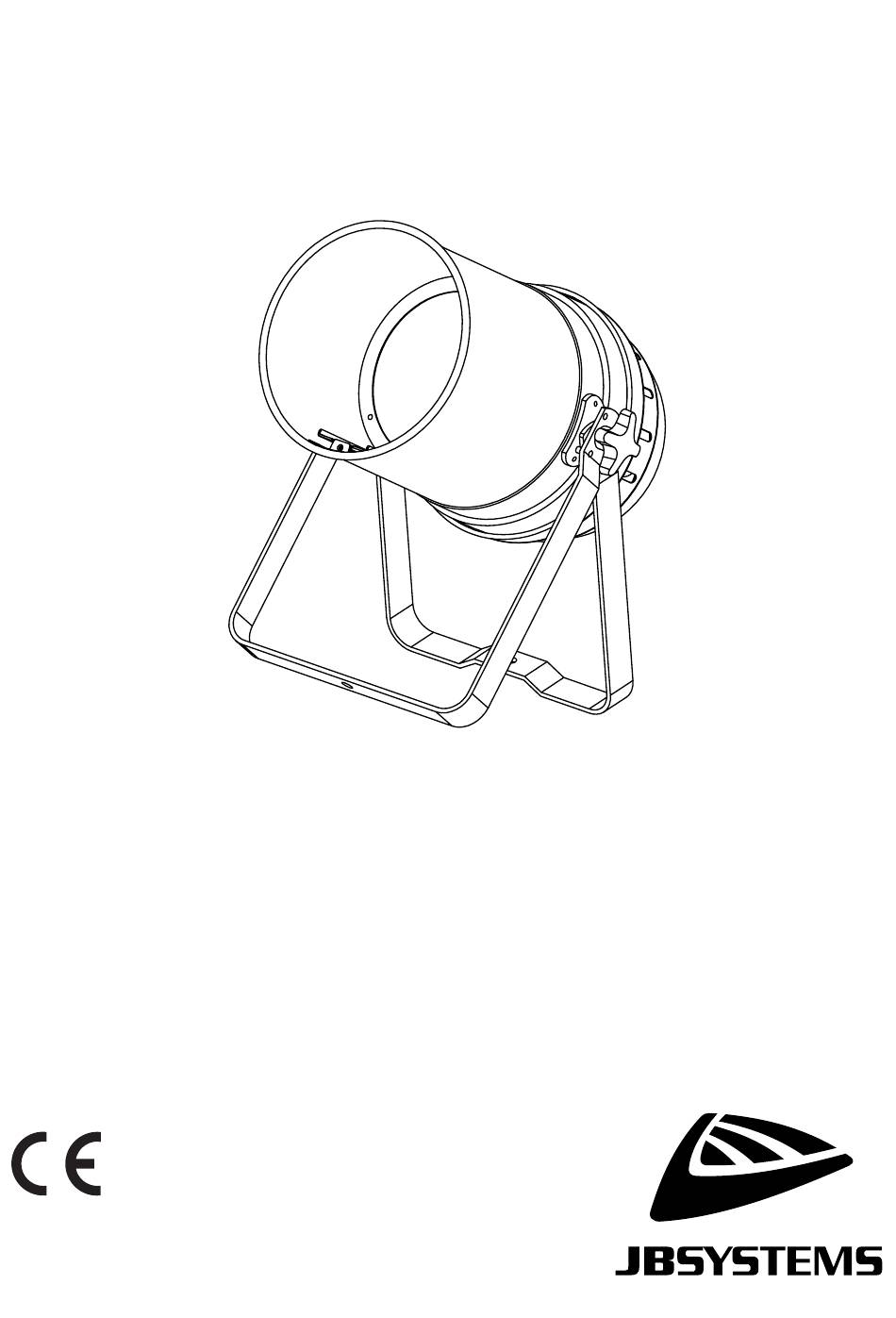

- Page 1 LED PAR64FC ZOOM Other languages can be downloaded from: WWW.JB-SYSTEMS.EU Version: 1.0...
- Page 3 ENGLISH USER MANUAL OPERATION MANUAL ® Thank you for buying this JB SYSTEMS product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES •...
- Page 4 • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. JB SYSTEMS 2/13 LED PAR64FC ZOOM ®...
- Page 5 4. POWER output: Seetronic SAC3MPB socket.Use this to connect this output with the mains input of the next LED PAR64FC ZOOM for easier linking up to 10A. 5. DOUBLE BRACKET: with a knob to fasten the unit in the desired position and a mounting hole to fix a truss clamp.
- Page 6 DMX-input is the “master”, the others are the slave units. • Make sure that all units are connected to the mains. • Refer to chapter HOW TO SETUP for more information. • Done! JB SYSTEMS 4/13 LED PAR64FC ZOOM ®...
- Page 7 • 7CH: R+G+B+L can be set separately, with separate master dim, effect & strobe channels • Once the correct option shows on the display, press the ENTER button to save it. Remark: on RDM-compatible controllers this option can also be remotely set. JB SYSTEMS 5/13 LED PAR64FC ZOOM ®...
- Page 8 • Press the ENTER button: the display shows the value (000-255) for BLUE. (use ▲/▼buttons) • Press the ENTER button: the display shows the value (000-255) for LIME. (use ▲/▼buttons) • Press the ENTER button: the display shows the value (001-099) for F (STROBE). (use ▲/▼buttons) JB SYSTEMS 6/13 LED PAR64FC ZOOM ®...
- Page 9 • Once the correct option shows on the display, press the ENTER button to save it. LED TEMP Shows the actual LED temperature. • Press the MENU button or ▲/▼buttons until the desired function is showing on the display. JB SYSTEMS 7/13 LED PAR64FC ZOOM ®...
- Page 10 Current setting in the menu Current setting in the menu Auto Lock Menu Current setting in the menu Current setting in the menu No DMX mode FREEZE Current setting in the menu Current setting in the menu JB SYSTEMS 8/13 LED PAR64FC ZOOM ®...
- Page 11 ENGLISH USER MANUAL FIRMWARE Used to show the current version of the firmware. • Press the MENU button or ▲/▼buttons until the desired function is showing on the display. JB SYSTEMS 9/13 LED PAR64FC ZOOM ®...
- Page 12 “+” and “-“ buttons. This function only works when the projector is in a static color. 10. A-button: used to set the DMX-address of the projector. 11. – Button: used to decrease the value of a selected function. JB SYSTEMS 10/13 LED PAR64FC ZOOM ®...
- Page 13 Red (0-100%) 000-255 Green (0-100%) 000-255 Blue (0-100%) 000-255 Lime (0-100%) 000-255 Master dimmer (0-100%) 000-004 Audio sensitivity: 005=low ~ 024=high 005-024 Sound control (7 colors) 025-034 Increasing speed: 035=slow ~ 255=fast 035-255 Strobe JB SYSTEMS 11/13 LED PAR64FC ZOOM ®...
- Page 14 • Clean with a soft cloth using normal glass cleaning products. • Always dry the parts carefully. Attention: We strongly recommend internal cleaning to be carried out by qualified personnel! JB SYSTEMS 12/13 LED PAR64FC ZOOM ®...
- Page 15 Size: 47 x 27 x 22cm. Weight: 3,4 kg All the information is subject to change without prior notice You can download the latest version of this user manual on our website: www.jb-systems.eu JB SYSTEMS 13/13 LED PAR64FC ZOOM ®...
