LEDs and Push Buttons
This section describes functionality of the LEDs and push buttons.

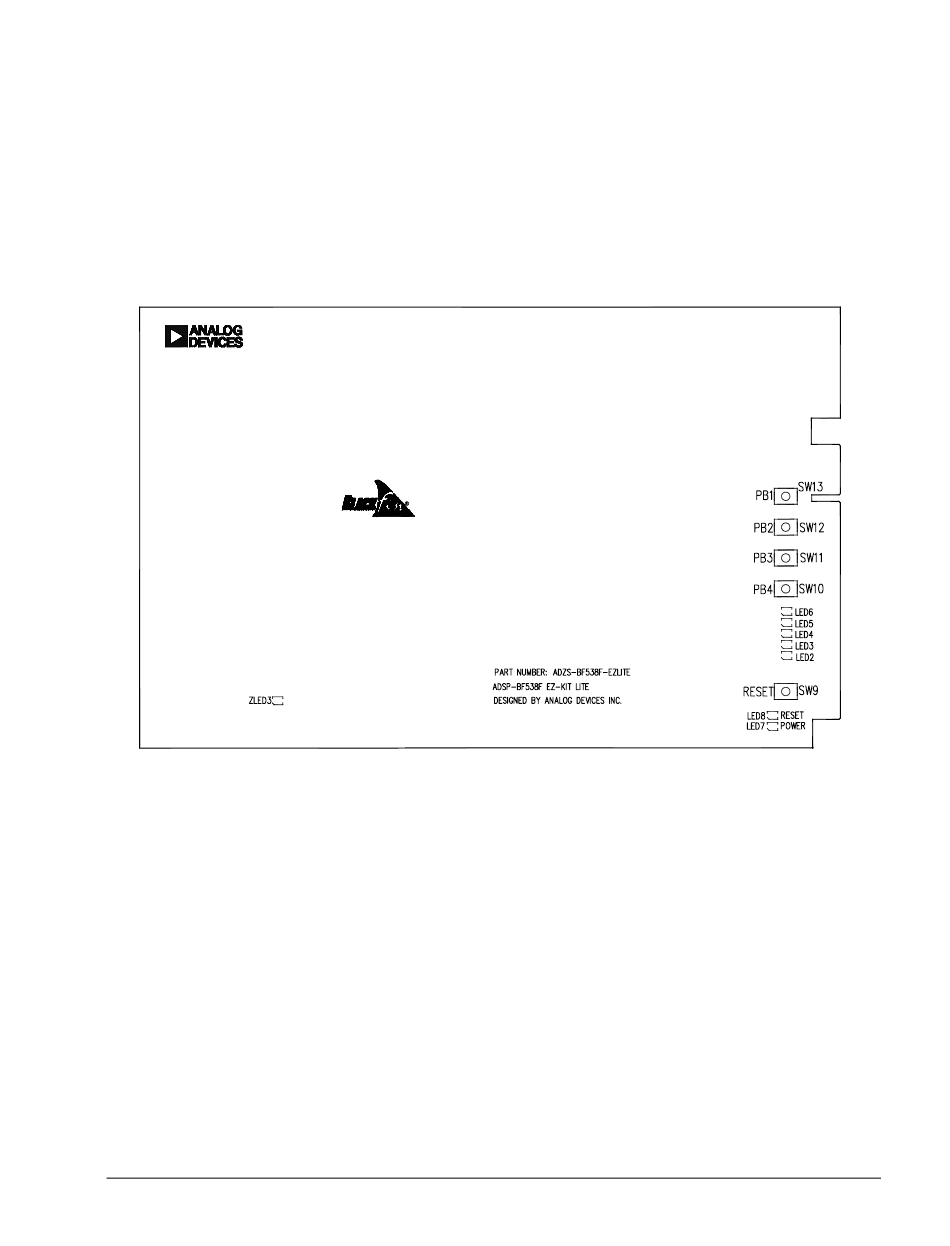

Figure 2-3
shows the locations of the LEDs and push buttons.
MONITOR
Figure 2-3. LED and Push Button Locations
Reset Push Button (SW9)
The
push button resets all of the ICs on the board. One exception is
RESET
the USB interface chip. The chip is not being reset when the push button
is pressed after the USB cable has been plugged in and communication
with the PC has been initialized correctly. After USB communication has
been initialized, the only way to reset the USB chip is by powering down
the board.
ADSP-BF538F EZ-KIT Lite Evaluation System Manual
ADSP-BF538F EZ-KIT Lite Hardware Reference
2-17
