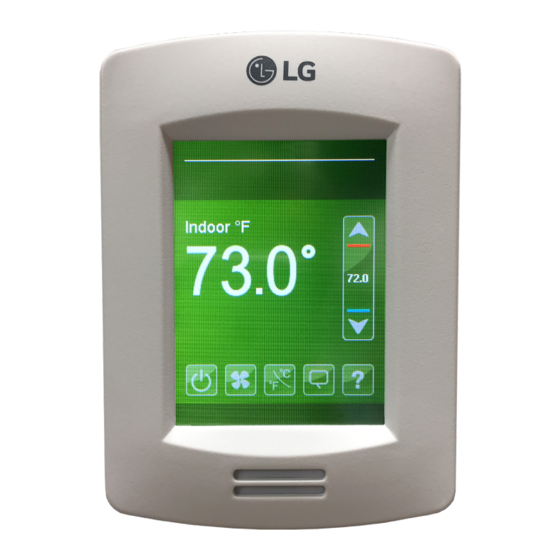

MultiSITE™ MS8000 Series Room Controllers
USER MANUAL
MS8350
Model No. VUCQMS8350
Commercial and Hotel HVAC Fan Coil Controller
MS8650
Model No. VUCQMS8650
Rooftop Unit, Heat Pump, and Indoor Air Quality Controller

Advertisement

Table of Contents
loading

Subscribe to Our Youtube Channel

Summary of Contents for LG MultiSITE MS8000 Series

  • Page 1 MultiSITE™ MS8000 Series Room Controllers USER MANUAL MS8350 Model No. VUCQMS8350 Commercial and Hotel HVAC Fan Coil Controller MS8650 Model No. VUCQMS8650 Rooftop Unit, Heat Pump, and Indoor Air Quality Controller...
  • Page 2 For continual product development, LG Electronics U.S.A., Inc., reserves the right to change specifications without notice. ©LG Electronics U.S.A., Inc. This document, as well as all reports, illustrations, data, information, and other materials are the property of LG Electronics U.S.A., Inc.
  • Page 3: Table Of Contents

    MS8650 Setpoints 1 / 2 ..............61 MS8650 Setpoints 2 / 2 ..............62 Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
  • Page 4: Safety Precautions

    This symbol indicates situations that may result in equipment or property damage accidents only. This symbol indicates an action that should not be performed. This manual provides details on configuring the LG MultiSITE MS8000 Series Room Controllers to monitor and control LG HVAC equipment (Model Numbers: VUCQMS8350 and VUCQMS8650).
  • Page 5 There is risk of equipment damage, and will void the manufacturer's will void the manufacturer's warranty. warranty. Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
  • Page 6: Standards And Certifications

    Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 7: Introduction

    Schneider Electric USA, Inc. ® Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 8: Disclaimer

    Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 9: Hmi Display And Set Up

    Fan Mode Language Selection Temperature Units Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 10 “Discover Mode” shows wireless Previous Menu ZigBee network. Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 11 LUA Scripting (Shows Only if LUA Script is Uploaded) L U A Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 12: Customized Screens

    • User help menu • User help menu Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 13: User Hmi For Commercial

    / night setback button does not show. Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 14: Other Functions / Setpoint Adjustment For Heating Mode

    Figure 6: Setpoint Adjustment for Heating Mode Display. Automatic Heating / Cooling Mode Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 15: Heating Only Configuration / Setpoint Adjustment For Cooling Mode / System Modes

    Controller only satisfies Heating demands, Cooling demands are ignored. Dehumidification is allowed. Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 16: Fan Mode Settings

    Fan Mode Setting Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 17: Customizable Color Options

    2018.04.18 12:54 PM 2018.04.18 12:54 PM Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 18: User And Integrator Screens

    PRO is a are registered trademarks of the ZigBee Alliance, Inc. ® Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 19: Network Screens

    Default Value: BACnet Choices: None, BACnet or Modbus Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 20: Zigbee Network 1 / 2

    Controller is a router. If not set to off manually the Permit join will stay On for 3 hours. Choices: On or Off Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 21: Zigbee Network 2 / 2

    PRO is a registered trademark of the ZigBee Alliance, Inc. ® Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 22: Bacnet Network Settings

    Read Only Display Readings: Online or Offline Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 23: Bacnet Instance Number

    Accept and Save Reset to Automatic Instance Addressing Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 24: Modbus Network Settings

    Default Value: Even Choices: None, Odd and Even Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 25: Wi-Fi Network 1 / 4

    Module Status Read Only Status value: Ready Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 26: Wi-Fi Network 2 / 4

    Default Value: Enabled Choices: Enabled or Disabled Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 27: Wi-Fi Network 3 / 4

    Read Only Range: 0 to 100% Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 28: Wi-Fi Network 4 / 4

    Default Value: No module must be performed. Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 29: Configuration Screens

    Choices: None, Door Dry, Override, Filter and Service. Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 30 Choices: Dual SP or Attach SP. Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 31 Range: 1 to 5°F (0.5 to 2.5°C) Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 32 Heating or Cooling. Choices: AS or AS/AD Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 33 The points are configurable in units of 0.1 Vdc. Range: 7.1 to 10.0 Vdc. Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 34 Default value: Disabled Choices: Enabled or Disabled Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 35 Choices: 10 sec or 15 min Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 36 RA = 0 to 100% = 10 to 0 Vdc Choices: DA or RA Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 37 Choices: Two (2) pipe or Four (4) pipe Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 38 Choices: Internal, Wired, WL1 to WL10 Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 39 Choices: Disabled, Enabled, Disabled no Clock and Enabled no Clock Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 40 Choices: None, Internal, WL1 to WL10 Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 41 Node type in ZigBee PRO menu returns to default value (Router). Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 42: Ms8650 Configurations 1 To 11

    Choices: None, Door Dry, Override, Filter and Service. Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 43 Setting “Mode button” to “Off-Auto” forces the “Setpoint func” parameter to “Attach SP”. Choices: Normal or Off-Auto Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 44 Default Value: Motion Choices: Motion or Schedule Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 45 Occupied Cooling and Heating setpoints. Range: 0.0 to 24.0 hours Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 46 Disabled: Dehumidification Not Authorized Choices: Enabled or Disabled Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 47 Default Value: NO Choices: NO or NC Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 48 Range: 50°F to 72°F (10°C to 22°C) Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 49 Choices: 0, 1 or 2 stages Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 50 (economizer operation) cannot maintain the cooling setpoint. Range: Off or On Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 51 Range: 0 to 20,000 CFM (±10 increments). Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 52 Setting for 2-10 Vdc Actuator 100% Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 53 ”. Range: 0 to 2,000 ppm Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 54 Range: -40°F to +30°F (-40°C to -1.0°C ) Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 55 Choices: Off or On Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 56 Choices: Disabled, Enabled, Disabled no Clock and Enabled no Clock Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 57 Choices: None, Internal, WL1 to WL10 Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 58 Node type in ZigBee PRO menu returns to default value (Router). Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 59: Setpoints Screens

    Range: 40 to 90°F (4.5 to 32.0°C) Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 60: Ms8350 Setpoints 2 / 2

    Default Value: 50%RH Range: 30 to 95%RH Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 61: Ms8650 Setpoints 1 / 2

    Range: 40 to 90°F (4.5 to 32.0°C) Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 62: Ms8650 Setpoints 2 / 2

    Default Value: 50%RH Range: 30 to 95%RH Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 63: Display Screens

    Default Value: 0 Range: -5 to +5 Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 64: Display Screen 2 / 2

    Off: Do not display % CO level Choices: Enabled or Disabled Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 65: Service View Screens

    RH sensor parameter to select RH source. Read Only Display Readings: %RH Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 66 Shows supply air temperature as measured by the sensor. Read Only Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 67 Display Readings: Motion or No Motion Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 68 Read Only Display Readings: On or Off Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 69 Terminal 24 10 V Read Only Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 70 Shows Thermistor, Binary, Voltage or Reserved Read Only Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 71 Shows the serial number of the installed CO sensor module. Read Only Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 72 VUCQMS8350-41 and its default BACnet Device ID is 83041 Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 73: Ms8650 Service View Screens 1 To 9

    Shows supply air temperature as measured by the sensor. Read Only Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 74 Econo. Demand (Supply Temperature) Display Readings: 0-100% Read Only Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 75 Display Readings: Motion or No Motion Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 76 Read Only Display Readings: On or Off Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 77 RH sensor parameter to select RH source. Read Only Display Readings: %RH Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 78 Shows Analog or Binary Read Only Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 79 Shows Thermistor, Binary, Voltage or Reserved Read Only Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 80 Shows the serial number of the installed CO sensor module. Read Only Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 81 VUCQMS8650-41 and its default BACnet Device ID is 86041. Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 82: Test Outputs Screens

    The overridden value remains even if the user exits the main screen. Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 83: Test Outputs Screen 2 / 2

    Screen 2/2 display is dependent on Control type configuration. If mode is set to Analog, analog options show. Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 84: Language Selection Screens

    Poli sh Por tu guese Disab led Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 85: Schedule Screens

    The Clock - Schedule Menu screen is directly accessible from the main set-up screen. Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 86: Clock

    Range: Monday - Sunday Read Only Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 87: Schedule

    There are three (3) separate Unoccupied parameter entries. Range: 00:00 - 24:00 Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 88: Options

    Choices: 7 days, 5+2 days or 5+1+1 Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 89: Adr Screen

    Display Readings: On or Off Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 90: Wireless Screens

    A la rm s C o n f igu ra t ion A la rm s Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 91: Ecosystem Settings

    Display Readings: 0 to 10 devices Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 92: Device Groups

    Display Readings: Yes or No Read Only Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 93: Device X

    Display Readings: None, Normal or Low Read Only Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 94 Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 95: Temperature Alarm Configuration

    Choices: 0° to 10°F (0° to 5.5°C) Default Value: 4°F (2°C) Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 96: Alarms

    Read Only Choices: On or Off Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 97: Lua Screens

    Display Readings No error, Syntax, Runtime, Memory Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 98: Lua Generic Parameters 3 / 3

    The value(s) of this parameter depends on what is assigned to it using the LUA script Default Value: 0 function. Due to our policy of continuous product innovation, some specifications may change without notification. ©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
  • Page 100 LG Electronics, U.S.A., Inc. Air Conditioning Technologies 4300 North Point Parkway Alpharetta, Georgia 30022 www.lghvac.com New Issue: UM_MultiSITE_RoomControllers_MS8000Series_10_19...
