ETC Installation Guide
D1 & D2 Series Drivers
Installing One-Cell Yoke-Mounted Luminaires
1. Attach a C-clamp or other mounting hardware (not provided) to the yoke of the luminaire.
2. Attach the luminaire to a pipe or other approved mounting device.
Prepare to Install the D1 or D2 Series Driver
The D1 and D2 Series drivers are compact, convection-cooled LED drivers with RJ45 connections for
local DMX and wireless capability for the ArcMesh protocol. Each driver has a DMX IN and THRU
option, using two separate connectors. The D1 and D1 HO drivers can control a single luminaire
each. The D2 driver can control two ArcSystem Pro One-Cell Micro luminaires. Up to 32 drivers can
be installed on one hard-wired line of DMX.

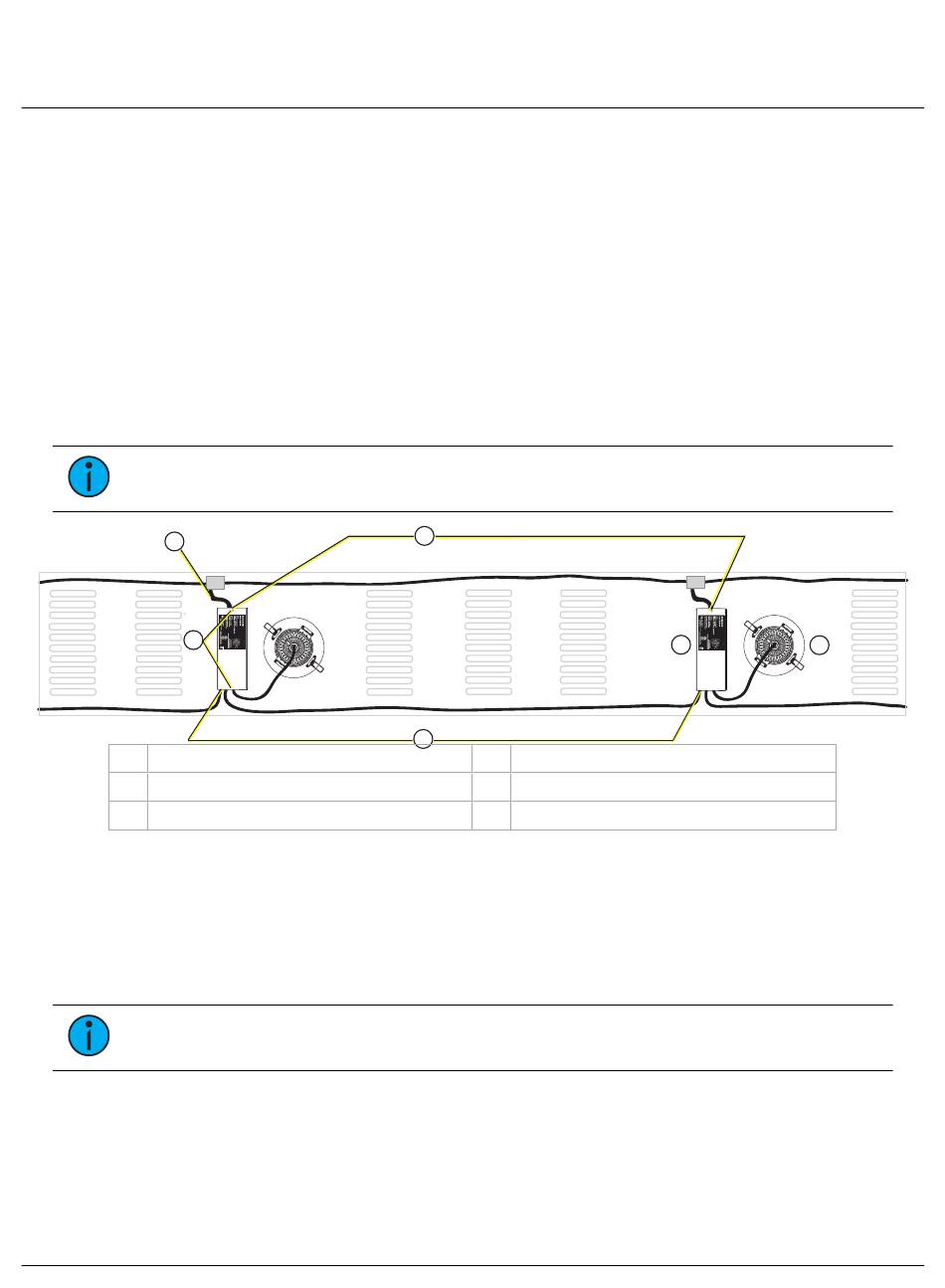

The following illustration shows an example of a linear ceiling installation with one luminaire for
each D1 Series driver. The cable between an ArcSystem Pro One-Cell Series luminaire and its driver
is approximately 1 m (40 in) long.
Note:
box as shown below. Follow all applicable local and national electrical codes.
C
D
A Power connections
B DMX In and Thru connections
C Flexible conduit
Supplies
The following supplies are required, but not provided:
flexible conduit and conduit fittings, as needed
•
romex or nonmetallic screw-clamp style conduit connectors for outputs
•
Phillips screwdriver
•
four #10 screws and other mounting hardware as needed
•
Note:
conduit hardware, and all cable required for installation.
D1 & D2 Series Drivers
If you want to daisy chain power wiring, it must be connected through a junction
Mounting hardware and installation location must support the weight of the driver,
A
B
D Screw mounting locations
E D1 or D1 HO driver
F Luminaire
Page 11 of 25
E F
