Summary of Contents for ETC Desire Fresnel

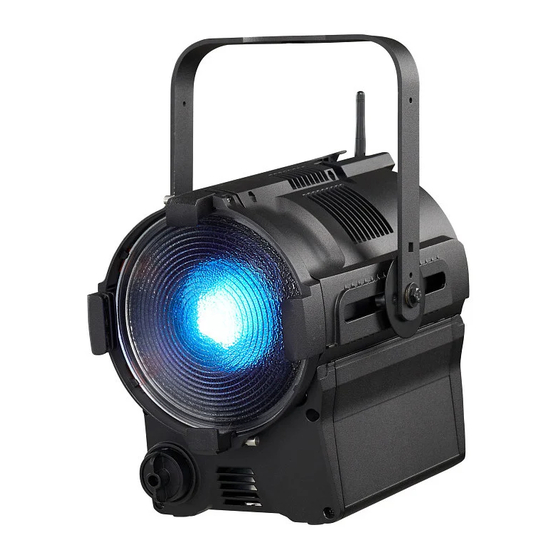

- Page 1 Desire Fresnel User Manual Version 1.0.0 Part Number: 7419M1200-1.0.0 Rev: A Released: 2021-04...
- Page 2 To view a list of ETC trademarks and patents, go to etcconnect.com/ip. All other trademarks, both marked and not marked, are the property of their respective owners. ETC intends this document, whether printed or electronic, to be provided in its entirety.
-
Page 3: Table Of Contents
Table of Contents Introduction Help from ETC Technical Services Safety Overview Fixture User Interface Set Up and Focus the Fixture Mount the Fixture Add Accessories Connect Power and Data Focus the Fixture Use Fixture in DMX Mode Set DMX Address Set DMX Mode Set DMX Loss Behavior Use Fixture in Stand-alone Mode... - Page 4 Export Fixture Data for Troubleshooting Restore Default Settings Update Firmware Backup and Restore the Fixture Configuration Clean the Lens Specifications and Reference Environment Dimensions and Weight Electrical RDM Parameters Fixture Compliance Wireless Radio Compliance Licensed Software Desire Fresnel User Manual...
-
Page 5: Introduction
With a 13–55 degree zoom and expert color mixing, you get the feature set and brightness you need. With the addition of deep red LEDs, the Lustr X8 array pushes the boundaries of color rendering possibilities. Desire Fresnel is made in the USA and backed by a 24/7/365 phone support guarantee. -
Page 6: Help From Etc Technical Services
Help from ETC Technical Services If you are having difficulties and your problem is not addressed by this document, try the ETC support website at support.etcconnect.com or the main ETC website at etcconnect.com. If none of these resources are sufficient, contact ETC Technical Services directly at one of the offices identified below. -
Page 7: Safety
WARNING: RISK OF ELECTRIC SHOCK! The light source in this luminaire is not user-replaceable, and must be replaced only by a qualified technician. Contact ETC Customer Support for assistance. AVERTISSEMENT : RISQUE DE DÉCHARGE ÉLÉCTRIQUE! La source lumineuse de ce projecteur n'est pas remplaçable par l'utilisateur et ne doit être remplacée seulement par un technicien qualifié. - Page 8 Ce produit ne doit pas être jeté avec les déchets waste but must be sent to separate collection facilities ménagers mais doit être déposé dans une collecte de for recovery and recycling. déchets électroniques ou dans un point de collecte. Desire Fresnel User Manual...
-
Page 9: Overview
Overview Fixture Accessory holder: Insert accessories into the two available slots from either side of the holder, and then lock the holder. See Add Accessories on page 7 Yoke tilt-lock: Tilt the fixture as needed, and then turn the tilt-lock clockwise to lock the position. -
Page 10: User Interface
USB port: Use for updating firmware, saving and loading fixture configuration settings, or saving error logs via a flash drive. See Troubleshooting and Maintenance on page 20 UI lock: Set this switch to lock the UI. This prevents inadvertent changes to the UI. See Lock the Display on page 19 Desire Fresnel User Manual... -
Page 11: Set Up And Focus The Fixture
Set Up and Focus the Fixture WARNING: Note the following safety warnings before use: Only use mounting hardware that is rated for the total weight of the • fixture and accessories. In addition to primary suspension, attach a safety cable (or other •... -
Page 12: Connect Power And Data
AC power (100–240 VAC, 50/60 Hz) on a non-dimmable circuit. Focus the Fixture 1. Apply power to the fixture, and wait until the fixture has booted up (the ETC splash screen displays during boot up). 2. Press any encoder to "wake" the display. -
Page 13: Use Fixture In Dmx Mode
Use Fixture in DMX Mode After you connect power and data to the fixture and provide DMX, press the Function button ( use the Intensity encoder to navigate to DMX Mode, and then press the Intensity encoder to select it. In the DMX screen, you can set the DMX address, DMX mode, and DMX loss behavior. Note: You can also set these values using RDM, or by pressing the Menu button ( turning the Intensity encoder to navigate to DMX Settings, and then pressing the... -
Page 14: Set Dmx Address
DMX Control Channels Parameter DMX Value Description Comments 3200 K 1–165 1900–6000 K CCT values increase by 25 for each DMX value (1 = 1900 K, 2 = 1925 K, etc.). 166–254 6050–10,450 K CCT values increase by 50 for each DMX value (166 = 6050 K, 167 = 6100 K, etc.). 5600 K Desire Fresnel User Manual... - Page 15 Parameter DMX Value Description Comments Curve 0–9 Incandescent 10–19 Linear 20–29 Incandescent Red Shift In Direct Mode, the fixture uses Incandescent instead of Incandescent Red Shift. 30–39 Linear Red Shift In Direct Mode, the fixture uses Linear instead of Linear Red Shift.
-
Page 16: Set Dmx Loss Behavior
HLL: Hold last look until you make local changes. This is the default setting. • Preset 12: Two-second fade from last look to Preset 12. • Desire Fresnel User Manual... -
Page 17: Use Fixture In Stand-Alone Mode
Press the Intensity encoder to toggle between the current intensity and 0%. If the fixture is connected to other Desire Fresnel fixtures that are in the same stand-alone mode, the connected fixtures will play the same preset or effect. -
Page 18: Studio Mode
The display shows a three-second countdown before re-recording the preset. Note: The CCT, Tint, and Tune values match the values that are available when the DMX mode is set to Studio. See DMX Control Channels on page 10. Desire Fresnel User Manual... -
Page 19: Color Mode
Color Mode 1. Press the Function button ( ), use the Intensity encoder to navigate to Color Mode, and then press the Intensity encoder to select it. Turn to adjust intensity, or press to toggle between current intensity and 0. Color Color I: 97%... -
Page 20: Effects Mode
Push the sequence to connected fixtures: Press the Menu button ( ), and then use the • Intensity encoder to navigate through the menu: Local Settings > Push Effects. When the screen prompts you to confirm, press the green encoder (for the OK icon ) to continue. Desire Fresnel User Manual... -
Page 21: Preset Mode
Preset Mode 1. Press the Function button ( ), use the Intensity encoder to navigate to Preset Mode, and then press the Intensity encoder to select it. The background approximates Turn an encoder to modify the the preset color. value in the matching field. Preset Edit Preset Color 4 100%... -
Page 22: Set Up Wireless Control
(You must be within Bluetooth range of the Multiverse transmitter or gateway in order to use the app in this mode.) Visit etcconnect.com/Apps more information about the Set Light app. Desire Fresnel User Manual... -
Page 23: Control And Customize The Display
Control and Customize the Display UI Lock Lock the Display Set this switch to lock the UI and prevent any changes to the fixture setup. The display indicates when the UI is locked. Address Mode 3 Ch RGB DMX Loss HLL 2 Min Adjust the Display Settings 1/3 Red... -
Page 24: Troubleshooting And Maintenance
Troubleshooting and Maintenance Troubleshooting Checklist If you cannot find the resources that you need in this document, contact ETC Technical Services (see Help from ETC Technical Services on page 2 What I'm Seeing What Might Be Wrong What To Try Color on the fixture does... -
Page 25: Adjust The Pulse Width Modulation (Pwm)
Press the blue encoder to select all emitter colors, or turn the encoder to select an • individual emitter color. (De = Deep red, Re = Red, etc.) Press the green encoder to toggle between off and full (FL) for the selected emitters, •... -
Page 26: View Diagnostic Data
View Diagnostic Data As part of troubleshooting any issues with a fixture, ETC Technical Services may ask that you view diagnostic data on the fixture. 1. Press the Menu button ( ), turn the Intensity encoder to navigate to Diagnostics, and then press the Intensity encoder to select it. -
Page 27: Restore Default Settings
Copying the files to the fixture: A progress meter displays as the files are copied to the fixture. b. Verifying the files: The ETC logo displays on the top half of the screen as the fixture verifies the files. You can safely remove the USB drive at this time. -
Page 28: Backup And Restore The Fixture Configuration
Clean the Lens Clean the lens using a clean, micro-fiber cloth. You can use isopropyl alcohol on the cloth, but do not spray the cleaning solution directly onto the lens or into the interior of the fixture. Desire Fresnel User Manual... -
Page 29: Specifications And Reference
Specifications and Reference For full product specifications, see the Desire Fresnel datasheet at etcconnect.com. Environment The Desire Fresnel operates in ambient temperatures of 0°C–40°C (32°F–104°F) and is rated IP20 (for use in dry locations only). Fixture temperature information: Maximum recommended ambient operating temperature: Ta=40°C (104°F) •... -
Page 30: Fixture Compliance
Fixture Compliance The Desire Fresnel is cETLus Listed and CE Compliant. Wireless Radio Compliance Contains: FCC ID VU65995, IC ID 7480A-5995 FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. - Page 31 Specifications and Reference...
- Page 32 | Support support.etcconnect.com | Contact etcconnect.com/contactETC © 2021 Electronic Theatre Controls, Inc. | Trademark and patent info: etcconnect.com/ip Product information and specifications subject to change. ETC intends this document to be provided in its entirety. 7419M1200-1.0.0 Rev A Released 2021-04...
