Functional Check

Warning
DEFAULT SETUP
button
ON/OFF
button
PROBE COMP
CH 1
TPS2000 Series Digital Storage Oscilloscopes Service Manual

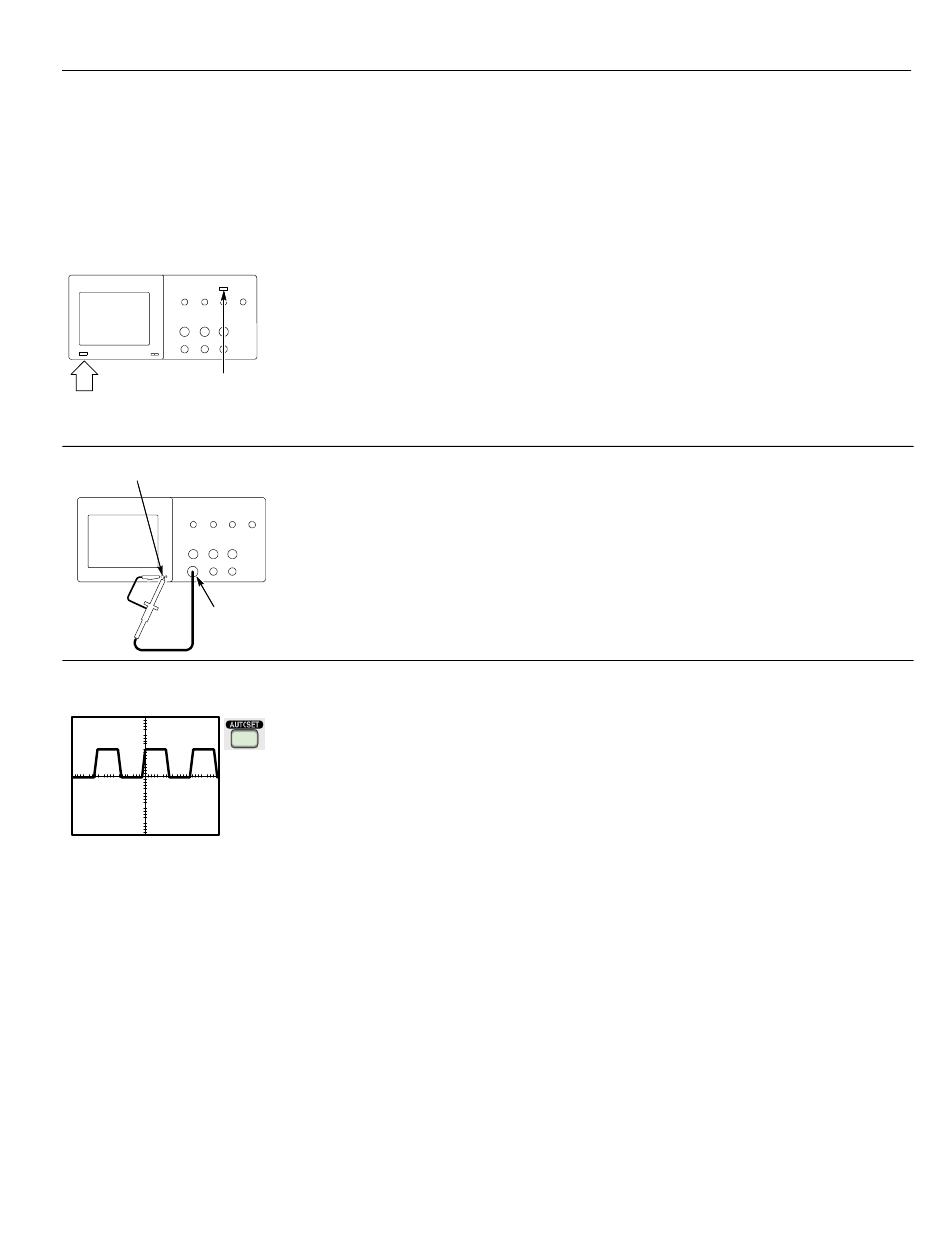

Perform this quick functional check to verify that your oscilloscope is operating
correctly.
1.
Power on the oscilloscope.
Read the floating measurements warning; then push OK. Push the DEFAULT
SETUP button. The default Voltage Probe Attenuation option is 10X.
2.
Set the switch to 10X on the P2200 probe and connect the probe to channel 1 on
the oscilloscope . To do this, align the slot in the probe connector with the key
on the CH1 BNC, push to connect, and twist to the right to lock the probe in
place.
Connect the probe tip and reference lead to the PROBE COMP terminals.
Push the AUTOSET button. Within a few seconds, you should see a square
3.
wave in the display (approximately 5 V at 1 kHz peak-to-peak).
Push the CH 1 MENU button twice to remove channel 1, push the CH 2 MENU
button to display channel 2, repeat steps 2 and 3 above. For 4-channel models,
repeat for CH 3 and CH 4.
