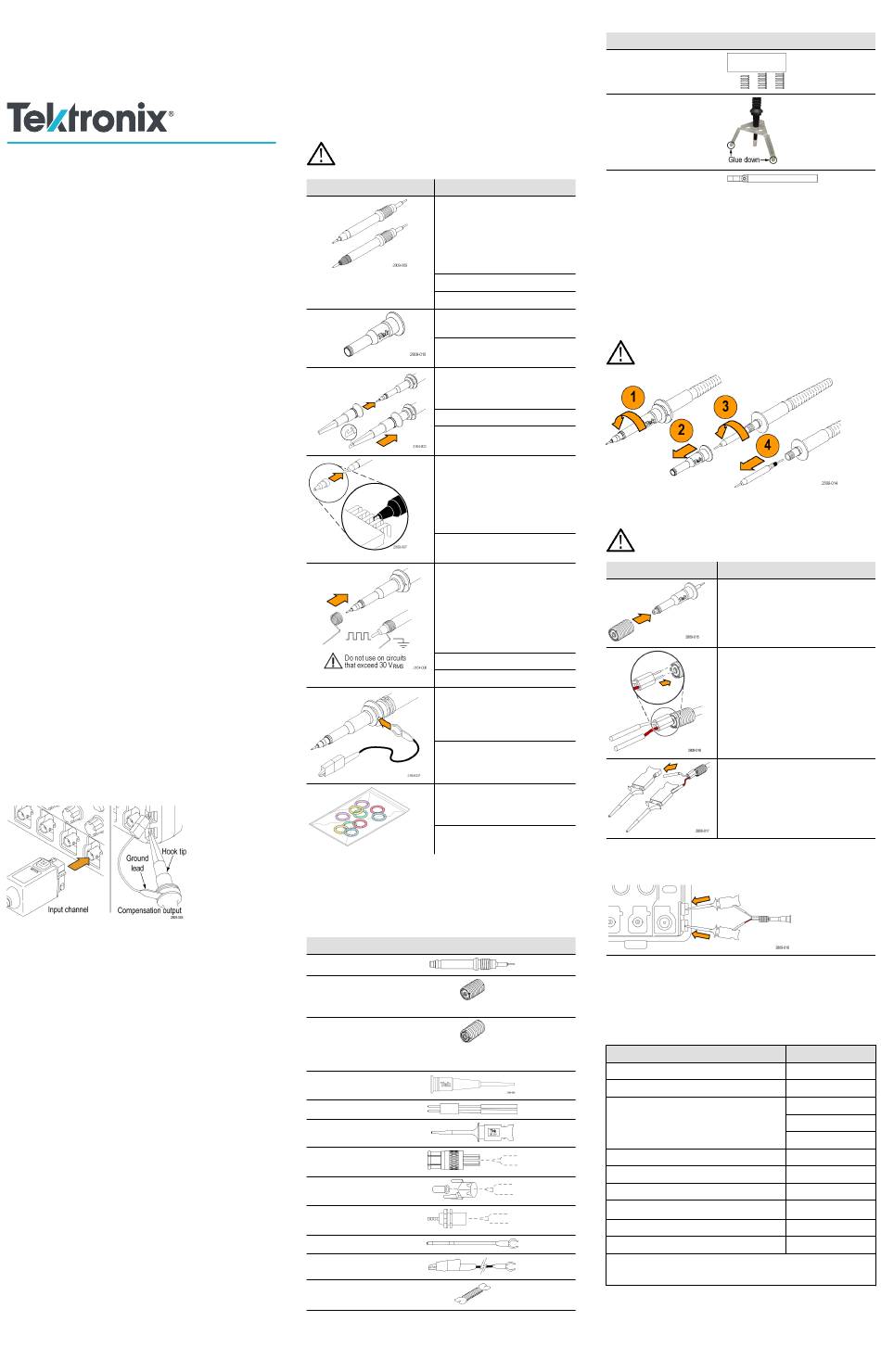

Tektronix TPP0502 Instructions

TPP0502
500 MHz 2X Passive Probe
Instructions
*P071288305*
071-2883-05 December 2024
Operating information
The TPP0502 2X Passive Probe is a high impedance probe with
2X attenuation that is designed for use with Tektronix FlexChannel™
and MDO3000, MDO/MSO/DPO4000B, MSO/DPO5000 series ground-
referenced oscilloscopes.
Connect the probe as shown in the illustrations below.
Compensating the probe
You should compensate the probe after you attach it to an oscilloscope
for the first time, or after you have changed the probe tip cartridge.
1. Connect the probe to an oscilloscope channel.
2. Connect the probe tip and ground to the probe compensation
terminals on the oscilloscope.
When using the MMCX tip (206-0666-xx), the following part numbers
are required to connect the tip to the Probe Comp connections:
131-9717-xx (1), 196-3434-xx (1), and 206-0569-xx (2). See
Connecting the MMCX tip to the oscilloscope Probe Comp.
3. On FlexChannel™ instruments:
a. Double tap the Channel Badge for the connected probe.
b. Select the Probe Setup.
c. Select Compensate Probe.
d. Select Compensate Probe in the pop-up window.
4. On MSO/DPO5000 instruments:
a. Select Vertical > Probe Cal....
b. Select the tab of the channel for the connected probe.
c. In the Calibration section, click Calibrate Probe.
5. On MDO3000 and MDO/MSO/DPO4000B instruments:
a. Press the Channel Menu front panel button for the channel that
you connected the probe to.
b. Push the More button until Probe Setup is selected.
c. Push the Calibrate Probe button and follow the on-screen
instructions.
If the probe compensation fails, verify that the signal and ground
connections are secure at the Probe Comp connections on the
oscilloscope. Also check that the ground connection is secure at the
probe head, the rigid, MMCX, or pogo tip is secured tightly in the probe
head, and the hook tip is securely connected to the tip.
Standard accessories
WARNING: To avoid electric shock when using the probe or
accessories, keep fingers behind the finger guard of probe
body and accessories.
Item Description
Probe tips – pogo (white) and
rigid (gray): The white pogo tip is
pre-installed on the probe, and is
spring-loaded for compliant testing of
circuit boards. Reorder Tektronix part
numbers below:
206-0641-XX (rigid tip)
206-0642-XX (pogo tip)
Insulator sleeve: Remove this
sleeve to replace the probe tips.
Reorder Tektronix part number:
342-1194-XX
Hook tip: Press the hook tip onto the
probe tip and then clamp the hook
onto the circuit.
Rating: 300 V CAT II
Reorder Tektronix part number:
013-0362-XX
Universal IC cap: Use this cap
to prevent shorting the probe tip
between IC pins. Snap the cap onto
the probe tip, and then spin the cap
to expose the probe tip toward the IC
lead.
Reorder Tektronix part number:
013-0366-XX
Ground springs: To limit aberrations
on high frequency signals caused
by ground path inductance,bend
the spring to reach nearby ground
connections (<0.75 in, long; <0.25
in, short). Reorder Tektronix part
numbers:
016-2028-XX (long, 2 ea.)
016-2034-XX (short, 2 ea.)
Ground lead, with alligator clip:
Secure the lead to the probe head
ground and then to your circuit
ground.
Reorder Tektronix part number
196-3521-XX
Color bands: Use these bands to
identify the oscilloscope channel at
the probe head.
Reorder Tektronix part number
016-0633-XX (5 pairs)
Optional accessories
The accessories shown below are available for the probes and are rated
≤30 V unless indicated otherwise.
Description
MMCX probe tip (gold)
MMCX to 0.1-inch (2.54 mm)
square pin adapter (blue),
0.025-inch (0.635 mm) sq. pins
MMCX to 0.062 inch (1.57
mm) square pin adapter
(white), 0.016 - 0.018 inch (0.4
- 0.46 mm) sq. pins
Micro hook tip, rating 300 V
CAT II
Electrical Y-Lead
MicroCKT test tip
BNC to tip adapter,
unterminated
Circuit board test point/PCB
adapter
Chassis-Mount Probe Test
Jack
6" clip-on ground lead
12" alligator ground lead
Wire, spool, 32 AWG
Table continued...
Description
DUT Interface pin kit with (qty.
20) 0.018 inch (0.46 mm)
round solder-in pins
Probe tip tripod support with
living hinge, 2 each (pictured
with the probe tip and adapter
attached)
Solder aid for 0.062-inch (1.57
mm) pitch square pins, 0.016 -
0.018-inch (0.4 - 0.46 mm) sq.
pins
Interchanging the probe tip
For optimal performance, do a probe compensation after the tip has been
replaced.
Only use tips with the light red-colored tail section for the TPP0502
probe; other tips will degrade performance.
WARNING: To reduce the risk of shock, disconnect the probe
before changing the probe tips.
Connecting the MMCX tip to the Probe Comp
WARNING: To avoid electric shock, disconnect the probe
before connecting accessories.
Item
Connect the MicroCKT test tips to Probe Comp terminals: Attach
the two MicoCKT test tips to the Probe Comp terminals on the
oscilloscope front panel.
Part number
206-0666-XX
MMCX tip, adapter, and Y-lead is limited to 30 V
OVT <500 V .
pk
131-9717-XX
131-9677-XX
Specifications
Characteristic
Bandwidth (–3 dB)
013-0363-XX
System rise time (typical)
System input capacitance
196-3434-XX
206-0569-XX
013-0367-XX
System attenuation accuracy
System input resistance @DC
016-2016-XX
Propagation delay
Maximum input voltage
131-4210-XX
Cable length
196-3198-XX
Weight (includes accessories and packaging)
196-3512-XX MMCX tip, adapter, and Y-lead is limited to 30 V
OVT <500 V .
pk
020-3045-XX
Part number
020-3169-XX
352-1170-XX
003-1946-XX
Description
Connect the MMCX tip to adapter: The
MMCX adapter (131-9717-xx) snaps onto
the MMCX tip.
Connect the Y–lead to MMCX adapter:
Push the Y–lead (196-3434-xx) adapter
into the MMCX adapter until it is seated.
The signal input (red) connects to the
center of the MMCX adapter.
Connect the MicroCKT test tips to Y-
lead: Push the Y-lead into the handles of
the MicroCKT test tips (206-0569-xx).
, 42 V , 60 V , and
rms pk DC
Description
500 MHz
<700 ps
Rigid tip: 12.7 pF
Pogo pin tip: 13.6 pF
MMCX tip: 13.0 pF
2:1 ±2.2%
2 MΩ ±2%
~5.7 ns
300 V CAT II
RMS
1.3 m
<454 gm (1.0 lb)
, 42 V , 60 V , and
rms pk DC
