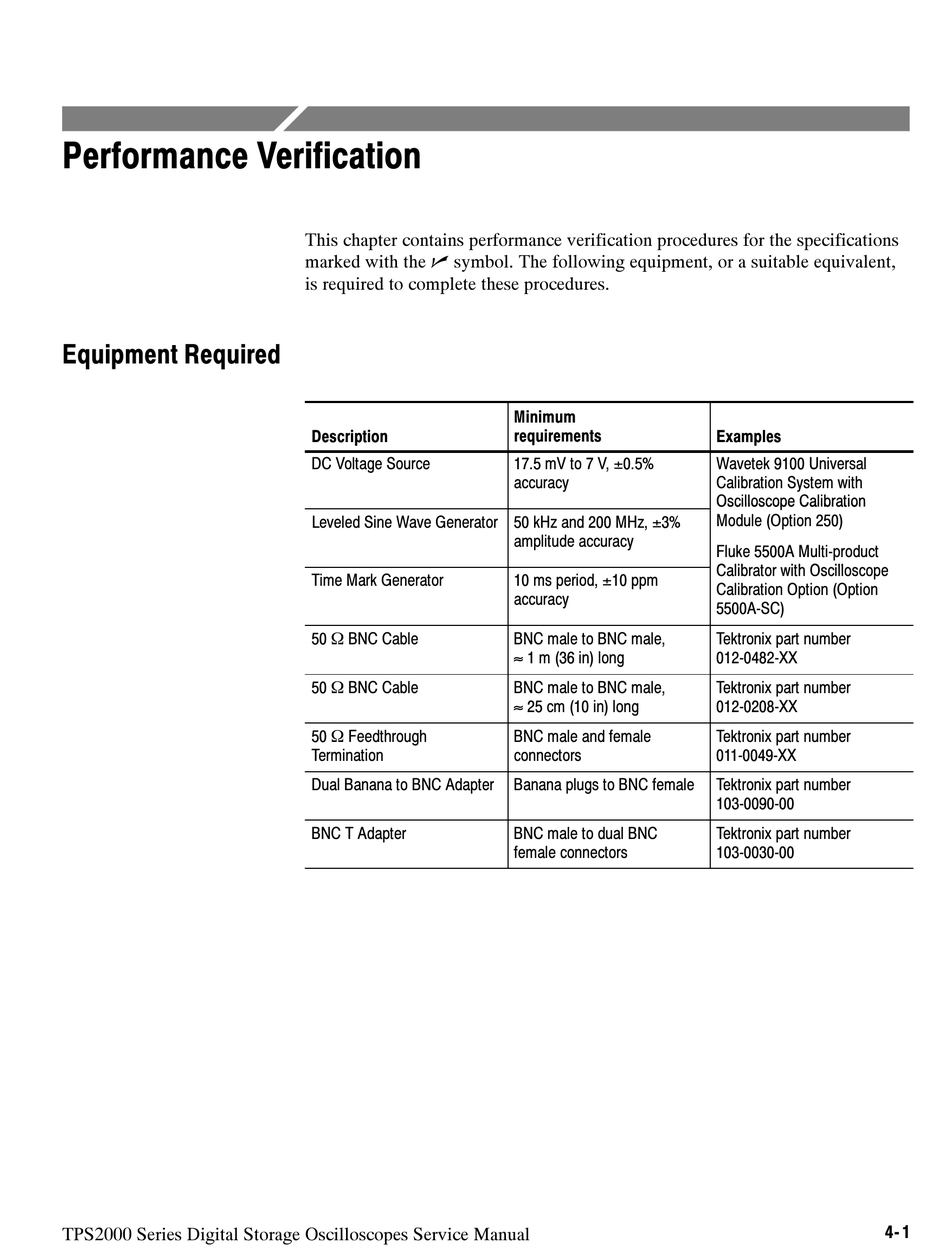

Performance Verification

Equipment Required

TPS2000 Series Digital Storage Oscilloscopes Service Manual
This chapter contains performance verification procedures for the specifications
marked with the n symbol. The following equipment, or a suitable equivalent,
is required to complete these procedures.
Description
DC Voltage Source
Leveled Sine Wave Generator 50 kHz and 200 MHz, ±3%
Time Mark Generator
50 Ω BNC Cable
50 Ω BNC Cable
50 Ω Feedthrough
Termination
Dual Banana to BNC Adapter
BNC T Adapter
Minimum
requirements
17.5 mV to 7 V, ±0.5%
accuracy
amplitude accuracy
10 ms period, ±10 ppm
accuracy
BNC male to BNC male,
≈ 1 m (36 in) long
BNC male to BNC male,
≈ 25 cm (10 in) long
BNC male and female
connectors
Banana plugs to BNC female
BNC male to dual BNC
female connectors
Examples
Wavetek 9100 Universal
Calibration System with
Oscilloscope Calibration Oscilloscope Calibration
Module (Option 250)
Fluke 5500A Multi-product
Calibrator with Oscilloscope C lib t ith O ill
Calibration Option (Option
5500A-SC)
Tektronix part number
012-0482-XX
Tektronix part number
012-0208-XX
Tektronix part number
011-0049-XX
Tektronix part number
103-0090-00
Tektronix part number
103-0030-00
4- 1
