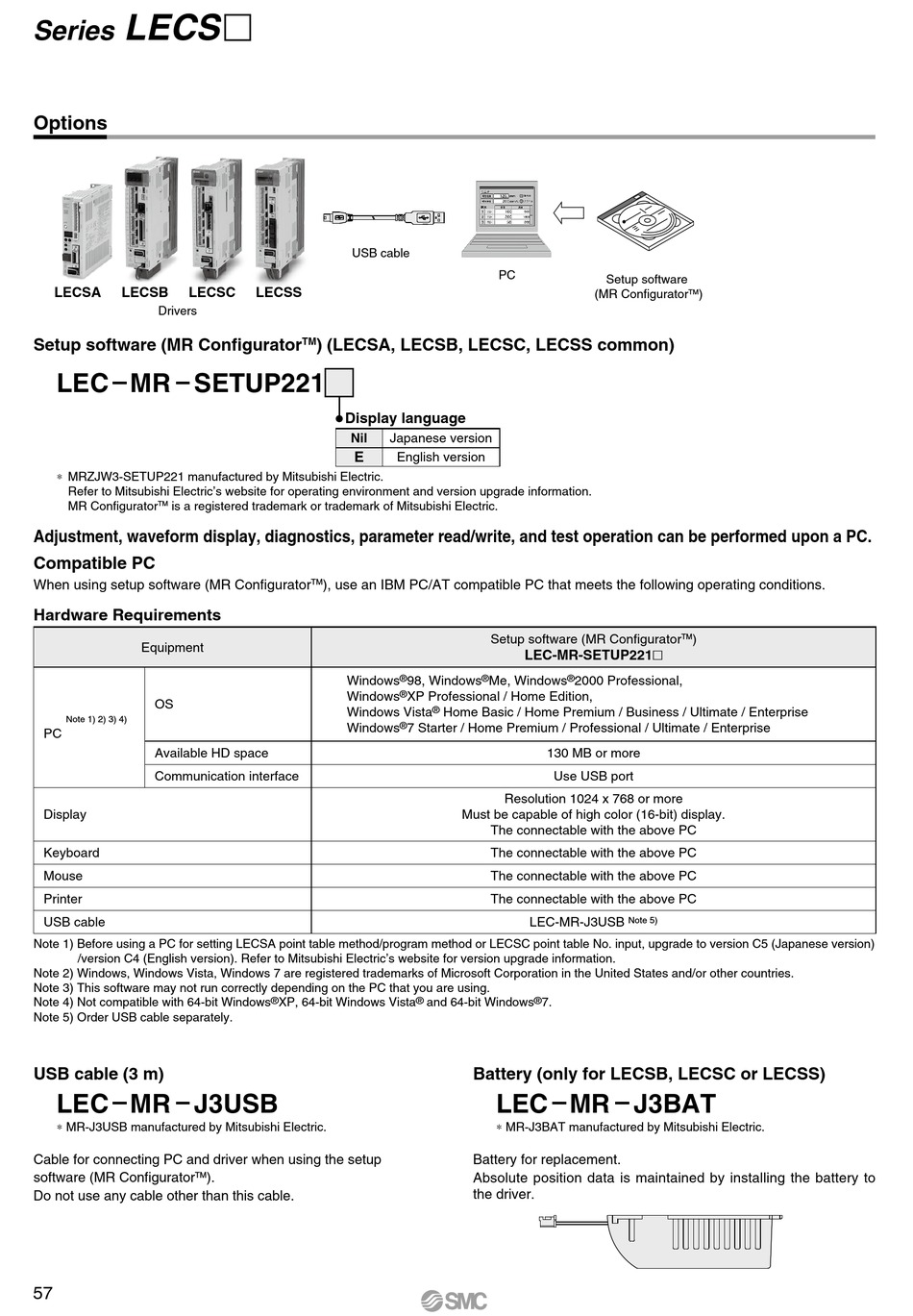

SMC Networks LEJS Series Instructions Manual page 60

LECS 
Series
Options
LECSA LECSB LECSC
Drivers
Setup software (MR Configurator
LEC MR SETUP221
* MRZJW3-SETUP221 manufactured by Mitsubishi Electric.
Refer to Mitsubishi Electric's website for operating environment and version upgrade information.
MR Configurator is a registered trademark or trademark of Mitsubishi Electric.
TM
Adjustment, waveform display, diagnostics, parameter read/write, and test operation can be performed upon a PC.
Compatible PC
When using setup software (MR Configurator
Hardware Requirements
Equipment
OS
Note 1) 2) 3) 4)
PC
Available HD space
Communication interface
Display
Keyboard
Mouse
Printer
USB cable
Note 1) Before using a PC for setting LECSA point table method/program method or LECSC point table No. input, upgrade to version C5 (Japanese version)
/version C4 (English version). Refer to Mitsubishi Electric's website for version upgrade information.
Note 2) Windows, Windows Vista, Windows 7 are registered trademarks of Microsoft Corporation in the United States and/or other countries.
Note 3) This software may not run correctly depending on the PC that you are using.
Note 4) Not compatible with 64-bit Windows
Note 5) Order USB cable separately.
USB cable (3 m)
LEC MR J3USB
* MR-J3USB manufactured by Mitsubishi Electric.
Cable for connecting PC and driver when using the setup
software (MR Configurator
TM
Do not use any cable other than this cable.
57
USB cable
LECSS
) (LECSA, LECSB, LECSC, LECSS common)
TM
Display language
Nil
E
), use an IBM PC/AT compatible PC that meets the following operating conditions.
TM
Windows
Windows
Windows Vista
Windows
®
XP, 64-bit Windows Vista
).
PC
Japanese version
English version
Setup software (MR Configurator
LEC-MR-SETUP221
® 98, Windows ® Me, Windows
®
XP Professional / Home Edition,
® Home Basic / Home Premium / Business / Ultimate / Enterprise
® 7 Starter / Home Premium / Professional / Ultimate / Enterprise
130 MB or more
Use USB port
Resolution 1024 x 768 or more
Must be capable of high color (16-bit) display.
The connectable with the above PC
The connectable with the above PC
The connectable with the above PC
The connectable with the above PC
LEC-MR-J3USB
® ®
and 64-bit Windows 7.
Battery (only for LECSB, LECSC or LECSS)
LEC MR J3BAT
* MR-J3BAT manufactured by Mitsubishi Electric.
Battery for replacement.
Absolute position data is maintained by installing the battery to
the driver.
Setup software
(MR Configurator )
TM
)
TM

® 2000 Professional,
Note 5)
