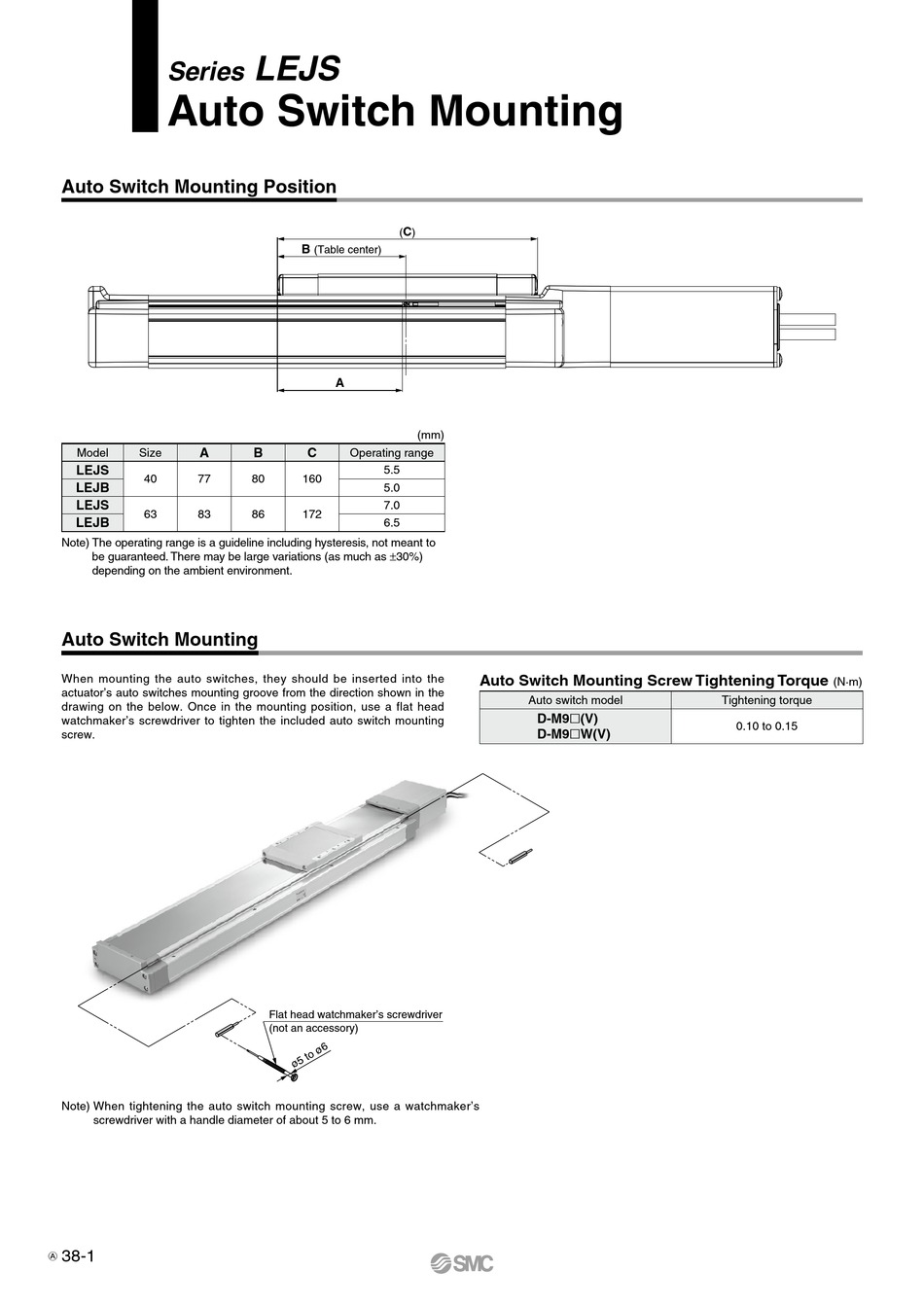

SMC Networks LEJS Series Instructions Manual page 40

Series
Auto Switch Mounting
Auto Switch Mounting Position
A
Model Size
LEJS
40 77
LEJB
LEJS
63 83
LEJB
Note) The operating range is a guideline including hysteresis, not meant to
be guaranteed. There may be large variations (as much as ±30%)
depending on the ambient environment.
Auto Switch Mounting
When mounting the auto switches, they should be inserted into the
actuator's auto switches mounting groove from the direction shown in the
drawing on the below. Once in the mounting position, use a flat head
watchmaker's screwdriver to tighten the included auto switch mounting
screw.
Note) When tightening the auto switch mounting screw, use a watchmaker's
screwdriver with a handle diameter of about 5 to 6 mm.
38-1
A
LEJS
C
( )
B
(Table center)
A
(mm)
B C
Operating range
5.5
80 160
5.0
7.0
86 172
6.5
Flat head watchmaker's screwdriver
(not an accessory)
Auto Switch Mounting Screw Tightening Torque
Auto switch model
D-M9l(V)
D-M9lW(V)
(N·m)
Tightening torque
0.10 to 0.15
