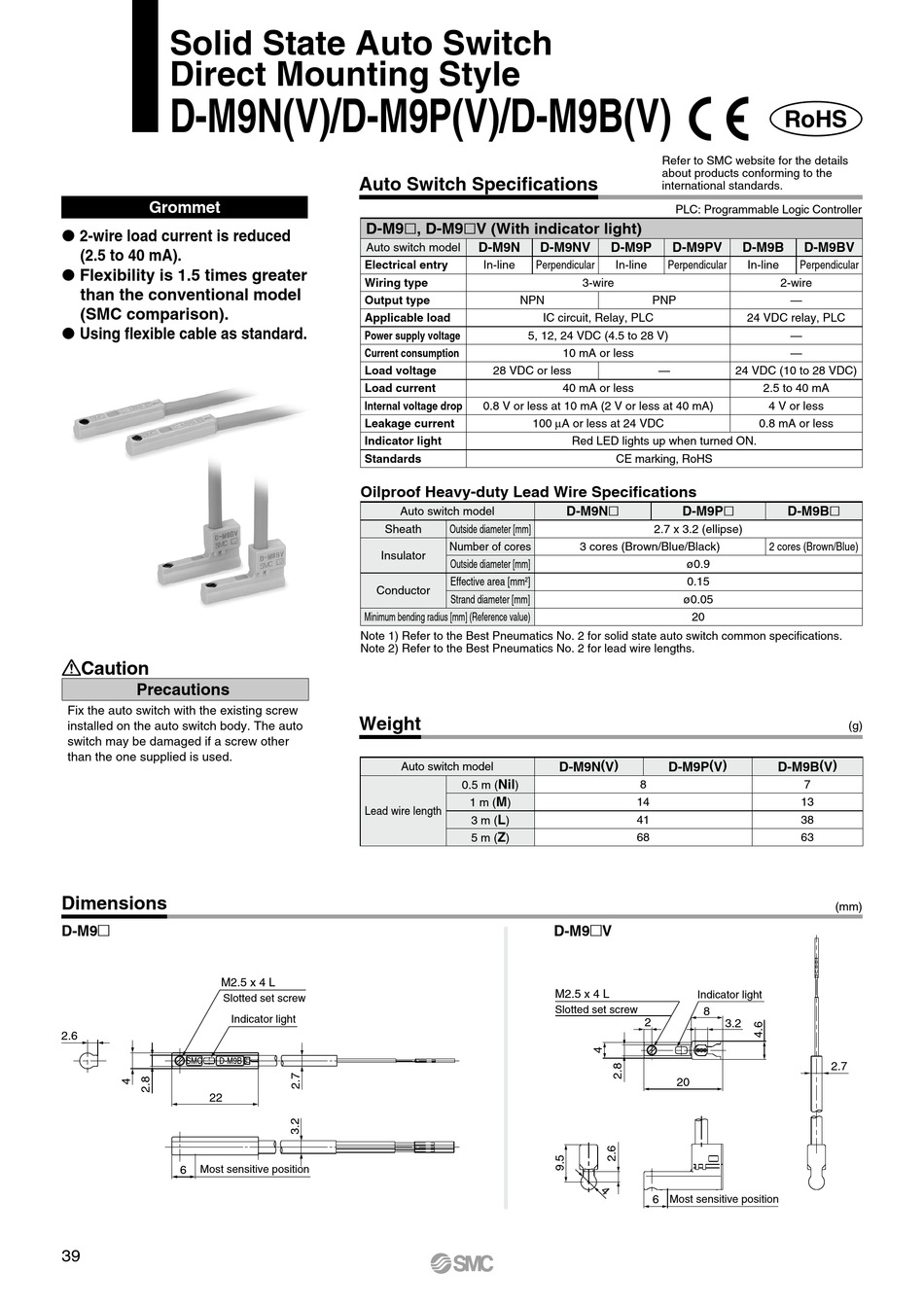

Solid State Auto Switch
Direct Mounting Style
D-M9N(V)/D-M9P(V)/D-M9B(V)
Grommet
P 2-wire load current is reduced
(2.5 to 40 mA).
P Flexibility is 1.5 times greater
than the conventional model
(SMC comparison).
P Using flexible cable as standard.
Caution
Precautions
Fix the auto switch with the existing screw
installed on the auto switch body. The auto
switch may be damaged if a screw other
than the one supplied is used.
Dimensions
D-M9m
M2.5 x 4 L
Slotted set screw
Indicator light
2.6
22
6 Most sensitive position
39
Auto Switch Specifications
D-M9l, D-M9lV (With indicator light)
D-M9N
Auto switch model
Electrical entry In-line
Wiring type
Output type
NPN
Applicable load
Power supply voltage
5, 12, 24 VDC (4.5 to 28 V)
Current consumption
Load voltage 28 VDC or less
Load current
Internal voltage drop 0.8 V or less at 10 mA (2 V or less at 40 mA)
100 mA or less at 24 VDC
Leakage current
Indicator light
Standards
Oilproof Heavy-duty Lead Wire Specifications
Auto switch model
Sheath Outside diameter [mm]
Number of cores
Insulator
Outside diameter [mm]
Effective area [mm ]
2
Conductor
Strand diameter [mm]
Minimum bending radius [mm] (Reference value)
Note 1) Refer to the Best Pneumatics No. 2 for solid state auto switch common specifications.
Note 2) Refer to the Best Pneumatics No. 2 for lead wire lengths.
Weight
Auto switch model
Nil
0.5 m ( )
M
1 m ( )
Lead wire length
L
3 m ( )
Z
5 m ( )
Refer to SMC website for the details
about products conforming to the
international standards.
PLC: Programmable Logic Controller
D-M9NV D-M9P D-M9PV
Perpendicular In-line Perpendicular
3-wire
PNP
IC circuit, Relay, PLC
10 mA or less
—
40 mA or less
Red LED lights up when turned ON.
CE marking, RoHS
D-M9Nl D-M9Pl
2.7 x 3.2 (ellipse)
3 cores (Brown/Blue/Black)
ø0.9
0.15
ø0.05
20
D-M9N ( V ) D-M9P ( V )
8
14
41
68
D-M9mV
M2.5 x 4 L
Indicator light
Slotted set screw
8
2
20
6
Most sensitive position
RoHS
D-M9B D-M9BV
In-line Perpendicular
2-wire
—
24 VDC relay, PLC
—
—
24 VDC (10 to 28 VDC)
2.5 to 40 mA
4 V or less
0.8 mA or less
D-M9Bl
2 cores (Brown/Blue)
(g)
D-M9B ( V )
7
13
38
63
(mm)
3.2
2.7
