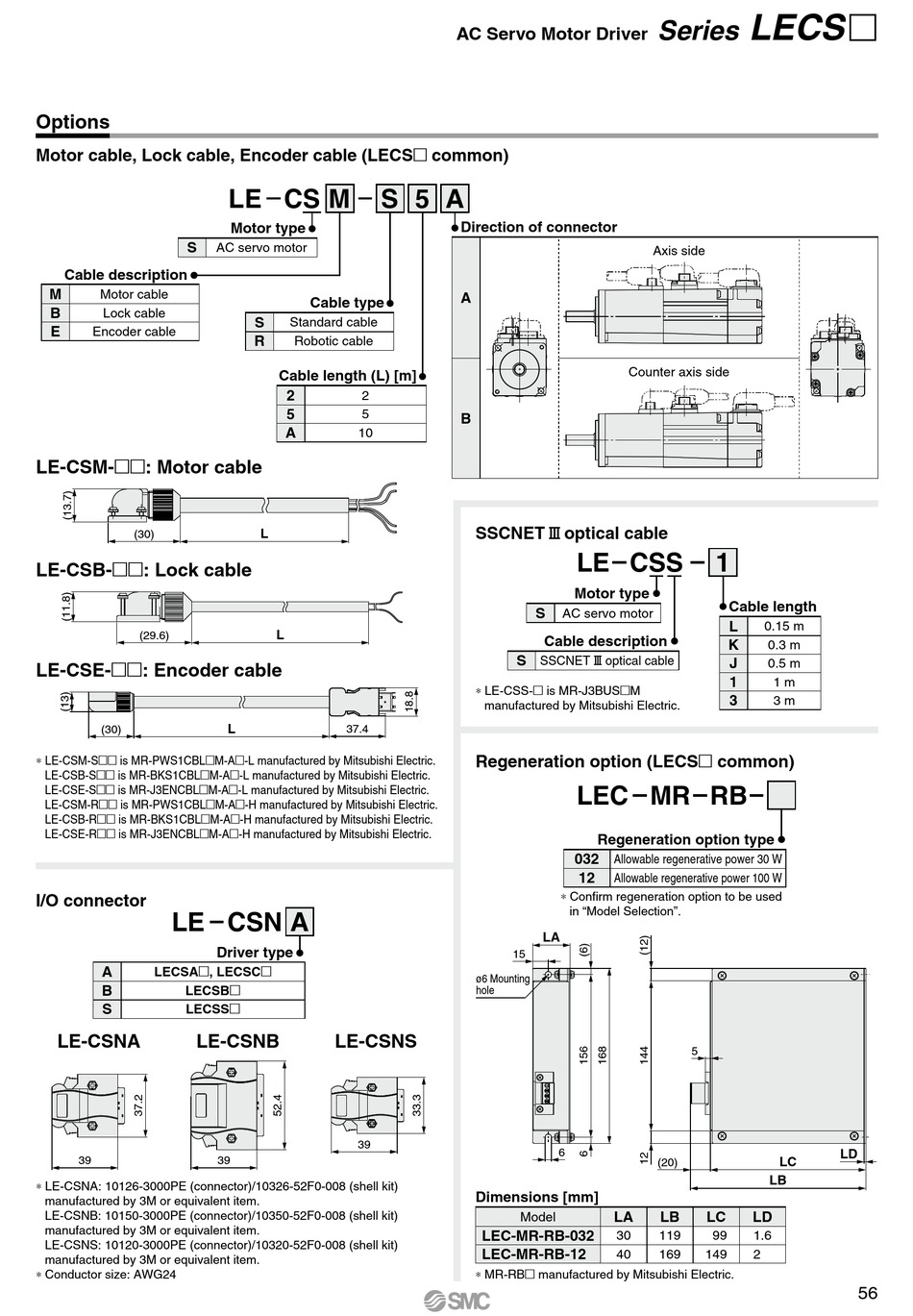

SMC Networks LEJS Series Instructions Manual page 59

Options
Motor cable, Lock cable, Encoder cable (LECS common)
S
Cable description
M
Motor cable
B
Lock cable
E
Encoder cable
LE-CSM-: Motor cable
(30)
LE-CSB-: Lock cable
(29.6)
LE-CSE-: Encoder cable
(30)
* LE-CSM-S is MR-PWS1CBLM-A-L manufactured by Mitsubishi Electric.
LE-CSB-S is MR-BKS1CBLM-A-L manufactured by Mitsubishi Electric.
LE-CSE-S is MR-J3ENCBLM-A-L manufactured by Mitsubishi Electric.
LE-CSM-R is MR-PWS1CBLM-A-H manufactured by Mitsubishi Electric.
LE-CSB-R is MR-BKS1CBLM-A-H manufactured by Mitsubishi Electric.
LE-CSE-R is MR-J3ENCBLM-A-H manufactured by Mitsubishi Electric.
I/O connector
LE CSN A
A
LECSA, LECSC
B
LECSB
S
LECSS
LE-CSNA LE-CSNB
39
* LE-CSNA: 10126-3000PE (connector)/10326-52F0-008 (shell kit)
manufactured by 3M or equivalent item.
LE-CSNB: 10150-3000PE (connector)/10350-52F0-008 (shell kit)
manufactured by 3M or equivalent item.
LE-CSNS: 10120-3000PE (connector)/10320-52F0-008 (shell kit)
manufactured by 3M or equivalent item.
* Conductor size: AWG24
LE CS M S 5 A
Motor type
AC servo motor
Cable type
S
Standard cable
R
Robotic cable
Cable length (L) [m]
2
2
5
5
A
10
L
L
L
37.4
Driver type
LE-CSNS
39
39
AC Servo Motor Driver
Direction of connector
A
Counter axis side
B
SSCNET optical cable
#
LE CSS
Motor type
S
AC servo motor
Cable description
S
SSCNET # optical cable
* LE-CSS- is MR-J3BUSM
manufactured by Mitsubishi Electric.
Regeneration option (LECS common)
LEC MR RB
Regeneration option type
032
Allowable regenerative power 30 W
12
Allowable regenerative power 100 W
* Confirm regeneration option to be used
in "Model Selection".
LA
15
ø6 Mounting
hole
6
Dimensions [mm]
LA
Model
LEC-MR-RB-032
30
LEC-MR-RB-12
40
* MR-RB manufactured by Mitsubishi Electric.
LECS 
Series
Axis side
1
Cable length
L
0.15 m
K
0.3 m
J
0.5 m
1
1 m
3
3 m
5
LC
(20)
LB
LB LC LD
119 99 1.6
169 149 2
LD
56
