LEJS
Series

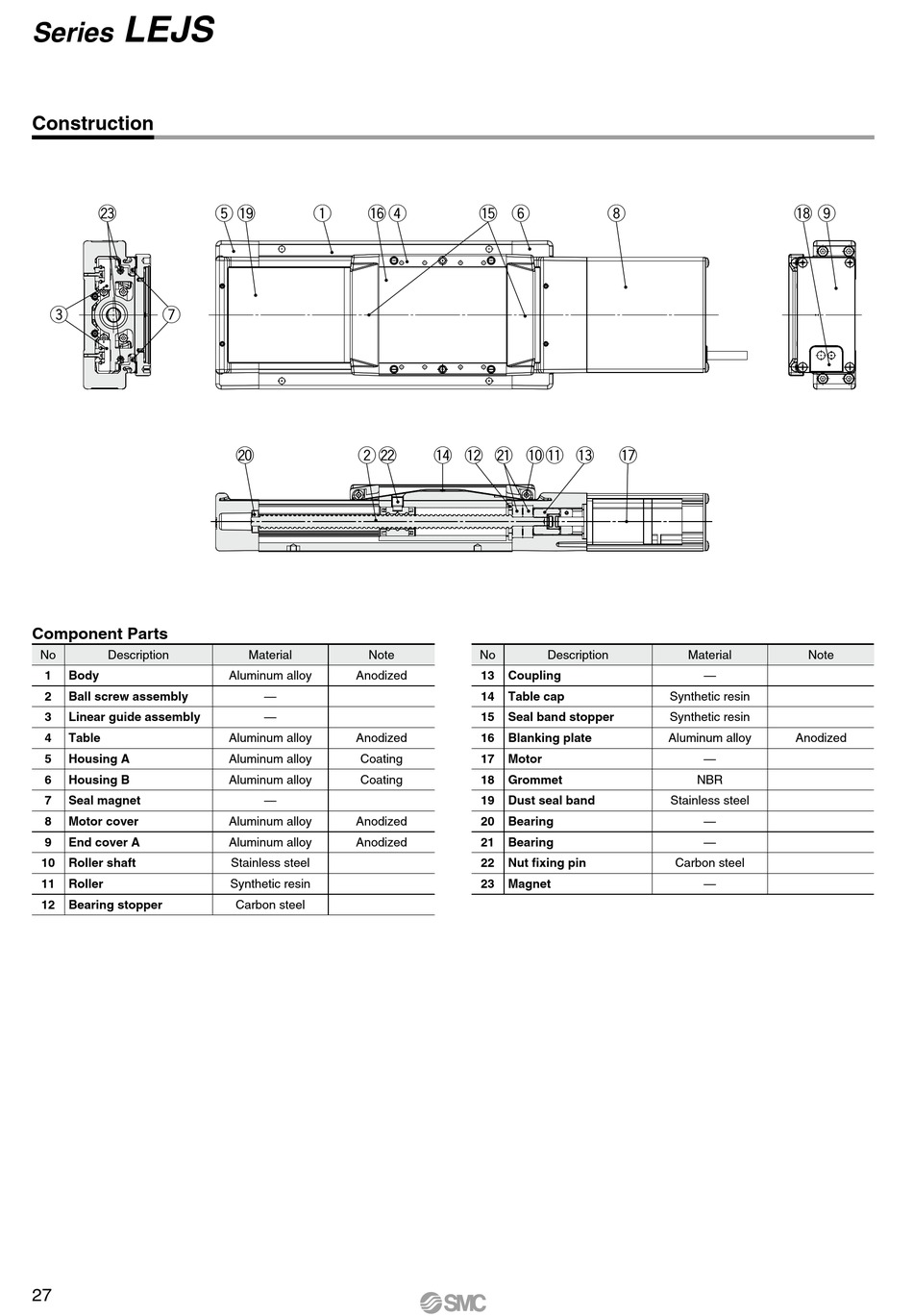

Construction
@3
e u

Component Parts

No Description
1 Body
2 Ball screw assembly
3 Linear guide assembly
4 Table
5 Housing A
6 Housing B
7 Seal magnet
8 Motor cover
9 End cover A
10 Roller shaft
11 Roller
12 Bearing stopper
27
t !9 q !6
@0 w @2
Material Note
Aluminum alloy Anodized
—
—
Aluminum alloy Anodized
Aluminum alloy Coating
Aluminum alloy Coating
—
Aluminum alloy Anodized
Aluminum alloy Anodized
Stainless steel
Synthetic resin
Carbon steel
r !5 y
!4 !2 @1 !0 ! 1 !3
No Description
13 Coupling
14 Table cap
15 Seal band stopper
16 Blanking plate
17 Motor
18 Grommet
19 Dust seal band
20 Bearing
21 Bearing
22 Nut fixing pin
23 Magnet
i
!7
Material
—
Synthetic resin
Synthetic resin
Aluminum alloy
—
NBR
Stainless steel
—
—
Carbon steel
—
!8 o
Note
Anodized
