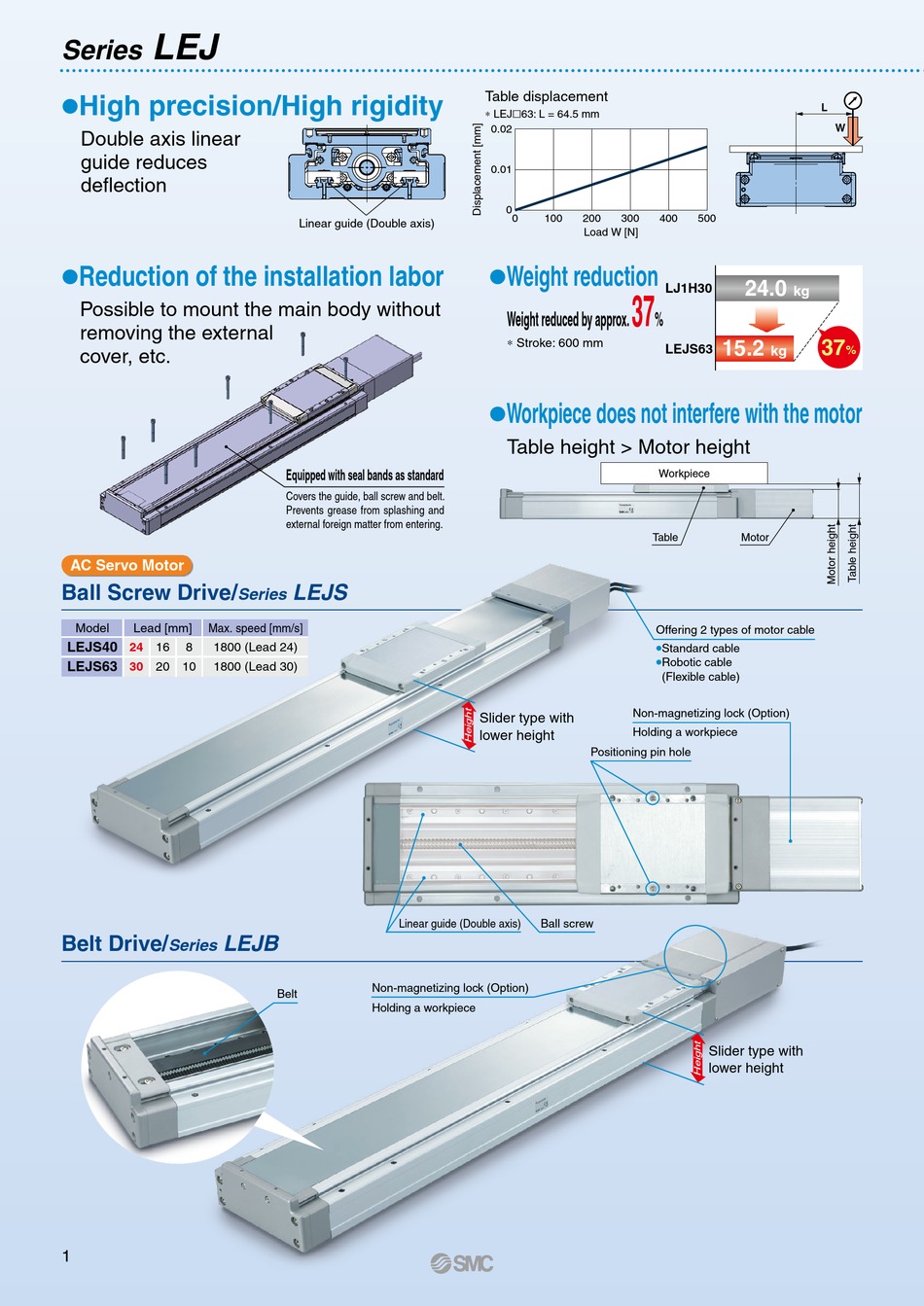

LEJ
Series
High precision/High rigidity

Double axis linear
guide reduces
deflection
Reduction of the installation labor

Possible to mount the main body without
removing the external
cover, etc.
AC Servo Motor
Ball Screw Drive/
Model Lead [mm] Max. speed [mm/s]
LEJS40
24
16 8 1800 (Lead 24)
LEJS63
30 20 10 1800 (Lead 30)
Belt Drive/ LEJB
Series
1
Linear guide (Double axis)
Equipped with seal bands as standard
Covers the guide, ball screw and belt.
Prevents grease from splashing and
external foreign matter from entering.
LEJS
Series
Linear guide (Double axis)
Non-magnetizing lock (Option)
Belt
Holding a workpiece
Table displacement
* LEJl63: L = 64.5 mm
0.02
0.01
0
0 100 200 300
Load W [N]
Weight reduction

37
Weight reduced by approx.
* Stroke: 600 mm
Workpiece does not interfere with the motor

Table height > Motor height
Table
Non-magnetizing lock (Option)
Slider type with
Holding a workpiece
lower height
Positioning pin hole
Ball screw
L
400 500
24.0
LJ1H30
kg
%
37
15.2
LEJS63
kg
Workpiece
Motor
Offering 2 types of motor cable
Standard cable

Robotic cable

(Flexible cable)
Slider type with
lower height
W
%
