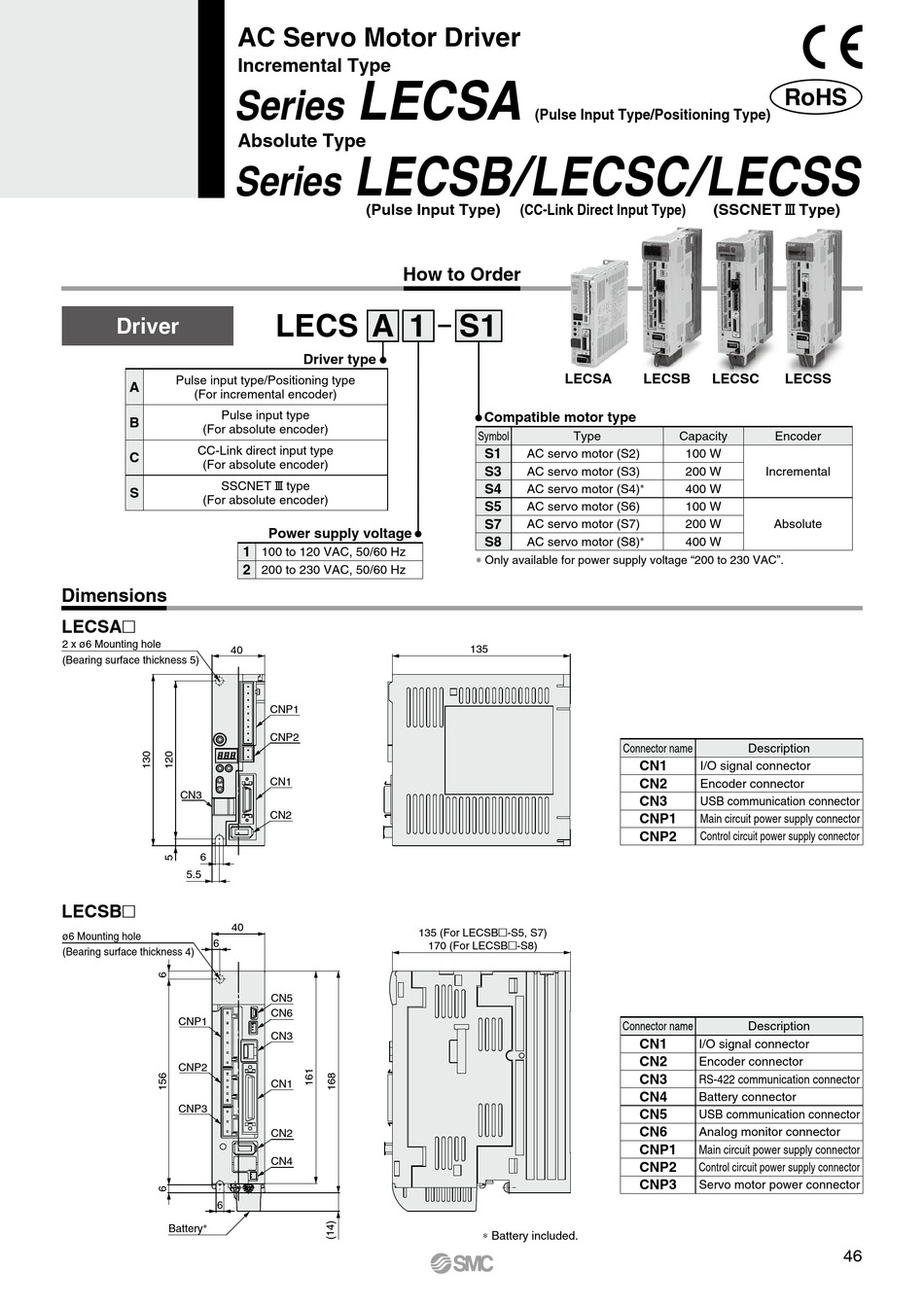

SMC Networks LEJS Series Instructions Manual page 49

Series
Series
Driver
Pulse input type/Positioning type
A
(For incremental encoder)
Pulse input type
B
(For absolute encoder)
CC-Link direct input type
C
(For absolute encoder)
SSCNET # type
S
(For absolute encoder)
Dimensions
LECSA

2 x ø6 Mounting hole
40
(Bearing surface thickness 5)
CN3
6
5.5
LECSB

40
ø6 Mounting hole
6
(Bearing surface thickness 4)
CNP1
CNP2
CNP3
6
∗
Battery
AC Servo Motor Driver
Incremental Type
LECSA
Absolute Type
LECSB / LECSC / LECSS
(Pulse Input Type)
How to Order
LECS A 1
Driver type
Power supply voltage
1
100 to 120 VAC, 50/60 Hz
2
200 to 230 VAC, 50/60 Hz
CNP1
CNP2
CN1
CN2
CN5
CN6
CN3
CN1
CN2
CN4
(Pulse Input Type/Positioning Type)
(CC-Link Direct Input Type)
S1
LECSA
Compatible motor type
Symbol Type
S1
AC servo motor (S2)
S3
AC servo motor (S3)
S4
AC servo motor (S4)
S5
AC servo motor (S6)
S7
AC servo motor (S7)
S8
AC servo motor (S8)
* Only available for power supply voltage "200 to 230 VAC".
135
135 (For LECSB-S5, S7)
170 (For LECSB-S8)
* Battery included.
RoHS
(SSCNET
#
LECSB LECSC LECSS
Capacity Encoder
100 W
200 W Incremental
*
400 W
100 W
200 W Absolute
*
400 W
Connector name Description
CN1
I/O signal connector
CN2
Encoder connector
CN3
USB communication connector
CNP1
Main circuit power supply connector
CNP2
Control circuit power supply connector
Connector name Description
CN1
I/O signal connector
CN2
Encoder connector
CN3
RS-422 communication connector
CN4
Battery connector
CN5
USB communication connector
CN6
Analog monitor connector
CNP1
Main circuit power supply connector
CNP2
Control circuit power supply connector
CNP3
Servo motor power connector
Type)
46
