Parts List - Jammer Arm

No. Name
1 push arm
2 push arm fix frame
3 handle
4 push arm connection shaft
5 hexagon socket bolt button head screws
6 washer
7 spring gasket
8 hexagon socket button head screws
9 washer
10 washer
11 T shape pin -black
12 butterfly clip
13 spring gasket
7.5

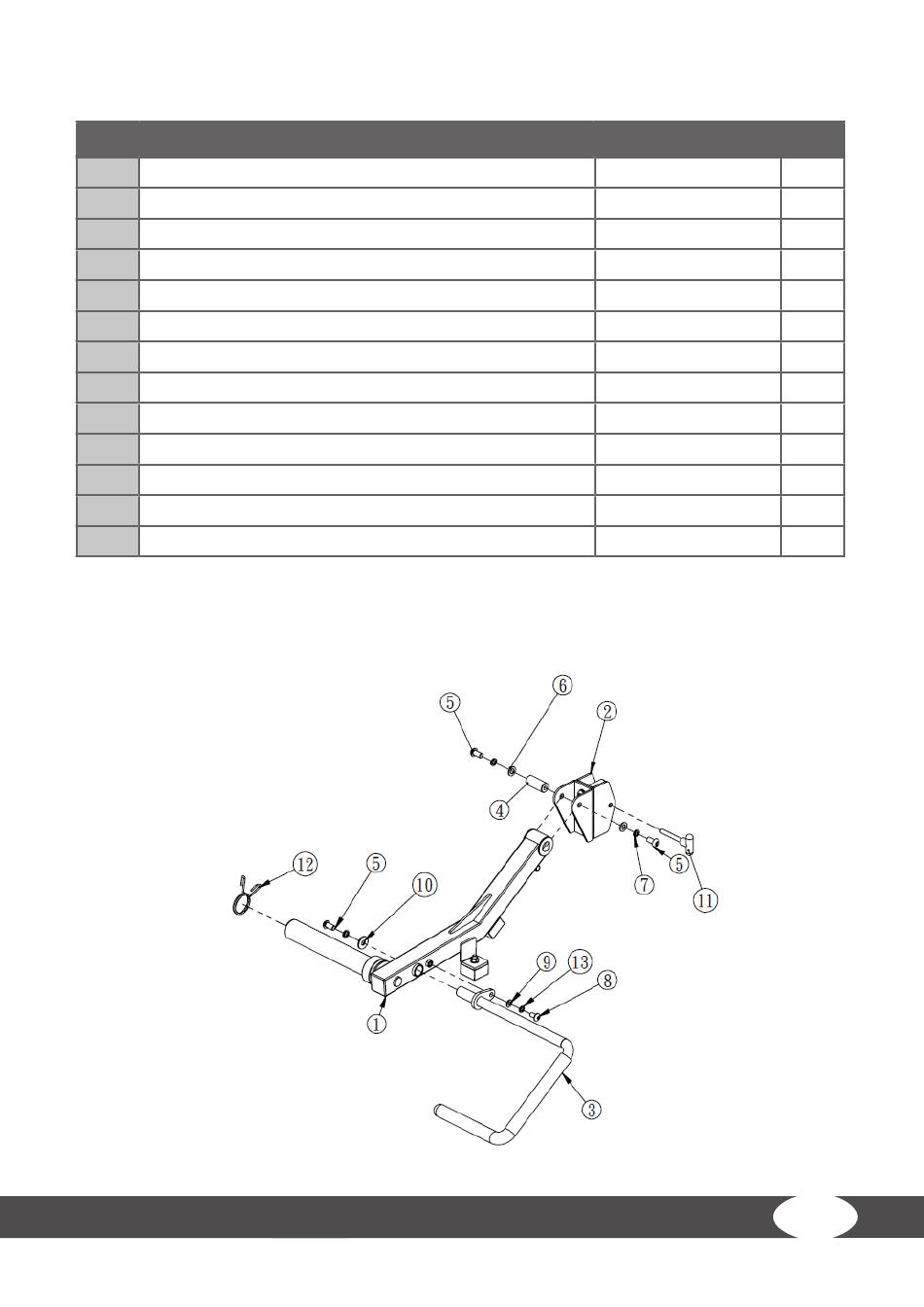

Exploded Drawing - Jammer Arm

Specification
Φ25*56
M12*25
Φ12
Φ12
M10*20
Φ10
Φ10*75
Φ10
Qty.
2
2
2
2
6
4
6
2
2
2
2
2
2
57
