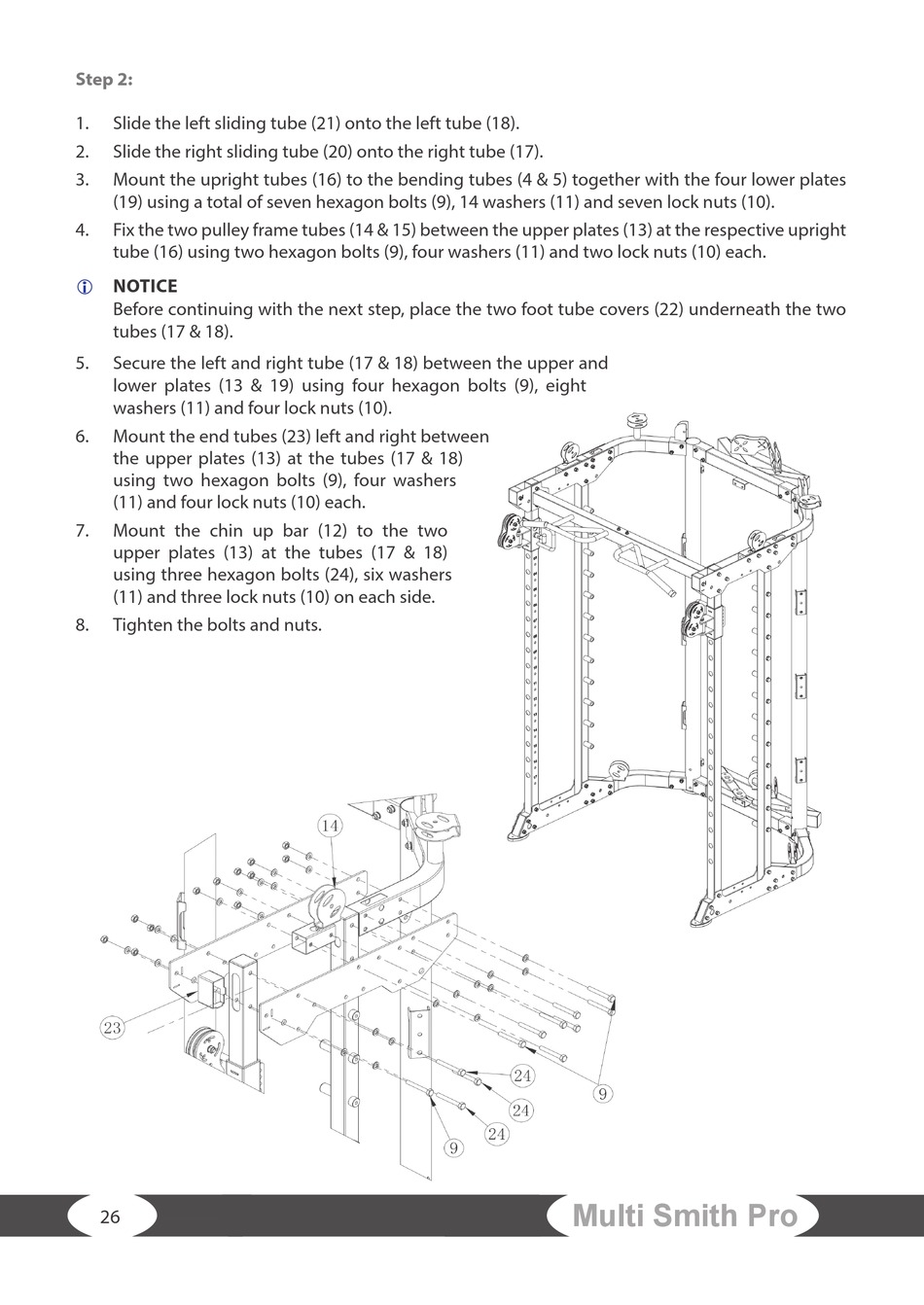

Step 2:
1. Slide the left sliding tube (21) onto the left tube (18).
2. Slide the right sliding tube (20) onto the right tube (17).
3. Mount the upright tubes (16) to the bending tubes (4 & 5) together with the four lower plates
(19) using a total of seven hexagon bolts (9), 14 washers (11) and seven lock nuts (10).
4. Fix the two pulley frame tubes (14 & 15) between the upper plates (13) at the respective upright
tube (16) using two hexagon bolts (9), four washers (11) and two lock nuts (10) each.
NOTICE
L
Before continuing with the next step, place the two foot tube covers (22) underneath the two
tubes (17 & 18).
5. Secure the left and right tube (17 & 18) between the upper and
lower plates (13 & 19) using four hexagon bolts (9), eight
washers (11) and four lock nuts (10).
6. Mount the end tubes (23) left and right between
the upper plates (13) at the tubes (17 & 18)
using two hexagon bolts (9), four washers
(11) and four lock nuts (10) each.
7. Mount the chin up bar (12) to the two
upper plates (13) at the tubes (17 & 18)
using three hexagon bolts (24), six washers
(11) and three lock nuts (10) on each side.
8. Tighten the bolts and nuts.
