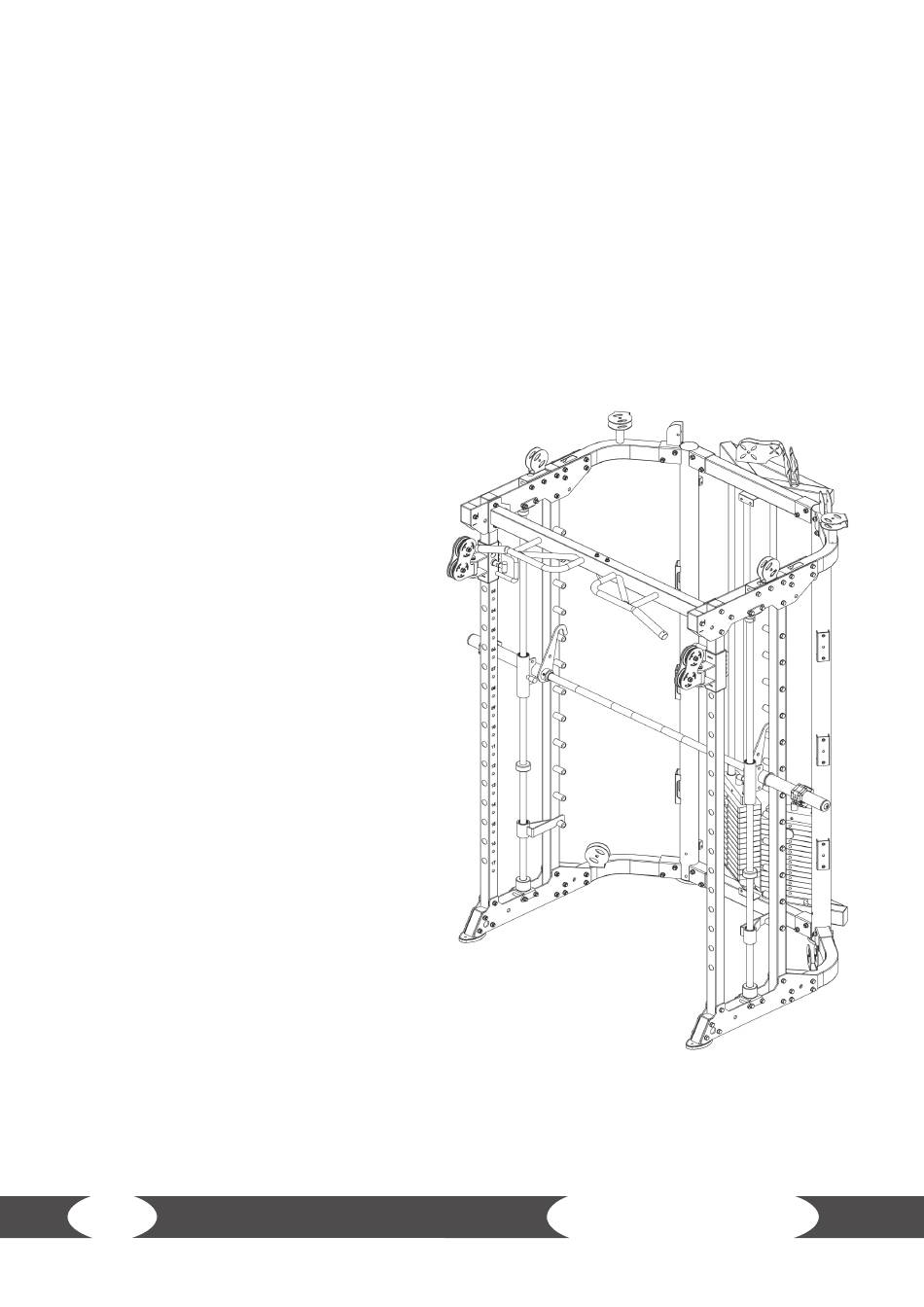

Step 4:
1.
Insert the guide rods (45) into the slots of the connection tube (1).
2.
Place a rubber pad (44) on each of the guide rods (45).
3.
Slide the weight plates of the weight block (47) one by one onto the guide rods (45).
4.
Insert the selector rod (90) into the weight block (47).
5.
Insert the weight pin (91) into any position hole of the weight block (47).
6.
Mount the guide rods (45) to the upper connection tube (6) using one reinforcing plate (46), two
hexagon bolts (48) and two washers (11) each.
7.
Tighten the bolts.
30
