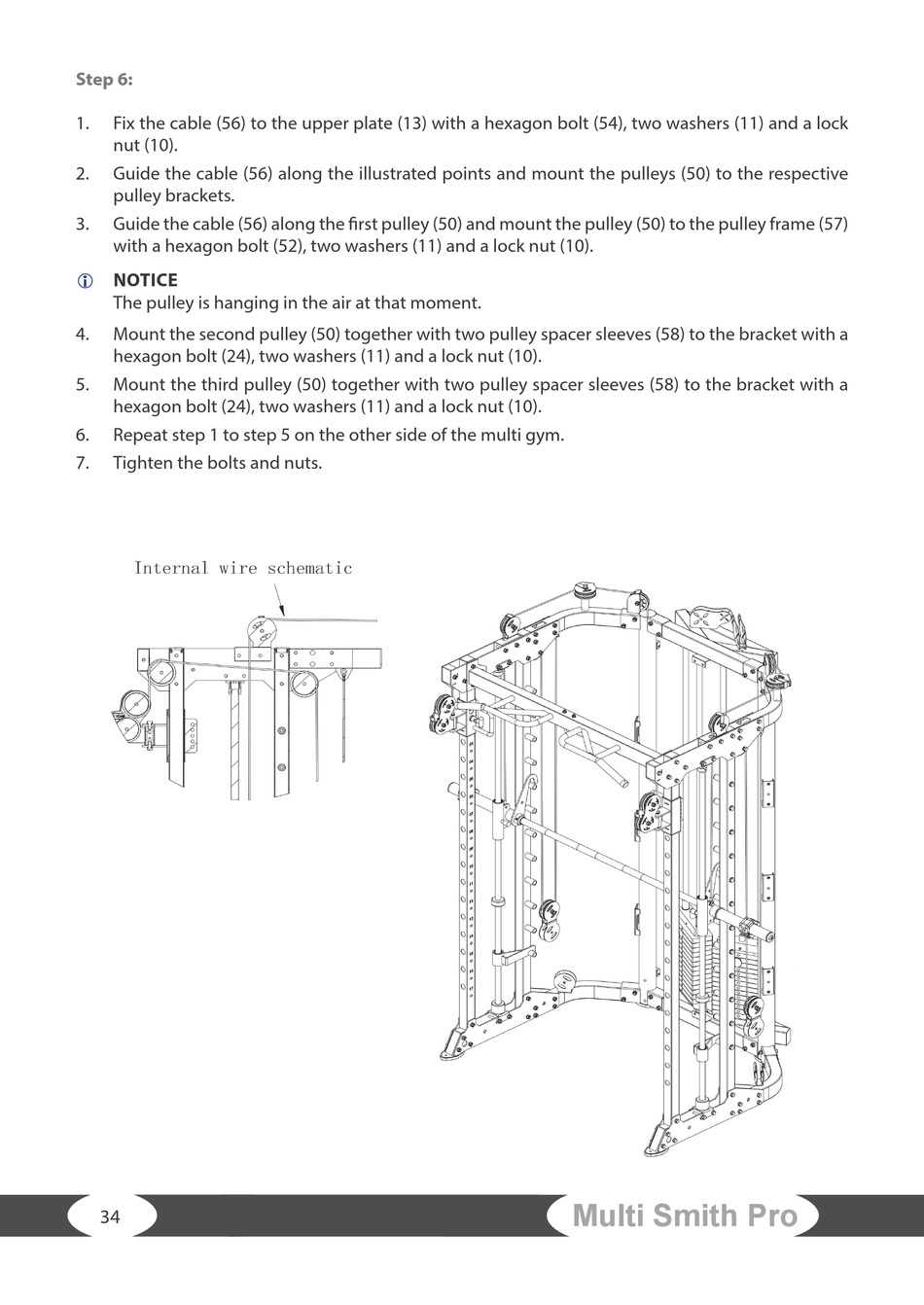

Step 6:
1. Fix the cable (56) to the upper plate (13) with a hexagon bolt (54), two washers (11) and a lock
nut (10).
2. Guide the cable (56) along the illustrated points and mount the pulleys (50) to the respective
pulley brackets.
3. Guide the cable (56) along the first pulley (50) and mount the pulley (50) to the pulley frame (57)
with a hexagon bolt (52), two washers (11) and a lock nut (10).
NOTICE
L
The pulley is hanging in the air at that moment.
4. Mount the second pulley (50) together with two pulley spacer sleeves (58) to the bracket with a
hexagon bolt (24), two washers (11) and a lock nut (10).
5. Mount the third pulley (50) together with two pulley spacer sleeves (58) to the bracket with a
hexagon bolt (24), two washers (11) and a lock nut (10).
6. Repeat step 1 to step 5 on the other side of the multi gym.
7. Tighten the bolts and nuts.
