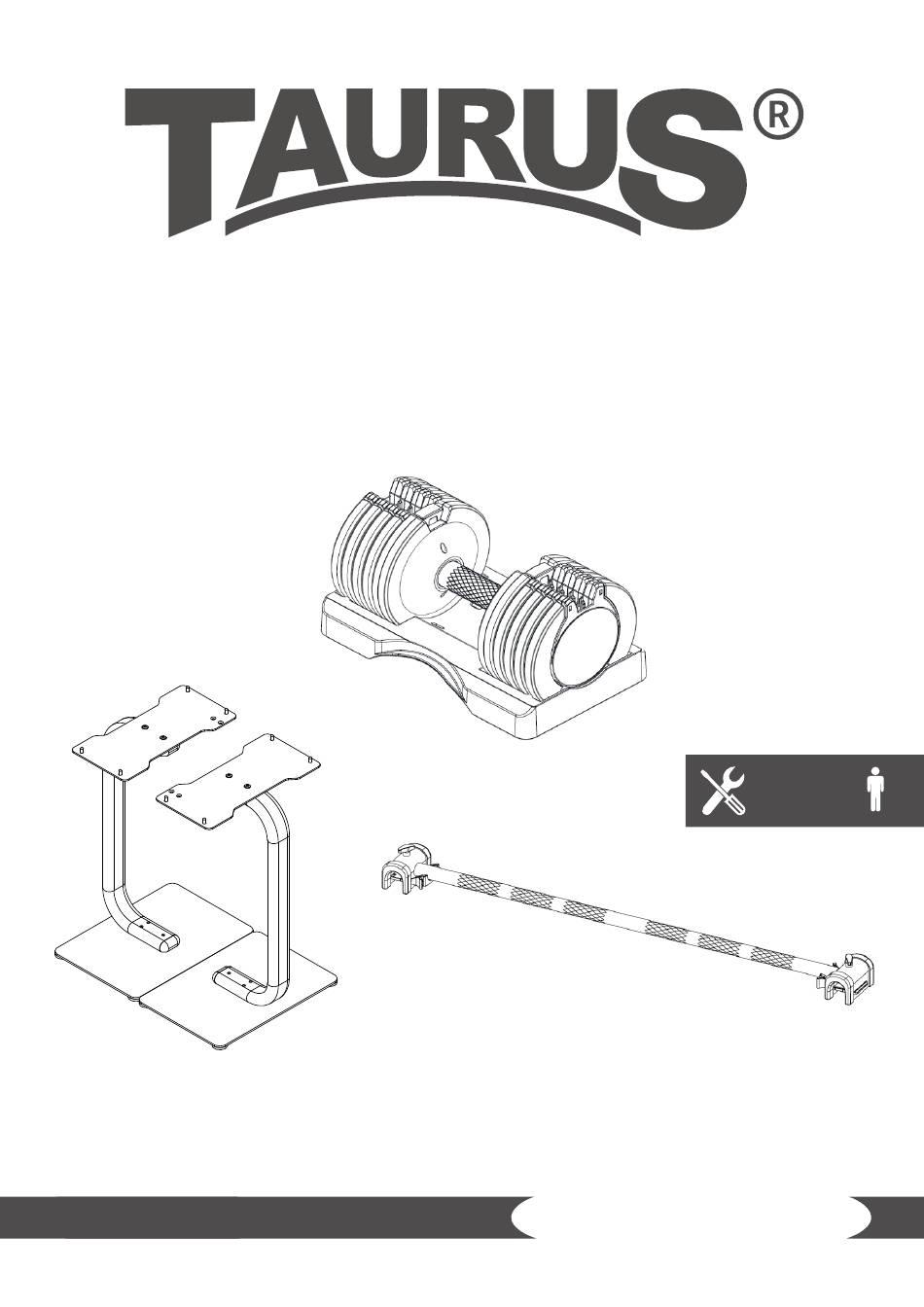

- Page 1 Assembly and Operating Instructions TF-SB-25 ~ 60 Min. TF-SBEB-25 TF-SBS-25 FSTFSB25.01.02 FSTFSBS25.01.02 FSTFSBEB25.01.02 Taurus SelectaBell...
- Page 2 SelectaBell Dumbbell...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List: TF-SB-25... - Page 4 SelectaBell Dumbbell...
- Page 5 European VAT Number: DE813211547 Disclaimer © TAURUS is a registered brand of the company Fitshop GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Fitshop is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
- Page 6 (person with legal responsibility). Class H (home use): use at home. These stationary training devices are intended for the use in private homes where access to the training device is regulated by the owner (person with legal responsibility). SelectaBell Dumbbell...
- Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ATTENTION This notice indicates potentially hazardous situations which, if not avoided, may result in property damage.
-
Page 8: General Information
120.9 cm x 15 cm x 13 cm Set-up dimensions (L x W x H) approx.: 115 cm x 10.5 cm x 9.7 cm Article weight (gross, including packaging): 5.25 kg Article weight (net, without packaging): 4.71 kg Use class: SelectaBell Dumbbell... -
Page 9: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly aff ected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 10: Set-Up Place
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight unevenness. For Class S equipment, the exercise equipment may only be used in areas where access, supervision and control are specifi cally regulated by the owner. SelectaBell Dumbbell... -
Page 11: Assembly
ASSEMBLY NOTICE The dumbbell stand is an optionally availble accessory and needs to purchased separately. The stand is compatible with 50LB as well as the 55LB SelectaBells. General Instructions DANGER ⚠ Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suff ocation for children. -
Page 12: Assembly
Attach the dumbbell tray plates (2) to the leg stands (3) with four long screws (6) and four nuts (8). Tighten with a screwdriver. Step 2 Attach the bottom plates (1) to the leg stands (3) with six screws (9). Tighten with a screwdriver. SelectaBell Dumbbell... - Page 13 Step 3 CAUTION ⚠ Remove the dumbbells from the tray before assembling. If you have purchased the Easy Bar, now attach the hook according to the instructions in the next chapter. Attach the trays to the tray plates (2) with four screws (7) each. Tighten with a screwdriver. Step 4 Place the dumbbells onto the stand.
-
Page 14: Operating Instructions
To use the dumbbells, lift them straight up from the holder leaving the weight plates (B & C) not being used in the dumbbell tray. After use, please re-insert the dumbbell in its dumbbell tray so that the adjusting pin (D) is facing upwards and fi ts squarely with the weight plates not being used. SelectaBell Dumbbell... - Page 15 Easy Bar CAUTION ⚠ The Easy Bar must be secured to both dumbbells. Place the Easy Bar on top of the dumbbell handle. Pull the plate back by pressing it together. Press the wing bolt down to latch the Easy Bar onto the handle. Tighten the wing bolt.
-
Page 16: Storage And Transport
Please refer to the following overview for the most common errors and how to correct them. If the equipment still does not function properly, contact your contract partner. Fault Cause Solution Squeak and creaking Loose or too tight screw Check or lubricate screw connection noises connection SelectaBell Dumbbell... - Page 17 The Weight Plates are not Correctly Aligned If the plates are not correctly aligned, the dumbbell is hard to adjust. Check if there are any foreign objects (dirt/small objects) in the dumbbell tray. Choose the maximum weight of 25lbs and lift up the dumbbell 3 - 5 times. Change the order of the outer weight plates.
- Page 18 3 - 5 times. Detached Adjusting Pin In case the adjusting pin gets detached from the dumbbell, loosen the screw on the underside of the grip, re-insert the adjusting pin and re-tighten the screw. SelectaBell Dumbbell...
-
Page 19: Maintenance And Inspection Calendar
Internal Weight Plate Adjustment not Running Smooth If the adjustment of the inner weight plates is not smooth, set the adjustment lever to 0lb (no weight selected). Lift the dumbbell and set it down 3-5 times quickly. Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. -
Page 20: Recommended Accessories
Of course, you can also contact our customer service: by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to advise you! chest strap fl oor mat triceps rope weight block extension SelectaBell Dumbbell... -
Page 21: Ordering Spare Parts
Enter the serial number in the appropriate fi eld. Serial number: Brand / Category: Taurus / Dumbbells Model Name: SelectaBell 25 LB / Stand / Easy Bar Article Number: TF-SB-25 TF-SBS-25 TF-SBEB-25... -
Page 22: Parts List: Tf
Parts List: TF-SB-25 Name Qty. Handle Bar Weight Plate A Weight Plate B Tray Exploded Drawing: TF-SB-25 SelectaBell Dumbbell... -
Page 23: Parts List: Tf-Sbs-25
Parts List: TF-SBS-25 Name Qty. Stand Base Dumbbell Base Main Leg Tube Tube Cap Screw M6 x 35mm Screw T6 x 15mm M6 Nut Screw M6 x 15mm Exploded Drawing: TF-SBS-25... -
Page 24: Parts List: Tf-Sbeb-25
Parts List: TF-SBEB-25 Name Qty. EZ bar Hook Screw M5x12L Exploded Drawing: TF-SBEB-25 SelectaBell Dumbbell... -
Page 25: Warranty
WARRANTY Products from TAURUS® are subject to strict quality control. However, if a fi tness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 26 For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy. SelectaBell Dumbbell...
-
Page 27: Contact
CONTACT TECHNIK TEKNIK OG SERVICE CUSTOMER SUPPORT �� �� �� +49 4621 4210-900 80 90 16 50 00800 2020 2772 +494621 4210 944 +49 4621 4210-945 �� +49 4621 4210-698 �� �� info@fi tshop.dk info@fi tshop.co.uk �� technik@fi tshop.de �� ��... - Page 28 Visit us also on our social media platforms or our blog! SelectaBell Dumbbell...
- Page 29 Notes...
- Page 30 Notes SelectaBell Dumbbell...
- Page 32 Taurus SelectaBell...
