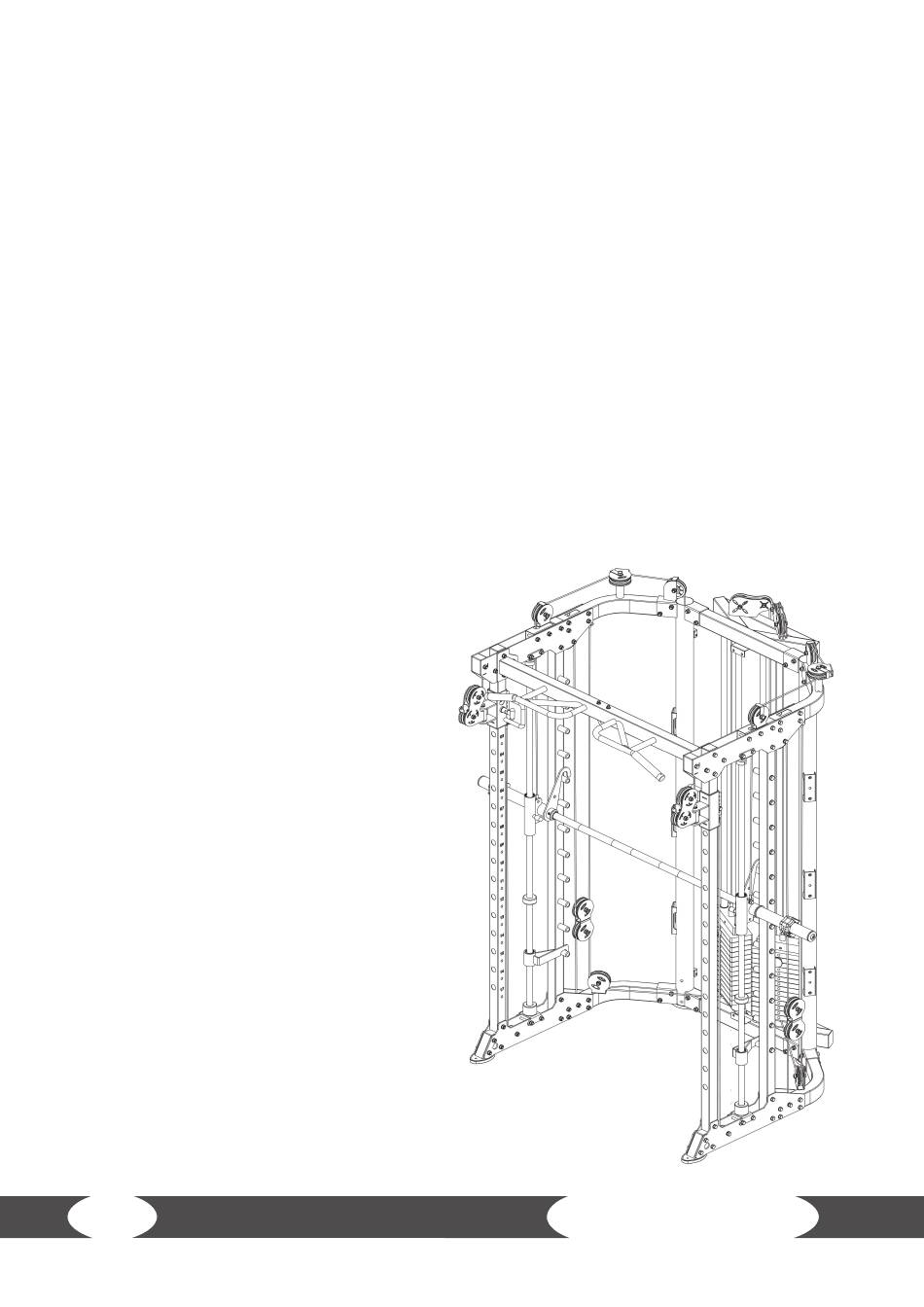

Step 7:
1. Screw the threaded end of the cable (60) into the socket on the weight block and guide the
cable (6) upwards trough the upper connection tube.
2. Mount a pulley (50) and a small pulley (59) to the bracket on the upper connection tube using a
hexagon bolt (52), two washers (11) and a lock nut (10) each.
3. Guide the cable (60) over the mounted pulleys (50 & 59) through the connection tube down
along the back of the weight block.
4. Mount a pulley (50) on the back of the connection tube using a hexagon bolt (52), two washers
(11) and a lock nut (10).
5. Guide the cable (60) along underneath the mounted pulley (50) and the weight block to the
front.
6. Mount one pulley (50) each on the bending tube and the hanging pulley frame using a hexagon
bolt (52), two washers (11) and a lock nut (10) each.
7. Guide the cable (60) underneath the pulley (50) on the bending tube upwards over the pulley
(50) through the hanging pulley frame.
8. Mound two small pulleys (59) together with two spacer sleeves (58) between the lower plates
using a hexagon bolt (24), two washers (11) and a lock nut (10).
9. Guide the cable underneath the small pulley (59) trough the
plates upwards and fix the eye end of the cable (6) to
the back of the sliding tubes using a hexagon bolt
(54), two washers (11) and a lock nut (10).
10. Repeat step 1 to step 9 on the other side
of the multi gym.
11. Tighten the bolts and nuts.
