Summary of Contents for Taurus PRO SESS7152

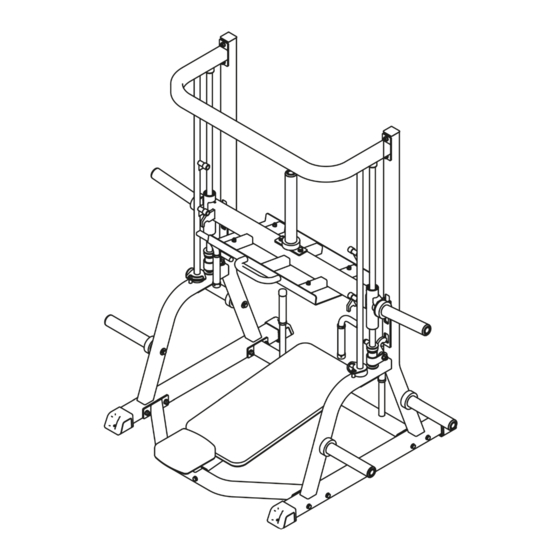

- Page 1 Assembly and Operating Instructions max. 150 kg ~ 90 Min. 110 kg L 166 | W 121 | H 171 SESS7152.01.01 SKU: SESS7152 Taurus Pro Vertical Leg Press...
- Page 2 Vertical Leg Press...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 Vertical Leg Press...
- Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions: Article weight (gross, incl. packaging) approx.: 120 kg Article weight (net, excl. packaging) approx.: 110.4 kg Packaging dimensions (L x W x H) approx.: 176.5 cm x 116.5 cm x 24 cm Set-up dimensions (L x W x H) approx.: 165.5 cm x 121.4 cm x 171.1 cm Maximum user weight: 150 kg... -
Page 8: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. - Page 11 Item no. Description Quantity Upright Frame I ASSY Upright Frame II ASSY Handle Frame ASSY Front Connecting Frame Sliding Frame ASSY II Upper Connection Frame ASSY Back Pad Support Frame Rotating Frame I ASSY Rotating Frame II ASSY Guide Φ25*1124 Long Barbell Frame ASSY Sliding Safety Frame ASSY I Sliding Safety Frame ASSY II...
-
Page 12: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. If you have difficulty recognising the graphics, we recommend that you open and/or download the PDF instructions stored in the webshop on your end device (e.g. - Page 13 Step 1: Assembly of the Upright Frames NOTICE Do not fully tighten the bolts. Assemble the handle frame (3) and the front connecting frame (4) to the upright frame (1) and the upright frame (2) with eight screws (22), sixteen flat washers (25) and eight lock nuts (23).
- Page 14 Step 2: Assembly of the Upper Connection Frame, Sliding Frame and Rotating Frame Attach two guides (10), the rotating frame 1 (8) and the rotating frame 2 (9) to the upright frame 1 (1) and the upright frame 2 (2). Assemble the sliding frame 2 (5) to the guides (10) with two baffle rings (19), two bumpers (18), one sliding safety frame 1 (12) and one sliding safety frame 2 (13).
- Page 15 Step 3: Assembly of the Barbell Frames, Head Pad and Back Pad Assemble the long barbell frame (11) to the sliding frame 2 (5) with two screws (20), two flat washers (25) and two spring washers (26). Assemble four barbell frames (14) to the upright frame 1 (1) and the upright frame 2 (2) with four screws (20), four flat washers (24) and four spring washers (26).
- Page 16 Load and Unload Weight Plates ⚠ CAUTION Make sure to always use some sort of weight collar when exercising with external weights. Never store unused weight plates on the floor. Store unused weight plates on a weight rack or respective weight horn. To load the weight horn, carefully grab one weight plate at a time with both hands.
-
Page 17: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 18: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Screw connections Cushions Legend: C = clean;... -
Page 19: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 20: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / multi gym Model Name: Pro Iso Vertical Leg Press SKU: SESS7152... -
Page 21: Parts List
Parts List Overall Item No. Part No. Description Qty. IFP161301ASSY Upright Frame 1 ASSY IFP161302ASSY Upright Frame 2 ASSY IFP161303ASSY Handle Frame ASSY IFP16130400 Front Connecting Frame IFP161305ASSY Sliding Frame ASSY 1 IFP161306ASSY Upper Connection Frame ASSY IFP16130700 Back Pad Support Frame IFP161308ASSY Rotating Frame Ⅰ... - Page 22 Upright Frame 1 ASSY (1) Grade No. Part No. Description Qty. IFP16130100 Upright Frame I KPSFID3000 Plug 50.8 Ø GB17880.5M6*16.5DS17 Rivet Nut M6 IFP12013300 Bottom Foot Plug GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 Upright Frame 2 ASSY (2) Grade No. Part No.
- Page 23 Sliding Frame 1 ASSY (5) Grade No. Part No. Description Qty. 5.1.1 IFP16130500 Sliding Frame 5.1.2 IFP12013400 Weight Horn Sleeve 5.1.3 IFP12013500 Plug Φ49 5.1.4 LM25UU Linear Bearing 5.1.5 HF985A1500 Bumper Φ76*Φ42*25 5.1.6 GB893.140FH12 Circlip for Hole Upper Connection Frame ASSY (6) Grade No.
- Page 24 Long Barbell Frame ASSY (11) Grade No. Part No. Description Qty. 11.1 IFP16131200 Long Barbell Frame 11.2 IFP12013500 Plug Φ49 11.3 IFP16053000 Weight Horn Sleeve 11.4 HF985A1500 Bumper Φ76*Φ42*25 Sliding Safety Frame 1 ASSY (12) Grade No. Part No. Description Qty.
-
Page 25: Exploded Drawing
Exploded Drawing Overall... - Page 26 Upright Frame Ⅱ ASSY (2) Upright Frame Ⅰ ASSY (1) Handle Frame ASSY (3) Sliding Frame ASSY Ⅱ (5) Vertical Leg Press...
- Page 27 Upper Connection Frame ASSY (6) Sliding Frame ASSY Ⅰ (5) 5-1-6 5-1-4 5-1-1 5-1-5 5-1-2 5-1-3 5-1-4 5-1-6 Rotating Frame Ⅱ ASSY (9) Rotating Frame Ⅰ ASSY (8)
- Page 28 Long Barbell Frame ASSY (11) Sliding Safety Frame ASSY Ⅰ (12) 11-2 12-2 12-4 11-3 12-3 11-4 12-1 12-8 12-7 12-5 11-1 12-3 12-7 12-6 Sliding Safety Frame ASSY Ⅱ (13) Barbell Frame ASSY (14) 13-2 13-4 14-3 13-3 14-2 13-5 13-6 13-7...
-
Page 29: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 30 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
-
Page 31: Contact
CONTACT TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 189 530984 +49 4621 4210-945 +49 4621 42 10 933 �� +49 4621 4210-698 �� �� info@fitshop.dk info@fitshop.fr �� technik@sport-tiedje.de ��... - Page 32 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Sport-Tiedje Group is Europe’s largest http://www.powerhouse-fitness.co.uk/ specialist for home fitness equipment with www.powerhouse-fitness.co.uk/blog/ currently 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. https://www.facebook.com/powerhousefitness.co.uk Powerhouse Fitness is part of the Sport-Tiedje Group.
- Page 33 Notes...
- Page 34 Notes Vertical Leg Press...
- Page 36 Taurus Pro Iso Vertical Leg Press...
