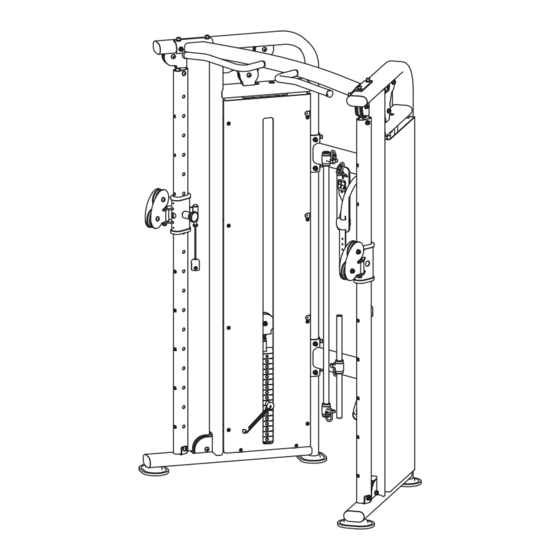

- Page 1 Assembly and Operating Instructions max. 180 kg ~ 180 Min. ~ 120 Min. 299 kg L 84 | W 152 | H 212 SEBR7017.01.03 SKU: SEBR7017 Taurus Elite Dual Adjustable Pulley...
- Page 2 Dual Pulley...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 Dual Pulley...
- Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight and dimensions: Packaging dimensions (L x W x H) and weight approx: No.1: 216 cm x 56.5 cm x 105 cm 193 kg / 425 lbs No.2: 50 cm x 47 cm x 41.5 cm 184 kg / 405 lbs Article weight (net, without packaging and weight stack):... -
Page 8: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. - Page 11 Item No. Name Description Qty. Left doorframe Right doorframe Upper beam bracket Joint frame Long handle support Pull back rope set Handle grips Short handle Foot strap Rubber foot Hardware pack...
-
Page 12: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Assembly of the Joint Frames Attach the upper joint frame (4) to the left and right doorframes (1&2) by using four screws (46),... - Page 13 Step 2: Assembly of Upper Beam Bracket Attach the upper beam bracket (3) to the left and right doorframes (1&2) by using two screws (46), two spring washers (57) and two plain washers (54) on each upper side. Attach the upper beam bracket (3) by using one screw (46), one spring washer (57) and one plain washer (54) on each side.
- Page 14 Step 3: Assembly of Weight Stack Plates Place two rod end covers (34) in the bottom of the right doorframe (2). Insert the guide rods (10) into the two rod end covers (34). Slide the two rubber bumpers (38) onto the guide rods (10). NOTICE Make sure that the holes in the weight stack plates are facing inwards.
- Page 15 Step 4: Assembly of Front Shields Assemble both front shields (66) by using ten screws (67) and ten washers (68) on each side.
- Page 16 Step 5: Assembly of Accessories Attach the latpulldown cable (19), foot strap (18) and long handle support (12) to the upper link span (4). Attach the short handle (17) and handle grips (69) to the lower link span (4). Dual Pulley...
-
Page 17: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 18: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 19: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Cables Screw connections Pulleys and cable routing... -
Page 20: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 21: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / Multi-gym Model Name: Elite Dual Adjustable Pulley SKU: SEBR7017... -
Page 22: Parts List
Parts List Name Specification Qty. Left doorframe Right doorframe Upper beam bracket Joint frame Glide frame Rotary frame Parsing davit Left adjusting pipe PT40*80*2*1875 Right adjusting pipe PT40*80*2*1875 Guide rod Φ20*1726 Guide rod fixing plate 220*45*8 Long handle support Mounting pole 46*Φ10*M8 Ringer Φ16*Φ12*7... - Page 23 Hollow pipe sleeve T50-100-T40-80 Rod end cover Φ23*12 Handle grip Φ31.5*Φ24*500 Elliptical tube stopper PT50*100*2 Rubber foot 175*125*11 Rubber bumper Φ62*Φ20*26 Rubber bumper Φ38*Φ33*15 Plug Φ12.5*Φ11.2*20 Blind nuts Hexagon socket button head screw M10*65 Hexagon socket button head screw M10*55 Hexagon bolt Hexagon socket button head screw M10*45...
- Page 24 Cross recessed pan head tapping screw ST4.2*13 Big washer Φ15*Φ5.3*1.2 Long handle group hexagon socket head screw M10*25 rings components hook cover aluminum end cover Φ38*Φ6.5*13 aluminum ring Φ32*Φ23*14.5 aluminum baffle ring Φ35*Φ26*13 plastic ring Φ30*Φ26*4.5 socket cap screw M6*25 sprina washer inner hexaqon end set screw M5*5...
-
Page 25: Exploded Drawing
Exploded Drawing... -
Page 26: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 27 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 28: Contact
CONTACT TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 189 530984 +49 4621 4210-945 +49 4621 42 10 933 �� +49 4621 4210-698 �� �� info@fitshop.dk info@fitshop.fr �� technik@sport-tiedje.de ��... - Page 29 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Sport-Tiedje Group is Europe’s largest http://www.powerhouse-fitness.co.uk/ specialist for home fitness equipment with www.powerhouse-fitness.co.uk/blog/ currently 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. https://www.facebook.com/powerhousefitness.co.uk Powerhouse Fitness is part of the Sport-Tiedje Group.
- Page 30 Notes Dual Pulley...
- Page 32 Taurus Elite Dual Pulley...
