2.4.3

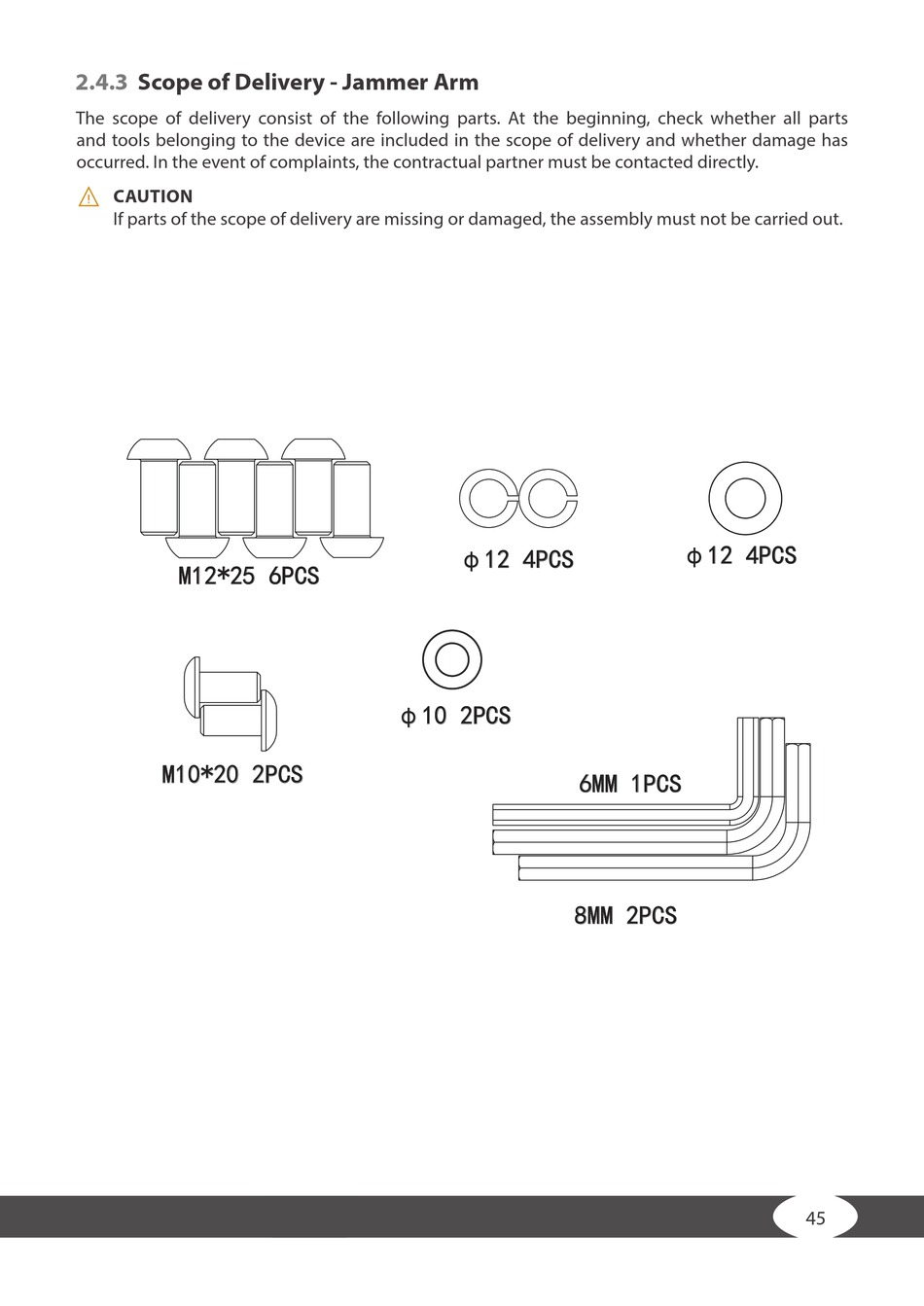

Scope of Delivery - Jammer Arm
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
CAUTION
⚠
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.
M12*25 6PCS
M10*20 2PCS
φ12 4PCS
φ10 2PCS
φ12 4PCS
6MM 1PCS
8MM 2PCS
45
