Assembly and Operating Instructions
~ 90 Min.
126 kg
L 225 | B 157 | H 140
SEBR7020.01.01
SKU: SEBR7020
TF-
Taurus

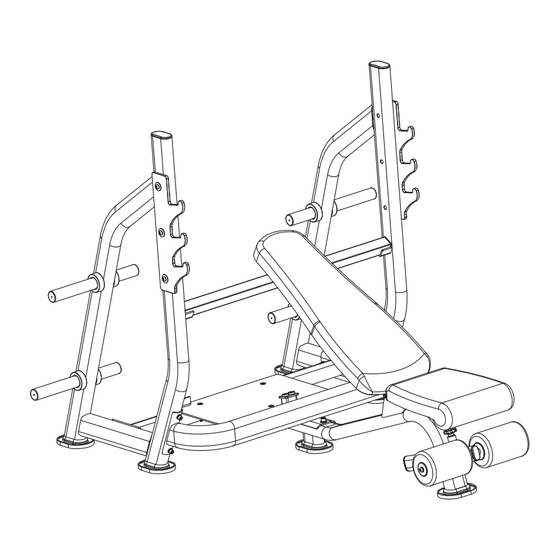

Elite Adjustable FID Bench

Advertisement

loading
Need help?

Need help?

Do you have a question about the Elite Adjustable FID Bench and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Taurus Elite Adjustable FID Bench

  • Page 1 Assembly and Operating Instructions ~ 90 Min. 126 kg L 225 | B 157 | H 140 SEBR7020.01.01 SKU: SEBR7020 Taurus Elite Adjustable FID Bench...
  • Page 2 Adjustable FID Bench...
  • Page 3 Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY...
  • Page 4 Adjustable FID Bench...
  • Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
  • Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
  • Page 7 GENERAL INFORMATION Technical Data Weight and Dimensions Packaging dimensions (L x W x H) and article weight (gross, incl. packaging) approx.: Box 1: 154 cm x 154 cm x 92 cm 73.6 kg Box 2: 86 cm x 64 cm x 23.5 cm 51 kg Box 3: 19 cm x 26 cm x 39 cm...
  • Page 8 Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year.
  • Page 9 Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. CAUTION ⚠ Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts.
  • Page 10 ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.
  • Page 11 Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. If you have difficulty recognising the graphics, we recommend that you open and/or download the PDF instructions stored in the webshop on your end device (e.g.
  • Page 12 Step 2 Assembly of the main frame Assemble the main frame (3) to rear connecting frame (4) using two screws (49), two spring washers (53) and two washers (57). Assemble the main frame (3) to front connecting frame (8) using two screws (49), two spring washers (53) and two washers (57).
  • Page 13 Step 3 Assembly of the pedal Assemble the pedal (12) to the main frame (3) and to the rear connecting frame (4) using one screw (43), one washer (56) and one nut (59) each.
  • Page 14 Step 4 Assembly of the seat and and leg adjustment bracket Assemble the seat adjustment bracket (9) to the seat frame (7) using one screw (47), one spring washer (52) and one washer (56). CAUTION ⚠ For the following step make sure that the pin audibly engages in one of the adjustment holes. Slide the leg pad adjustment bracket (6) into the main fraim (3) using the adjustment pin.
  • Page 15 Step 5 Assembly of the barbel drivepipes and the bearing pieces Slide the barbel drivepipes (10) into the respective holes of the left and right frame (1 & 2). Slide one rubber bumper (35) onto each end of the barbel drivepipes (10). Fix the barbel drivepipes (10) using the screw (42).
  • Page 16 Step 6 Assembly of the cushions Assemble the back cushion (16) to the back frame (5) using six screws (45), six spring washers (51) and six washers (55). Assemble the seat pad (15) to the seat frame (7) using four screws (45), four spring washers (51) and four washers (55).
  • Page 17 Step 7 Assembly of the pads Assemble the two short tube pads (38) to the leg adjustment bracket (6) along with one bearing plate (24) using one screw (47), one spring washer (52) and one washer (56) each.
  • Page 18 STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑...
  • Page 19 TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner.
  • Page 20 Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Screw connections Cushions Legend: C = clean;...
  • Page 21 RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes.
  • Page 22 The serial number of your equipment is unique. It's located on a white sticker. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / weight bench Model Name: Taurus  Elite Adjustable FID Bench SKU: SEBR7020 Adjustable FID Bench...
  • Page 23 Parts List Name Specification Qty. Left frame Right frame Main frame Connect frame Back frame Leg pad adjustment bracket Seat frame Horizontal connect frame Seat adjustment bracket Barbell drivepipe Back supporting tube Pedal Mandrel Pilot plunger Seat pad Back cushion Scaleboard Rubber foot Iron base bushing...
  • Page 24 M8 Rotary knob Elliptical tube stopper PT30*60*2.5 Rubber bumper Φ25*Φ14*15.2 Rubber bumper Φ75*Φ47.6*25 Barbell drivepipe Φ45*Φ37.5*215 Barbell drivepipe Φ45*Φ37.5*115 Short tube pad Endcap Cross recess pan head screw M4*10 Cross recessed countersunk head screw M6*16 Hexagon socket set screws with flat point M6*5 Description Specifications...
  • Page 25 Exploded Drawing...
  • Page 26 WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
  • Page 27 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
  • Page 28 CONTACT TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de �� �� Åbningstider kan findes på...
  • Page 29 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Sport-Tiedje Group is Europe’s largest http://www.powerhouse-fitness.co.uk/ specialist for home fitness equipment with www.powerhouse-fitness.co.uk/blog/ currently 80 stores and one of the world’s most renowned online mail order companies for fitness equipment. https://www.facebook.com/powerhousefitness.co.uk Powerhouse Fitness is part of the Sport-Tiedje Group.Private customers order via the 25 web shops in the respective national language or have their desired equpiment assembled on...
  • Page 30 Notes Adjustable FID Bench...
  • Page 32 Taurus Elite Adjustable FID Bench...
