Summary of Contents for Taurus SEBR2726

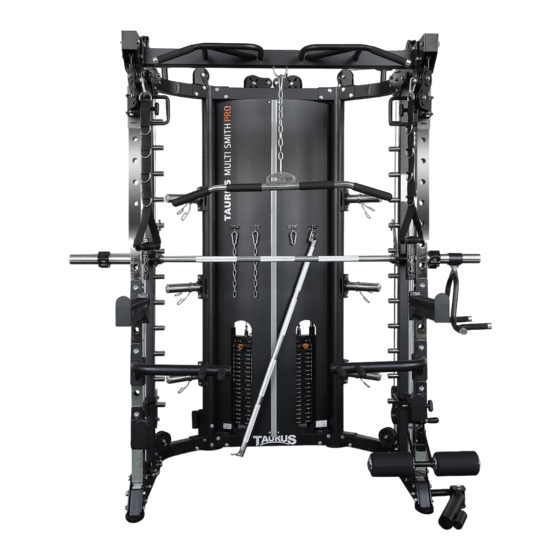

- Page 1 Assembly and Operating Instructions ~ 210 Min. 400 kg L 148 | W 201 | H 224 SEBR2726.01.04 SKU: SEBR2726 TF TF- Taurus Multi Smith Machine Pro...
- Page 2 Multi Smith Pro...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly Optional Accessories 2.4.1 Scope of Delivery - Leg Press 2.4.2 Assembly - Leg Press 2.4.3 Scope of Delivery - Jammer Arm 2.4.4 Assembly - Jammer Arm STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE... - Page 4 Multi Smith Pro...
- Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight and dimensions: Packaging dimensions (L x W x H) and weight approx: Box 1 221 cm x 96 cm x 38 cm 239 kg Box 2 (2x) 28 cm x 20 cm x 12 cm 19 kg Box 3 (6x) 28 cm x 20 cm x 12 cm... -
Page 8: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 11: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠... - Page 12 Multi Smith Pro...
- Page 14 Multi Smith Pro...
- Page 16 Multi Smith Pro...
- Page 18 Multi Smith Pro...
- Page 20 Multi Smith Pro...
- Page 22 Multi Smith Pro...
-
Page 24: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Mount the left bending tube (4) to the left upright frame (2) using two hexagon bolts (9), four... - Page 26 Step 2: Slide the left sliding tube (21) onto the left tube (18). Slide the right sliding tube (20) onto the right tube (17). Mount the upright tubes (16) to the bending tubes (4 & 5) together with the four lower plates (19) using a total of seven hexagon bolts (9), 14 washers (11) and seven lock nuts (10).
- Page 28 Step 3: Mount the lower base (25) on the left and right to the lower plates (19) using two hexagon bolts (33), four washers (11) and two lock nuts (10) each. Mount the upper base (26) on the left and right to the upper plates (13) using two hexagon bolts (33), four washers (11) and two lock nuts (10) each.
- Page 30 Step 4: Insert the guide rods (45) into the slots of the connection tube (1). Place a rubber pad (44) on each of the guide rods (45). Slide the weight plates of the weight block (47) one by one onto the guide rods (45). Insert the selector rod (90) into the weight block (47).
- Page 32 Step 5: Connect the cable (49) to the weight (55) and slide it into the upright frame (2). Guide the cable (49) along the illustrated points and mount the pulleys (50) to the respective pulley brackets. Mount the first pulley (5) with the pulley plate (51) to the brackt with a hexagon bolt (53), two washers (11) and a lock nut (10).
- Page 34 Step 6: Fix the cable (56) to the upper plate (13) with a hexagon bolt (54), two washers (11) and a lock nut (10). Guide the cable (56) along the illustrated points and mount the pulleys (50) to the respective pulley brackets.
- Page 36 Step 7: Screw the threaded end of the cable (60) into the socket on the weight block and guide the cable (6) upwards trough the upper connection tube. Mount a pulley (50) and a small pulley (59) to the bracket on the upper connection tube using a hexagon bolt (52), two washers (11) and a lock nut (10) each.
- Page 38 Step 8: Mount the left and right shield (63 & 64) together with the connection strap (62) to the connection tubes (1 & 6) using a total of four hexgon bolts (65) and four washers (66). Mount the left and right shield (63 & 64) to the left and right upright frame (2 & 3) using a total of six hexagon bolts (65) and six washers (66).
- Page 40 Step 9: Mount the core trainer (72) together with two sleeves (73) to the lower plate (19) using a hexagon bolt (54) and a big washer (75). Mount the barbell rod cup (74) to the right upright frame (3) using two hexagon bolts (76), four washers (11) and two lock nuts (10).
- Page 42 Step 10: Attach the leg curl tube (83) to the short barbell rod holder (81) with the pin (88). Attach the accessories to the multi gym. This included the following parts: dip bar left and right (77 & 78) barbell rod holder left and right (79 & 80) shport barbell rod holder left and right (81 &...
-
Page 44: Optional Accessories
Optional Accessories 2.4.1 Scope of Delivery - Leg Press The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. -
Page 45: Scope Of Delivery - Jammer Arm
2.4.3 Scope of Delivery - Jammer Arm The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. - Page 46 PART NAME QTY. push arm push arm fix frame handle push arm connection shaft T shape pin-black butterfly clip Multi Smith Pro...
-
Page 47: Assembly - Jammer Arm
2.4.4 Assembly - Jammer Arm Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. - Page 48 Step 2: Attach the jammer arm with the pin (11) to the tubes of the multi gym, see illustration. Multi Smith Pro...
-
Page 49: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 50: Faults And Fault Diagnosis
Faults and Fault Diagnosis The equipment undergoes regular quality controls during production. Nevertheless, faults or malfunctions may occur. Frequently, individual parts are responsible for these disturbances, an exchange is usually sufficient. Please refer to the following overview for the most common errors and how to correct them. -
Page 51: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 52: Ordering Spare Parts
Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / multi gym Model Name: Multi Smith Pro SKU: SEBR2726 (SEBR2724 & SEBR2725) Multi Smith Pro... -
Page 53: Parts List - Multi Gym
Parts List - Multi Gym Name Specification Qty. connection tube upright frame left upright frame right bending tube left bending tube right upper connection tube upper bending tube right upper bending tube left hexagon bolt M10*75 lock nut washer Φ10 chin up bar upper plate pulley frame tube right... - Page 54 hexagon bolt M10*90 sockect set screw M8*10 end cap Φ51*Φ 42.5*36.6L check ring Φ60*Φ48.5*27L pipe Φ50*310*T0.5 button head socket screw M12*40 spring washer washer Φ12 barbell rod inner pipe Φ48*298*2.5T rubber pad Φ60*Φ26*25 rubber pad Φ60*Φ26*42 guide rod hollow Φ25*1955 reinforcing plate 90KG weight stack 2 group...
- Page 55 hook “+"slotted countersunk head bolt M4*12 lock nut hexagon bolt M8*20 washer Φ8 core trainer powder metallurgy sleeve Φ33.2*Φ 29*Φ20*18 barbell rod cup big washer Φ25*Φ10*2.0 hexagon bolt M10*95 dip bar left dip bar right barbell rod holder right barbell rod holder left barbell rod holder short left barbell rod holder short right leg curl tube...
-
Page 56: Exploded Drawing - Multi Gym
Exploded Drawing - Multi Gym Multi Smith Pro... -
Page 57: Parts List - Jammer Arm
Parts List - Jammer Arm Name Specification Qty. push arm push arm fix frame handle push arm connection shaft Φ25*56 hexagon socket bolt button head screws M12*25 washer Φ12 spring gasket Φ12 hexagon socket button head screws M10*20 washer Φ10 washer T shape pin -black Φ10*75... -
Page 58: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 59 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 60: Contact
CONTACT TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de �� �� Åbningstider kan findes på... - Page 61 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Sport-Tiedje Group is Europe’s largest http://www.powerhouse-fitness.co.uk/ specialist for home fitness equipment with www.powerhouse-fitness.co.uk/blog/ currently 80 stores and one of the world’s most renowned online mail order companies for fitness equipment. https://www.facebook.com/powerhousefitness.co.uk Powerhouse Fitness is part of the Sport-Tiedje Group.Private customers order via the 25 web shops in the respective national language or have their desired equpiment assembled on...
- Page 62 Notes Multi Smith Pro...
- Page 64 Taurus Multi Smith Machine Pro...
