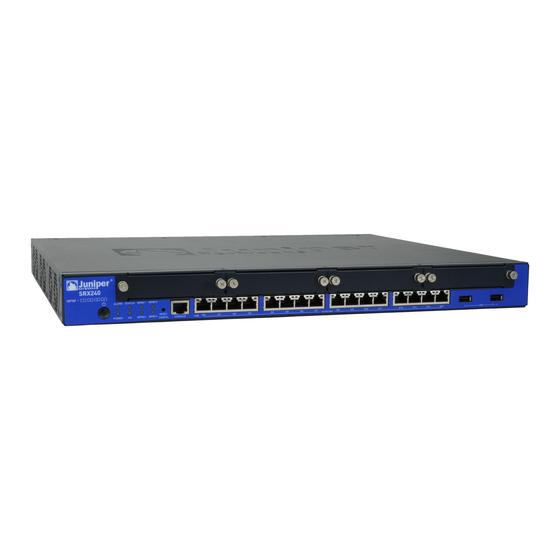

SRX Series Services Gateways for the
Branch Physical Interface Modules
Reference
Published
2020-11-10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRX Series and is the answer not in the manual?

Questions and answers

Related Manuals for Juniper SRX Series

Summary of Contents for Juniper SRX Series

  • Page 1 SRX Series Services Gateways for the Branch Physical Interface Modules Reference Published 2020-11-10...
  • Page 2 END USER LICENSE AGREEMENT The Juniper Networks product that is the subject of this technical documentation consists of (or is intended for use with) Juniper Networks software. Use of such software is subject to the terms and conditions of the End User License Agreement (“EULA”) posted at https://support.juniper.net/support/eula/.

  • Page 3: Table Of Contents

    SRX Series Services Gateway Interface Modules and Compatibility | 10 MTU Default and Maximum Values for Physical Interface Modules | 12 Power over Ethernet Support on SRX Series Services Gateway Interfaces | 15 SRX Series Services Gateway Interfaces Power and Heat Requirements | 17...
  • Page 4 8-Port Serial GPIM Interface Specifications | 27 Dual CT1/E1 GPIM Network Interface Specifications | 29 Quad CT1/E1 GPIM Network Interface Specifications | 30 Interface Module Descriptions 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module | 33 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module Overview | 33 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module Key Features | 34 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module Hardware Specifications | 35 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module LEDs | 35...
  • Page 5 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module | 57 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Overview | 57 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Key Features | 58 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Hardware Specifications | 59 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module LEDs | 60 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Supported Standards | 61 1-Port Serial Mini-Physical Interface Module | 62 1-Port Serial Mini-Physical Interface Module Overview | 62...
  • Page 6 1-Port Clear Channel DS3/E3 GPIM Supported Standards | 81 1-Port Clear Channel DS3/E3 GPIM Supported Loopback Diagnostics | 81 2-Port 10-Gigabit Ethernet XPIM | 83 2-Port 10-Gigabit Ethernet XPIM Overview | 83 2-Port 10-Gigabit Ethernet XPIM Components | 84 2-Port 10-Gigabit Ethernet XPIM Key Features | 87 2-Port 10 Gigabit Ethernet XPIM Hardware Specifications | 88 2-Port 10 Gigabit Ethernet XPIM LEDs | 90 8-Port Gigabit Ethernet SFP XPIM | 92...
  • Page 7 24-Port Gigabit Ethernet XPIM | 111 24-Port Gigabit Ethernet XPIM Overview | 111 24-Port Gigabit Ethernet XPIM Components | 112 24-Port Gigabit Ethernet XPIM Key Features | 115 24-Port Gigabit Ethernet XPIM Hardware Specifications | 116 24-Port Gigabit Ethernet XPIM LEDs | 117 Dual CT1/E1 GPIM | 119 Dual CT1/E1 GPIM Overview | 119 Dual CT1/E1 GPIM Components | 120...
  • Page 8 viii G.SHDSL Mini-Physical Interface Module Cable Specifications | 135 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Cable Specifications | 135 VDSL2 Mini-Physical Interface Module Cable Specifications | 141 1-Port VDSL2 (Annex A) Mini-Physical Interface Module Cable Specifications | 141 Serial Mini-Physical Interface Module Cable Specifications | 143 1-Port Serial Mini-Physical Interface Module Interface Cables | 143 EIA-530A DCE Cable Pinouts for the 1-Port Serial Mini-Physical Interface Module | 144 EIA-530A DTE Cable Pinouts for the 1-Port Serial Mini-Physical Interface Module | 145...
  • Page 9 Configuration Configuring Mini-Physical Interface Modules | 196 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module Basic Configuration | 196 Using the J-Web Interface | 197 Using the CLI | 198 1-Port SFP Mini-Physical Interface Module Basic Configuration | 199 Using the J-Web Interface | 200 Using the CLI | 201 1-Port ADSL2+ Mini-Physical Interface Module Basic Configuration | 201 Using the J-Web Interface | 202...
  • Page 10 Removing a Blank Mini-Physical Interface Module Faceplate from the SRX Series Services Gateway | 246 Installing a Mini-Physical Interface Module in the SRX Series Services Gateway | 247 Removing a Mini-Physical Interface Module from the SRX Series Services Gateway | 249...
  • Page 11 SRX Series Services Gateway GPIM Serial Number Label | 263 Information You Might Need to Supply to JTAC | 263 Required Tools and Parts for Packing the SRX Series Services Gateway Hardware Components | 264 Packing the SRX Series Services Gateway Hardware Components for Shipment | 264...

  • Page 12: About The Documentation

    If the information in the latest release notes differs from the information in the documentation, follow the product Release Notes. Juniper Networks Books publishes books by Juniper Networks engineers and subject matter experts. These books go beyond the technical documentation to explore the nuances of network architecture, deployment, and administration.

  • Page 13: Merging A Full Example

    xiii If the example configuration contains the top level of the hierarchy (or multiple hierarchies), the example is a full example. In this case, use the load merge command. If the example configuration does not start at the top level of the hierarchy, the example is a snippet. In this case, use the load merge relative command.

  • Page 14: Merging A Snippet

    Merging a Snippet To merge a snippet, follow these steps: 1. From the HTML or PDF version of the manual, copy a configuration snippet into a text file, save the file with a name, and copy the file to a directory on your routing platform. For example, copy the following snippet to a file and name the file ex-script-snippet.conf.
  • Page 15 Table 1: Notice Icons Icon Meaning Description Informational note Indicates important features or instructions. Caution Indicates a situation that might result in loss of data or hardware damage. Warning Alerts you to the risk of personal injury or death. Laser warning Alerts you to the risk of personal injury from a laser.
  • Page 16 Table 2: Text and Syntax Conventions (continued) Convention Description Examples Italic text like this Represents variables (options for Configure the machine’s domain which you substitute a value) in name: commands or configuration [edit] statements. root@# set system domain-name domain-name Text like this Represents names of configuration To configure a stub area, include statements, commands, files, and...

  • Page 17: Documentation Feedback

    URL or page number, and software version (if applicable). Requesting Technical Support Technical product support is available through the Juniper Networks Technical Assistance Center (JTAC). If you are a customer with an active Juniper Care or Partner Support Services support contract, or are...

  • Page 18: Self-Help Online Tools And Resources

    JTAC hours of operation—The JTAC centers have resources available 24 hours a day, 7 days a week, 365 days a year. Self-Help Online Tools and Resources For quick and easy problem resolution, Juniper Networks has designed an online self-service portal called the Customer Support Center (CSC) that provides you with the following features: Find CSC offerings: https://www.juniper.net/customers/support/...

  • Page 19: Overview

    PART Overview SRX Series Services Gateway Interface Modules Support | 2 Network Interface Specifications | 19...

  • Page 20: Srx Series Services Gateway Interface Modules Support

    Gateway for the branch. You can easily insert or remove Mini-PIMs and GPIMs from the front slots of the SRX Series Services Gateway chassis. The Mini-PIMs and GPIMs provide physical connections to a LAN or a WAN. The Mini-PIMs and GPIMs receive incoming packets from the network and transmit outgoing packets to the network.

  • Page 21: Interfaces Port Naming Conventions Srx Series Services Gateways

    The name of each network interface has the following format to identify the physical device that corresponds to a single physical network connector: type-slot/pim/port For SRX Series Services Gateways, pim equals 0 for the port-naming convention. Table 3 on page 3 lists the typical interface types and interface numbers.
  • Page 22 Table 3: SRX Series Services Gateway Interface Port Number Examples (continued) Interface Type Interface Number Example 8-Port Serial GPIM se–1/0/0 through se–1/0/7 8-Port Gigabit Ethernet small form-factor pluggable (SFP) ge–3/0/0 through ge–3/0/7 XPIM NOTE: The SRX550 and the SRX650 Services Gateways have high gigabit and non-high gigabit slots.

  • Page 23: Supported Srx Series Services Gateway Interfaces

    SRX Series Services Gateway Gigabit-Backplane Physical Interface Modules Overview | 7 Supported SRX Series Services Gateway Interfaces | 5 Supported SRX Series Services Gateway Interfaces The SRX Series Services Gateways support the following Mini-Physical Interface Modules (Mini-PIMs): 1-Port Small Form-Factor Pluggable (SFP) 1-Port Gigabit Ethernet Small Form-Factor Pluggable (SFP)

  • Page 24: Srx Series Services Gateway Mini-Physical Interface Modules Overview

    T1/E1 VDSL2 The SRX Series Services Gateways support the following Gigabit-Backplane Physical Interface Modules (GPIMs/XPIMs): Dual CT1/E1 GPIM Quad CT1/E1 GPIM 1-Port Clear Channel DS3/E3 GPIM 8-Port Serial GPIM 2-Port 10 Gigabit Ethernet XPIM 8-Port Gigabit Ethernet SFP XPIM 16-Port Gigabit Ethernet XPIM...

  • Page 25: Srx Series Services Gateway Gigabit-Backplane Physical Interface Modules Overview

    SRX-MP-1T1E1 VDSL2 Mini-PIM SRX-MP-1VDSL2-A (Annex A) The Mini-PIMs supported on the SRX Series Services Gateway are field-replaceable. You can install a Mini-PIM in the Mini-PIM slot on the front panel of the services gateway chassis. CAUTION: The Mini-PIMs available on the SRX Series Services Gateway are not hot-swappable.
  • Page 26 4), and slot 6 among the top four standard slots (slots 5 through 8). Table 5 on page 8 lists the GPIMs and XPIMs and their respective model numbers. Table 5: SRX Series Services Gateway GPIM/XPIM Model Numbers GPIM or XPIM Model Number...
  • Page 27 Table 5: SRX Series Services Gateway GPIM/XPIM Model Numbers (continued) GPIM or XPIM Model Number 2-Port 10-Gigabit Ethernet XPIM SRX-GP-2XE-SFPP-TX 8-Port Gigabit Ethernet SFP XPIM SRX-GP-8SFP 16-Port Gigabit Ethernet XPIM SRX-GP-16GE 16-Port Gigabit Ethernet XPIM (with PoE) SRX-GP-16GE-POE 24-Port Gigabit Ethernet XPIM...

  • Page 28: Srx Series Services Gateway Interface Modules And Compatibility

    Removing a Blank Gigabit-Backplane Physical Interface Module Faceplate from the SRX Series Services Gateway | 253 Installing a Gigabit-Backplane Physical Interface Module on the SRX Series Services Gateway | 253 Installing a Double-High, Double-Wide Gigabit-Backplane Physical Interface Module on the SRX Series...
  • Page 29 Junos OS Release 10.3 Junos OS Release Junos OS Release 10.1 10.1 12.1 Table 7 on page 12 shows the types of Gigabit-Backplane Physical Interface Modules (GPIMs and XPIMs), along with the SRX Series devices and the Junos OS Releases that support them.

  • Page 30: Mtu Default And Maximum Values For Physical Interface Modules

    SRX Series Services Gateway Interfaces Power and Heat Requirements | 17 MTU Default and Maximum Values for Physical Interface Modules Table 8 on page 13 lists maximum transmission unit (MTU) values for the SRX Series Services Gateways Physical Interface Modules (PIMs).
  • Page 31 Table 8: MTU Values for the SRX Series Services Gateways PIMs Physical Interface MTU Logical Interface MTU (Bytes)-Default (Bytes)-Default Maximum MTU (Bytes) 1-Port Gigabit Ethernet 1514 1500 9010 small form-factor pluggable (SFP) Mini-PIM 1-Port small form-factor 1514 1500 1518 pluggable (SFP) Mini-PIM...
  • Page 32 atm-nlpid 1512 1508 1512 atm-cisco-nlpid 1512 1510 1512 ether-over-atm-llc 1512 1488 1512 atm-ppp-llc 1512 1506 1512 atm-ppp-vcmux 1512 1510 1512 atm-mlppp-llc 1512 1500 1512 ppp-over-ether-over-atm-llc 1512 1480 1512 VDSL- Mini-PIM AT mode (Encapsulation) atm-snap 1514 1506 1514 atm-vcmux 1514 1514 1514 atm-nlpid 1514...

  • Page 33: Power Over Ethernet Support On Srx Series Services Gateway Interfaces

    1492 4482 RELATED DOCUMENTATION SRX Series Services Gateway Mini-Physical Interface Modules Overview | 6 Supported SRX Series Services Gateway Interfaces | 5 SRX Series Services Gateway Interface Modules and Compatibility | 10 Power over Ethernet Support on SRX Series Services Gateway Interfaces Power over Ethernet (PoE) supports the implementation of the IEEE 802.3 af and IEEE 802.3 at standards,...
  • Page 34 16-Port Gigabit Ethernet XPIM Overview | 104 24-Port Gigabit Ethernet XPIM Overview | 111 Installing a Gigabit-Backplane Physical Interface Module on the SRX Series Services Gateway | 253 Installing a Double-High, Double-Wide Gigabit-Backplane Physical Interface Module on the SRX Series...

  • Page 35: Srx Series Services Gateway Interfaces Power And Heat Requirements

    1-Port Clear Channel DS3/E3 GPIM 22.89 2-Port 10 Gigabit Ethernet XPIM 8-Port Gigabit Ethernet SFP XPIM 16-Port Gigabit Ethernet XPIM 40 (without PoE) 24-Port Gigabit Ethernet XPIM 40 (without PoE) RELATED DOCUMENTATION SRX Series Services Gateway Mini-Physical Interface Modules Overview | 6...
  • Page 36 SRX Series Services Gateway Gigabit-Backplane Physical Interface Modules Overview | 7 Supported SRX Series Services Gateway Interfaces | 5 SRX Series Services Gateway Interface Modules and Compatibility | 10...

  • Page 37: Network Interface Specifications

    CHAPTER 2 Network Interface Specifications IN THIS CHAPTER 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module Network Interface Specifications | 19 1-Port SFP Mini-Physical Interface Module Network Interface Specifications | 20 1-Port ADSL2+ Mini-Physical Interface Module Network Interface Specifications | 21 1-Port DOCSIS Mini-Physical Interface Module Network Interface Specifications | 22 1-Port T1/E1 Mini-Physical Interface Module Network Interface Specifications | 23 1-Port Clear Channel DS3/E3 GPIM Network Interface Specifications | 25...

  • Page 38: 1-Port Sfp Mini-Physical Interface Module Network Interface Specifications

    Table 11: 1-Port Gigabit Ethernet SFP Mini-PIM Network Interface Specifications (continued) Specification 1-Port Gigabit Ethernet SFP Mini-PIM Loopback diagnostic feature Supported Autonegotiation Supported RELATED DOCUMENTATION 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module Overview | 33 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module Hardware Specifications | 35 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module Key Features | 34 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module Supported Modules | 36 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module LEDs | 35...

  • Page 39: 1-Port Adsl2+ Mini-Physical Interface Module Network Interface Specifications

    1-Port SFP Mini-Physical Interface Module Overview | 39 1-Port SFP Mini-Physical Interface Module Hardware Specifications | 41 MTU Default and Maximum Values for Physical Interface Modules | 12 1-Port SFP Mini-Physical Interface Module Supported Modules | 42 1-Port SFP Mini-Physical Interface Module Key Features | 40 1-Port SFP Mini-Physical Interface Module LEDs | 42 1-Port SFP Mini-Physical Interface Module Basic Configuration | 199 1-Port ADSL2+ Mini-Physical Interface Module Network Interface...

  • Page 40: 1-Port Docsis Mini-Physical Interface Module Network Interface Specifications

    Table 13: 1-Port ADSL2+ Mini-PIM Network Interface Specifications (continued) Specifications Values Supported maximum speed For ANSI DMT, 8 Mbps downstream and 896 Kbps upstream For G.992.1, 8 Mbps downstream and 1.2 Mbps upstream For G.992.3, 12 Mbps (Annex A) or 10 Mbps (Annex B) downstream and 1.2 Mbps Upstream For G.992.5, 24 Mbps downstream and 1.2 Mbps upstream Supported ATM QoS...

  • Page 41: 1-Port T1/E1 Mini-Physical Interface Module Network Interface Specifications

    Table 14: 1-Port DOCSIS Mini-PIM Network Interface Properties Specifications Downstream Upstream Modulation 64 or 256 quadrature amplitude Quadrature Phase Shift Keying (QPSK) and 8, modulation (QAM) 16, 32, 64, 128 QAM Bandwidth 6 MHz (US) 200 kHz, 400 kHz, 800 kHz, 1.6 MHz, 3.2 MHz, 6.4 MHz Symbol rate 64 QAM 5.057 Msym/s, 256 QAM...
  • Page 42 Table 15: 1-Port T1/E1 Mini-PIM Network Interface Specifications Specification T1 Specification E1 Specifications Network interface specifications Transmit bit rate 1.544 Mbps 2.048 Mbps Receive bit rate 1.544 Mbps 2.048 Mbps Line encoding AMI/B8ZS HDB3 Mode Framed Clear Channel Framed Clear Channel, Unframed Clear Channel Fractional Framing Superframe (D4/SF), Extended...

  • Page 43: 1-Port Clear Channel Ds3/E3 Gpim Network Interface Specifications

    1-Port Clear Channel DS3/E3 GPIM Network Interface Specifications The 1-Port Clear Channel DS3/E3 Gigabit-Backplane Physical Interface Module (GPIM) provides the network interface specifications for DS3 or E3 modes, listed in Table 16 on page Table 16: 1-Port Clear Channel DS3/E3 GPIM Network Interface Specifications Description DS3 Mode E3 Mode...

  • Page 44: 8-Port Gigabit Ethernet Sfp Xpim Network Interface Specifications

    Table 16: 1-Port Clear Channel DS3/E3 GPIM Network Interface Specifications (continued) Description DS3 Mode E3 Mode Error counters Incremented during a periodic 1-second Incremented during a periodic 1-second polling routine: polling routine: Line Code Violations (LCV) Frame Alignment Error (FAE) P-bit Code Violations (PCV) Bipolar Coding Violations (BCV) C-bit Code Violations (CCV)

  • Page 45: 8-Port Serial Gpim Interface Specifications

    Table 17: 8-Port Gigabit Ethernet SFP XPIM Network Interface Specifications (continued) Network Interface Specification Value Operating speed 10/100/1000 Mbps VLAN support 802.1Q virtual LANs Class-of-service support Supported Encapsulations DIX, LLC/SNAP, CCC, TCC, and VLAN-CCC Loopback diagnostic feature Supported Autonegotiation Supported RELATED DOCUMENTATION 8-Port Gigabit Ethernet SFP XPIM Overview | 92 8-Port Gigabit Ethernet SFP XPIM Hardware Specifications | 95...
  • Page 46 Table 18: 8-Port Serial GPIM Network Interface Specifications (continued) Description Specification Line Protocols EIA-530 EIA-530A EIA-449 RS-232 V.35 X.21 Modes data terminal equipment (DTE) clear to send (CTS) data carrier detect (DCD) data set ready (DSR) data circuit-terminating equipment (DCE) request to send (RTS) data terminal ready (DTR) Synchronous Tx/Rx rate/port...

  • Page 47: Dual Ct1/E1 Gpim Network Interface Specifications

    8-Port Serial GPIM Key Features | 101 8-Port Serial GPIM LEDs | 103 8-Port Serial GPIM Interface Cables | 157 8-Port Serial GPIM Basic Configuration | 225 Dual CT1/E1 GPIM Network Interface Specifications The Dual CT1/E1 Gigabit-Backplane Physical Interface Module (GPIM) provides the network interface specifications specific to T1 or E1 modes, listed in Table 19 on page Table 19: Dual CT1/E1 GPIM Network Interface Specifications...

  • Page 48: Quad Ct1/E1 Gpim Network Interface Specifications

    Quad CT1/E1 GPIM Network Interface Specifications The Quad CT1/E1 Gigabit-Backplane Physical Interface Module (GPIM) provides the network interface specifications specific to T1 or E1 modes, listed in Table 20 on page Table 20: Quad CT1/E1 GPIM Network Interface Specifications Description T1 Mode E1 Mode Network Interface Specifications...

  • Page 49: Interface Module Descriptions

    PART Interface Module Descriptions 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module | 33 1-Port SFP Mini-Physical Interface Module | 39 1-Port ADSL2+ Mini-Physical Interface Module | 45 1-Port DOCSIS Mini-Physical Interface Module | 51 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module | 57 1-Port Serial Mini-Physical Interface Module | 62 1-Port T1/E1 Mini-Physical Interface Module | 66 1-Port VDSL2 (Annex A) Mini-Physical Interface Module | 72...
  • Page 50 Quad CT1/E1 GPIM | 123...

  • Page 51: 1-Port Gigabit Ethernet Sfp Mini-Physical Interface Module

    CHAPTER 3 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module IN THIS CHAPTER 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module Overview | 33 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module Key Features | 34 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module Hardware Specifications | 35 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module LEDs | 35 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module Supported Modules | 36 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module Overview...

  • Page 52: 1-Port Gigabit Ethernet Sfp Mini-Physical Interface Module Key Features

    Autonegotiation CAUTION: If you face a problem running a Juniper Networks device that uses a third-party optic or cable, the Juniper Networks Technical Assistance Center (JTAC) can help you diagnose the source of the problem. Your JTAC engineer might recommend that you check the third-party optic or cable and potentially replace it with an equivalent Juniper Networks optic or cable that is qualified for the device.

  • Page 53: 1-Port Gigabit Ethernet Sfp Mini-Physical Interface Module Hardware Specifications

    1-Port Gigabit Ethernet SFP Mini-Physical Interface Module Hardware Specifications Table 21 on page 35 gives the physical specifications of the 1-Port Gigabit Ethernet Small Form-Factor Pluggable Mini-Physical Interface Module (SFP Mini-PIM). Table 21: 1-Port Gigabit Ethernet SFP Mini-PIM Physical Specifications Description Value Dimensions (H x W x L)

  • Page 54: 1-Port Gigabit Ethernet Sfp Mini-Physical Interface Module Supported Modules

    1-port small form-factor pluggable (SFP) modules. Table 23 on page 36 shows the supported 1-Port Gigabit Ethernet SFP modules. Table 23: Supported 1-Port Gigabit Ethernet SFP Mini-Physical Interface Modules Juniper Product Number Connector Type (SFP Transceiver) Cable SRX-SFP-FE-FX 100BASE-FX EX-SFP-1FE-FX...
  • Page 55 RX1310 nm) CAUTION: If you face a problem running a Juniper Networks device that uses a third-party optic or cable, the Juniper Networks Technical Assistance Center (JTAC) can help you diagnose the source of the problem. Your JTAC engineer might recommend that you check the third-party optic or cable and potentially replace it with an equivalent Juniper Networks optic or cable that is qualified for the device.
  • Page 56 RELATED DOCUMENTATION 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module Overview | 33 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module Hardware Specifications | 35 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module Network Interface Specifications | 19 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module Key Features | 34 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module LEDs | 35 1-Port Gigabit Ethernet SFP Mini-Physical Interface Module Basic Configuration | 196...

  • Page 57: 1-Port Sfp Mini-Physical Interface Module

    CHAPTER 4 1-Port SFP Mini-Physical Interface Module IN THIS CHAPTER 1-Port SFP Mini-Physical Interface Module Overview | 39 1-Port SFP Mini-Physical Interface Module Key Features | 40 1-Port SFP Mini-Physical Interface Module Hardware Specifications | 41 1-Port SFP Mini-Physical Interface Module LEDs | 42 1-Port SFP Mini-Physical Interface Module Supported Modules | 42 1-Port SFP Mini-Physical Interface Module Overview The 1-Port small form-factor pluggable Mini-Physical Interface Module (SFP Mini-PIM) provides connectivity...

  • Page 58: 1-Port Sfp Mini-Physical Interface Module Key Features

    1-Port SFP Mini-Physical Interface Module Key Features The 1-Port small form-factor pluggable Mini-Physical Interface Module (SFP Mini-PIM) has the following key features: Enables you to install and remove transceivers without powering down the device Provides real-time visual status of connectivity and traffic flows Provides Link Up/Down alarm Supports the following transceiver types: 1000BASE-SX...

  • Page 59: 1-Port Sfp Mini-Physical Interface Module Hardware Specifications

    CAUTION: If you face a problem running a Juniper Networks device that uses a third-party optic or cable, the Juniper Networks Technical Assistance Center (JTAC) can help you diagnose the source of the problem. Your JTAC engineer might recommend that you check the third-party optic or cable and potentially replace it with an equivalent Juniper Networks optic or cable that is qualified for the device.

  • Page 60: 1-Port Sfp Mini-Physical Interface Module Leds

    1-Port SFP Mini-Physical Interface Module Supported Modules | 42 1-Port SFP Mini-Physical Interface Module Key Features | 40 1-Port SFP Mini-Physical Interface Module LEDs | 42 1-Port SFP Mini-Physical Interface Module Basic Configuration | 199 1-Port SFP Mini-Physical Interface Module LEDs The 1-Port Small Form-Factor Pluggable Mini-Physical Interface Module (SFP Mini-PIM) has two LEDs located to the right of the socket.
  • Page 61 Table 26: 1-Port SFP Mini-Physical Interface Modules Product Number Interface Type Connector JX-SFP-1GE-LX 1000BASE-LX SRX-SFP-1GE-LX JX-SFP-1GE-SX 1000BASE-SX SRX-SFP-1GE-SX JX-SFP-1FE-FX 100BASE-FX SRX-SFP-FE-FX JX-SFP-1GE-LH 1000BASE-LH SRX-SFP-1GE-LH JX-SFP-1GE-LX 1000BASE-LX SRX-SFP-1GE-LX JX-SFP-1GE-SX 1000BASE-SX SRX-SFP-1GE-SX JX-SFP-1GE-T 1000BASE-T, Copper Transceiver CAT-5e SRX-SFP-1GE-T EX-SFP-GE10KT13R14 1000BASE-BX, at 10 km (TX1310 nm / RX1490 nm) EX-SFP-GE10KT13R15 1000BASE-BX, at 10 km (TX1310 nm /...
  • Page 62 RX1310 nm) CAUTION: If you face a problem running a Juniper Networks device that uses a third-party optic or cable, the Juniper Networks Technical Assistance Center (JTAC) can help you diagnose the source of the problem. Your JTAC engineer might recommend that you check the third-party optic or cable and potentially replace it with an equivalent Juniper Networks optic or cable that is qualified for the device.

  • Page 63: 1-Port Adsl2+ Mini-Physical Interface Module

    CHAPTER 5 1-Port ADSL2+ Mini-Physical Interface Module IN THIS CHAPTER 1-Port ADSL2+ Mini-Physical Interface Module Overview | 45 1-Port ADSL2+ Mini-Physical Interface Module Key Features | 46 1-Port ADSL2+ Mini-Physical Interface Module Hardware Specifications | 47 1-Port ADSL2+ Mini-Physical Interface Module LEDs | 48 1-Port ADSL2+ Mini-Physical Interface Module Supported Standards | 48 1-Port ADSL2+ Mini-Physical Interface Module Supported Loopback Diagnostics | 49 1-Port ADSL2+ Mini-Physical Interface Module Overview...

  • Page 64: 1-Port Adsl2+ Mini-Physical Interface Module Key Features

    Figure 9: ADSL2+ Annex B Mini-PIM Front Panel RELATED DOCUMENTATION 1-Port ADSL2+ Mini-Physical Interface Module Hardware Specifications | 47 1-Port ADSL2+ Mini-Physical Interface Module Network Interface Specifications | 21 1-Port ADSL2+ Mini-Physical Interface Module Supported Standards | 48 1-Port ADSL2+ Mini-Physical Interface Module Key Features | 46 1-Port ADSL2+ Mini-Physical Interface Module LEDs | 48 1-Port ADSL2+ Mini-Physical Interface Module Supported Loopback Diagnostics | 49 1-Port ADSL2+ Mini-Physical Interface Module Basic Configuration | 201...

  • Page 65: 1-Port Adsl2+ Mini-Physical Interface Module Hardware Specifications

    1-Port ADSL2+ Mini-Physical Interface Module Hardware Specifications | 47 1-Port ADSL2+ Mini-Physical Interface Module Network Interface Specifications | 21 1-Port ADSL2+ Mini-Physical Interface Module Supported Standards | 48 1-Port ADSL2+ Mini-Physical Interface Module LEDs | 48 1-Port ADSL2+ Mini-Physical Interface Module Supported Loopback Diagnostics | 49 1-Port ADSL2+ Mini-Physical Interface Module Basic Configuration | 201 1-Port ADSL2+ Mini-Physical Interface Module Hardware Specifications Table 27 on page 47...

  • Page 66: 1-Port Adsl2+ Mini-Physical Interface Module Leds

    1-Port ADSL2+ Mini-Physical Interface Module Supported Loopback Diagnostics | 49 1-Port ADSL2+ Mini-Physical Interface Module Basic Configuration | 201 1-Port ADSL2+ Mini-Physical Interface Module LEDs The 1-Port ADSL2+ Mini-Physical Interface Module (Mini-PIM) has two LEDs. Table 28 on page 48 describes the LED states.

  • Page 67: 1-Port Adsl2+ Mini-Physical Interface Module Supported Loopback Diagnostics

    ANSI T1.413 Issue 2 (Annex A only) ITU G.992.1 (G.dmt) ITU G.992.3 (ADSL2) ITU G.992.5 (ADSL2+) RELATED DOCUMENTATION 1-Port ADSL2+ Mini-Physical Interface Module Overview | 45 1-Port ADSL2+ Mini-Physical Interface Module Hardware Specifications | 47 1-Port ADSL2+ Mini-Physical Interface Module Network Interface Specifications | 21 1-Port ADSL2+ Mini-Physical Interface Module Key Features | 46 1-Port ADSL2+ Mini-Physical Interface Module LEDs | 48 1-Port ADSL2+ Mini-Physical Interface Module Supported Loopback Diagnostics | 49...
  • Page 68 1-Port ADSL2+ Mini-Physical Interface Module LEDs | 48 1-Port ADSL2+ Mini-Physical Interface Module Basic Configuration | 201...

  • Page 69: 1-Port Docsis Mini-Physical Interface Module

    CHAPTER 6 1-Port DOCSIS Mini-Physical Interface Module IN THIS CHAPTER 1-Port DOCSIS Mini-Physical Interface Module Overview | 51 1-Port DOCSIS Mini-Physical Interface Module Key Features | 52 1-Port DOCSIS Mini-Physical Interface Module Hardware Specifications | 53 1-Port DOCSIS Mini-Physical Interface Module LEDs | 54 1-Port DOCSIS Mini-Physical Interface Module Supported Standards | 55 1-Port DOCSIS Mini-Physical Interface Module Overview The Data over Cable System Interface Specifications Mini-Physical Interface Module (1-Port DOCSIS...

  • Page 70: 1-Port Docsis Mini-Physical Interface Module Key Features

    NOTE: (För Sverige och Norge endast) Att ansluta en enhet via en jordad kontakt och/eller via annan utrustning samtidigt som den är kopplad till ett kabel-tv system innebär en brandrisk. För att förebygga detta måste du placera en galvanisk isolator mellan enheten och kabel-tv systemet. The note translates as follows: (For Sweden and Norway only) Connecting a device through a grounded outlet and/or through other equipment while it is also connected to a cable TV system creates a fire risk.

  • Page 71: 1-Port Docsis Mini-Physical Interface Module Hardware Specifications

    RELATED DOCUMENTATION 1-Port DOCSIS Mini-Physical Interface Module Overview | 51 1-Port DOCSIS Mini-Physical Interface Module Supported Standards | 55 1-Port DOCSIS Mini-Physical Interface Module Hardware Specifications | 53 1-Port DOCSIS Mini-Physical Interface Module Network Interface Specifications | 22 1-Port DOCSIS Mini-Physical Interface Module LEDs | 54 1-Port DOCSIS Mini-Physical Interface Module Basic Configuration | 204 1-Port DOCSIS Mini-Physical Interface Module Hardware Specifications Table 29 on page 53...

  • Page 72: 1-Port Docsis Mini-Physical Interface Module Leds

    1-Port DOCSIS Mini-Physical Interface Module LEDs | 54 1-Port DOCSIS Mini-Physical Interface Module Basic Configuration | 204 1-Port DOCSIS Mini-Physical Interface Module LEDs The Data over Cable System Interface Specifications Mini-Physical Interface Module (1-Port DOCSIS Mini-PIM) has five LEDs. Figure 11 on page 54 describes the LEDs available on the 1-Port DOCSIS Mini-PIM.

  • Page 73: 1-Port Docsis Mini-Physical Interface Module Supported Standards

    ONLINE Green Blinking The 1-Port DOCSIS Mini-PIM is establishing a connection to the SRX Series device. The 1-Port DOCSIS Mini-PIM is synchronized with the SRX Series device. RELATED DOCUMENTATION 1-Port DOCSIS Mini-Physical Interface Module Overview | 51...
  • Page 74 NOTE: Ensure that your cable modem service provider has approved the use of 1-Port DOCSIS 3.0 Mini-PIM in your network. The 1-Port DOCSIS Mini-PIM provides backward compatibility with the cable modem termination system (CMTS) based on the following standards: DOCSIS 2.0 DOCSIS 1.1 DOCSIS 1.0 RELATED DOCUMENTATION...

  • Page 75: 1-Port G.shdsl 8-Wire Mini-Physical Interface Module

    ITU-T G.991.2 is the officially designated standard describing G.SHDSL. The G.SHDSL interface on the SRX Series Services Gateways supports SHDSL for data transfer between a single customer premises equipment (CPE) subscriber and a central office (CO).

  • Page 76: 1-Port G.shdsl 8-Wire Mini-Physical Interface Module Key Features

    RELATED DOCUMENTATION 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Supported Standards | 61 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Operating Modes | 239 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Key Features | 58 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Hardware Specifications | 59 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module LEDs | 60 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Key Features The 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module (Mini-PIM) provides the following key features:...

  • Page 77: 1-Port G.shdsl 8-Wire Mini-Physical Interface Module Hardware Specifications

    1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Overview | 57 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Supported Standards | 61 MTU Default and Maximum Values for Physical Interface Modules | 12 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Operating Modes | 239 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Hardware Specifications | 59 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module LEDs | 60 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Hardware...

  • Page 78: 1-Port G.shdsl 8-Wire Mini-Physical Interface Module Leds

    1-Port G.SHDSL 8-Wire Mini-Physical Interface Module LEDs | 60 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module LEDs The 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module (Mini-PIM) has the following LEDs to indicate the state of the Mini-PIM and its four ports (one LED for each port). Table 32 on page 60 describes the LED states.

  • Page 79: 1-Port G.shdsl 8-Wire Mini-Physical Interface Module Supported Standards

    1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Supported Standards The 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module (Mini-PIM) complies with the following standards: ITU-T G.991.2—Symmetric high-speed digital subscriber line (SHDSL) transceiver ITU-T G.994.1—Handshake procedures for digital subscriber line (DSL) transceivers (3 LC Comment) ITU-T G.997.1—Physical layer management for DSL transceivers RELATED DOCUMENTATION 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Overview | 57...

  • Page 80: 1-Port Serial Mini-Physical Interface Module

    CHAPTER 8 1-Port Serial Mini-Physical Interface Module IN THIS CHAPTER 1-Port Serial Mini-Physical Interface Module Overview | 62 1-Port Serial Mini-Physical Interface Module Key Features | 63 1-Port Serial Mini-Physical Interface Module Hardware Specifications | 63 1-Port Serial Mini-Physical Interface Module LEDs | 64 1-Port Serial Mini-Physical Interface Module Supported Standards | 65 1-Port Serial Mini-Physical Interface Module Overview Serial WAN links are bidirectional links and require very few control signals.

  • Page 81: 1-Port Serial Mini-Physical Interface Module Key Features

    1-Port Serial Mini-Physical Interface Module LEDs | 64 1-Port Serial Mini-Physical Interface Module Basic Configuration | 207 1-Port Serial Mini-Physical Interface Module Key Features The 1-Port Serial Mini-Physical Interface Module (Mini-PIM) provides the following key features: Autoselection of operational modes based on DTE or DCE cables Local and remote loopback diagnostics Configurable clock rate for the transmit (TX) clock and receive (RX) clock Complete configuration and management by using the CLI and the J-Web interface...

  • Page 82: 1-Port Serial Mini-Physical Interface Module Leds

    Table 33: 1-Port Serial Mini-PIM Physical Specifications (continued) Description Value Form factor Mini-PIM RELATED DOCUMENTATION 1-Port Serial Mini-Physical Interface Module Overview | 62 1-Port Serial Mini-Physical Interface Module Supported Standards | 65 1-Port Serial Mini-Physical Interface Module Key Features | 63 1-Port Serial Mini-Physical Interface Module LEDs | 64 1-Port Serial Mini-Physical Interface Module Basic Configuration | 207 1-Port Serial Mini-Physical Interface Module LEDs...

  • Page 83: 1-Port Serial Mini-Physical Interface Module Supported Standards

    1-Port Serial Mini-Physical Interface Module Supported Standards The 1-Port Serial Mini-Physical Interface Module (Mini-PIM) supports the following standards: TIA/EIA 530 V.35 X.21 RS-232 RS-449 RELATED DOCUMENTATION 1-Port Serial Mini-Physical Interface Module Overview | 62 1-Port Serial Mini-Physical Interface Module Hardware Specifications | 63 1-Port Serial Mini-Physical Interface Module Key Features | 63 1-Port Serial Mini-Physical Interface Module LEDs | 64 1-Port Serial Mini-Physical Interface Module Basic Configuration | 207...

  • Page 84: 1-Port T1/E1 Mini-Physical Interface Module

    CHAPTER 9 1-Port T1/E1 Mini-Physical Interface Module IN THIS CHAPTER 1-Port T1/E1 Mini-Physical Interface Module Overview | 66 1-Port T1/E1 Mini-Physical Interface Module Key Features | 67 1-Port T1/E1 Mini-Physical Interface Module Hardware Specifications | 67 1-Port T1/E1 Mini-Physical Interface Module LEDs | 68 1-Port T1/E1 Mini-Physical Interface Module Supported Standards | 69 1-Port T1/E1 Mini-Physical Interface Module Supported Loopback Diagnostics | 70 1-Port T1/E1 Mini-Physical Interface Module Overview...

  • Page 85: 1-Port T1/E1 Mini-Physical Interface Module Key Features

    1-Port T1/E1 Mini-Physical Interface Module Supported Loopback Diagnostics | 70 1-Port T1/E1 Mini-Physical Interface Module Basic Configuration | 209 1-Port T1/E1 Mini-Physical Interface Module Key Features The 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM) provides the following key features: Channel service unit/data service unit (CSU/DSU) to eliminate the need for a separate external device 56-Kbps and 64-Kbps operating modes Independent internal and external clocking option Alarm reporting with a 24-hour history maintained...

  • Page 86: 1-Port T1/E1 Mini-Physical Interface Module Leds

    Table 35: 1-Port T1/E1 Mini-PIM Physical Specifications Description Value Dimensions (H x W x L) 0.80 in. x 3.75 in. x 5.9 in. (2.0 cm x 9.5 cm x 14.5 cm ) Weight 2.88 oz (82 g) Connector type RJ-48 Form factor Mini-PIM Environmental operating temperature...

  • Page 87: 1-Port T1/E1 Mini-Physical Interface Module Supported Standards

    Table 36: 1-Port T1/E1 Mini-PIM LED States Color State Description ALARM Yellow Indicates that there is a local or remote alarm; device has detected a failure. Indicates that there are no alarms or failures. LOOPBACK Yellow Indicates that a loopback or line state is detected. Indicates that the loopback is not active.

  • Page 88: 1-Port T1/E1 Mini-Physical Interface Module Supported Loopback Diagnostics

    RELATED DOCUMENTATION 1-Port T1/E1 Mini-Physical Interface Module Overview | 66 1-Port T1/E1 Mini-Physical Interface Module Hardware Specifications | 67 1-Port T1/E1 Mini-Physical Interface Module Network Interface Specifications | 23 1-Port T1/E1 Mini-Physical Interface Module Key Features | 67 1-Port T1/E1 Mini-Physical Interface Module LEDs | 68 1-Port T1/E1 Mini-Physical Interface Module Supported Loopback Diagnostics | 70 1-Port T1/E1 Mini-Physical Interface Module Basic Configuration | 209 1-Port T1/E1 Mini-Physical Interface Module Supported Loopback...
  • Page 89 RELATED DOCUMENTATION 1-Port T1/E1 Mini-Physical Interface Module Overview | 66 1-Port T1/E1 Mini-Physical Interface Module Hardware Specifications | 67 1-Port T1/E1 Mini-Physical Interface Module Network Interface Specifications | 23 1-Port T1/E1 Mini-Physical Interface Module Supported Standards | 69 1-Port T1/E1 Mini-Physical Interface Module Key Features | 67 1-Port T1/E1 Mini-Physical Interface Module LEDs | 68 1-Port T1/E1 Mini-Physical Interface Module Basic Configuration | 209...

  • Page 90: 1-Port Vdsl2 (Annex A) Mini-Physical Interface Module

    Mini-PIM connects to one of the ports of the baseboard switch. The 1-Port VDSL2 (Annex A) Mini-PIM on the SRX Series Services Gateway provides ADSL backward compatibility. The 1-Port VDSL2 (Annex A) Mini-PIM is compatible with the ITU-T G.993.2 (VDSL2) standard.

  • Page 91: 1-Port Vdsl2 (Annex A) Mini-Physical Interface Module Key Features

    RELATED DOCUMENTATION 1-Port VDSL2 (Annex A) Mini-Physical Interface Module Key Features | 73 1-Port VDSL2 (Annex A) Mini-Physical Interface Module Supported Profiles | 75 1-Port VDSL2 (Annex A) Mini-Physical Interface Module LEDs | 74 1-Port VDSL2 (Annex A) Mini-Physical Interface Module Hardware Specifications | 74 1-Port VDSL2 (Annex A) Mini-Physical Interface Module Cable Specifications | 141 1-Port VDSL2 (Annex A) Mini-Physical Interface Module Basic Configuration | 211 1-Port VDSL2 (Annex A) Mini-Physical Interface Module Key Features...

  • Page 92: 1-Port Vdsl2 (Annex A) Mini-Physical Interface Module Hardware Specifications

    1-Port VDSL2 (Annex A) Mini-Physical Interface Module Hardware Specifications Table 37 on page 74 gives the hardware specifications of the 1-Port VDSL2 (Annex A) Mini-Physical Interface Module (Mini-PIM). Table 37: 1-Port VDSL2 (Annex A) Mini-PIM Hardware Specifications Description Value Dimensions (H x W x L) 3.75 in.

  • Page 93: 1-Port Vdsl2 (Annex A) Mini-Physical Interface Module Supported Profiles

    Table 38: 1-Port VDSL2 (Annex A) Mini-PIM LED States Color State Description SYNC Green Indicates that the VDSL interface is trained. Blinking Indicates training is in progress. TX/RX Green Blinking Indicates that traffic is passing through. Indicates that no traffic is passing through. RELATED DOCUMENTATION 1-Port VDSL2 (Annex A) Mini-Physical Interface Module Overview | 72 1-Port VDSL2 (Annex A) Mini-Physical Interface Module Key Features | 73...
  • Page 94 Table 39: Supported Profiles on the 1-Port VDSL2 Mini-PIM (continued) Profiles Data Rate Auto Auto mode (default) RELATED DOCUMENTATION 1-Port VDSL2 (Annex A) Mini-Physical Interface Module Overview | 72 1-Port VDSL2 (Annex A) Mini-Physical Interface Module Key Features | 73 1-Port VDSL2 (Annex A) Mini-Physical Interface Module LEDs | 74 1-Port VDSL2 (Annex A) Mini-Physical Interface Module Hardware Specifications | 74 1-Port VDSL2 (Annex A) Mini-Physical Interface Module Cable Specifications | 141...

  • Page 95: 1-Port Clear Channel Ds3/E3 Gpim

    CHAPTER 11 1-Port Clear Channel DS3/E3 GPIM IN THIS CHAPTER 1-Port Clear Channel DS3/E3 GPIM Overview | 77 1-Port Clear Channel DS3/E3 GPIM Components | 78 1-Port Clear Channel DS3/E3 GPIM Key Features | 79 1-Port Clear Channel DS3/E3 GPIM Hardware Specifications | 79 1-Port Clear Channel DS3/E3 GPIM LEDs | 80 1-Port Clear Channel DS3/E3 GPIM Supported Standards | 81 1-Port Clear Channel DS3/E3 GPIM Supported Loopback Diagnostics | 81...

  • Page 96: 1-Port Clear Channel Ds3/E3 Gpim Components

    Figure 16: 1-Port Clear Channel DS3/E3 GPIM Front Panel NOTE: Only the SRX650 Services Gateway supports hot-swappable functionality for GPIMs. The SRX550 Services Gateway does not support hot-swappable functionality for GPIMs. 1-Port Clear Channel DS3/E3 GPIM Components The 1-Port Clear Channel DS3/E3 GPIM contains the components listed in Table 40 on page Table 40: 1-Port Clear Channel DS3/E3 GPIM Components Component...

  • Page 97: 1-Port Clear Channel Ds3/E3 Gpim Key Features

    1-Port Clear Channel DS3/E3 GPIM Key Features The 1-Port Clear Channel DS3/E3 Gigabit-Backplane Physical Interface Module (GPIM) provides the following key features: Framed and unframed DS3/E3 modes Line encoding for DS3/E3 modes Support for Frame Relay, PPP, and HDLC serial encapsulation protocols External and internal clocking support Support for DS3/E3 network alarms Support for chassis clusters...

  • Page 98: 1-Port Clear Channel Ds3/E3 Gpim Leds

    Table 41: 1-Port Clear Channel DS3/E3 GPIM Hardware Specifications (continued) Description Value Storage temperature -40°F through 158°F (-40°C through 70°C) Relative humidity 5% to 90% noncondensing Altitude Up to 10,000 ft (3,000 m) 1-Port Clear Channel DS3/E3 GPIM LEDs The 1-Port Clear Channel DS3/E3 Gigabit-Backplane Physical Interface Module (GPIM) has the LEDs described in Table 42 on page Table 42: 1-Port Clear Channel DS3/E3 GPIM LED States...

  • Page 99: 1-Port Clear Channel Ds3/E3 Gpim Supported Standards

    Table 42: 1-Port Clear Channel DS3/E3 GPIM LED States (continued) Color State Description Amber Out-of-frame (OOF) RX multi-frame is not aligned. 1-Port Clear Channel DS3/E3 GPIM Supported Standards The 1-Port Clear Channel DS3/E3 Gigabit-Backplane Physical Interface Module (GPIM) supports the following standards: DS3 mode standards: ANSI TI.102, TI.107, T1.404...
  • Page 100 PRBS 2^20-1 (as specified in ITU-T 0.153) PRBS 2^23-1 (as specified in ITU-T 0.151) PRBS 2^9-1 PRBS 2^11-1 PRBS 2^29-1 PRBS 2^31-1 QRSS 2^20-1 (as specified in ITU-T 0.151) BERT results must be in the following form: Received bit count Received error count In conformance with ANSI T1.107-1995, the 1-Port Clear Channel DS3/E3 GPIM supports both generation and detection of FEAC codes, as well as line-loopback activate and deactivate control codes.

  • Page 101: 2-Port 10-Gigabit Ethernet Xpim

    CHAPTER 12 2-Port 10-Gigabit Ethernet XPIM IN THIS CHAPTER 2-Port 10-Gigabit Ethernet XPIM Overview | 83 2-Port 10-Gigabit Ethernet XPIM Components | 84 2-Port 10-Gigabit Ethernet XPIM Key Features | 87 2-Port 10 Gigabit Ethernet XPIM Hardware Specifications | 88 2-Port 10 Gigabit Ethernet XPIM LEDs | 90 2-Port 10-Gigabit Ethernet XPIM Overview The 2-Port 10-Gigabit Ethernet XPIM provides a connection to high-speed Ethernet networks through...

  • Page 102: 2-Port 10-Gigabit Ethernet Xpim Components

    2-Port 10-Gigabit Ethernet XPIM Components | 84 2-Port 10-Gigabit Ethernet XPIM Basic Configuration | 217 Installing a Gigabit-Backplane Physical Interface Module on the SRX Series Services Gateway | 253 2-Port 10-Gigabit Ethernet XPIM Components The 2-Port 10 Gigabit Ethernet XPIM contains the components listed in...
  • Page 103 Table 43: 2-Port 10 Gigabit Ethernet XPIM Components Component Location Description XPIM ONLINE/OFFLINE button Right side of the XPIM Use the XPIM ONLINE/OFFLINE button to gracefully shut down the Only the SRX650 Services Gateway XPIM. supports hot-swappable functionality for GPIMs. The SRX550 Services Gateway does not support hot-swappable functionality for GPIMs.
  • Page 104 CAUTION: If you face a problem running a Juniper Networks device that uses a third-party optic or cable, the Juniper Networks Technical Assistance Center (JTAC) can help you diagnose the source of the problem. Your JTAC engineer might recommend that you check the third-party optic or cable and potentially replace it with an equivalent Juniper Networks optic or cable that is qualified for the device.

  • Page 105: 2-Port 10-Gigabit Ethernet Xpim Key Features

    RELATED DOCUMENTATION 2-Port 10-Gigabit Ethernet XPIM Overview | 83 2-Port 10-Gigabit Ethernet XPIM Key Features | 87 2-Port 10 Gigabit Ethernet XPIM Hardware Specifications | 88 2-Port 10 Gigabit Ethernet XPIM LEDs | 90 2-Port 10-Gigabit Ethernet XPIM Basic Configuration | 217 2-Port 10-Gigabit Ethernet XPIM Key Features The 2-Port 10-Gigabit Ethernet XPIM supports the following key features: Contains a total of four ports:...

  • Page 106: 2-Port 10 Gigabit Ethernet Xpim Hardware Specifications

    User-configuration of fiber and copper ports: When the interface is configured as a copper port, typical Ethernet configuration such as autonegotiation is supported. Forced rate and link mode are allowed. Four forced and autonegotiation rates are provided: 10 G and 1 G. Autonegotiation is required to establish link when rates are 1 G and 10 G. Copper ports support autonegotiation;...
  • Page 107 Table 45: 2-Port 10 Gigabit Ethernet XPIM Hardware Specifications (continued) Description Value Weight 18.6 oz (.53 kg) Connector Types Contains a total of four ports: Two SFP+ fiber ports Two 10 G Base-T copper ports Port 0 is grouped as one copper port and one fiber port, and port 1 is grouped as one copper port and one fiber port.

  • Page 108: 2-Port 10 Gigabit Ethernet Xpim Leds

    2-Port 10-Gigabit Ethernet XPIM Components | 84 2-Port 10-Gigabit Ethernet XPIM Basic Configuration | 217 2-Port 10 Gigabit Ethernet XPIM LEDs The 2-Port 10 Gigabit Ethernet XPIM has the LEDs listed in Table 46 on page Table 46: 2-Port 10 Gigabit Ethernet XPIM LED States Color State Description...
  • Page 109 Figure 20 on page 91 shows the 2-Port 10 Gigabit Ethernet XPIM. Figure 20: 2-Port 10 Gigabit Ethernet XPIM RELATED DOCUMENTATION 2-Port 10-Gigabit Ethernet XPIM Overview | 83 2-Port 10-Gigabit Ethernet XPIM Key Features | 87 2-Port 10 Gigabit Ethernet XPIM Hardware Specifications | 88 2-Port 10-Gigabit Ethernet XPIM Components | 84 2-Port 10-Gigabit Ethernet XPIM Basic Configuration | 217...

  • Page 110: 8-Port Gigabit Ethernet Sfp Xpim

    CHAPTER 13 8-Port Gigabit Ethernet SFP XPIM IN THIS CHAPTER 8-Port Gigabit Ethernet SFP XPIM Overview | 92 8-Port Gigabit Ethernet SFP XPIM Components | 93 8-Port Gigabit Ethernet SFP XPIM Key Features | 94 8-Port Gigabit Ethernet SFP XPIM Hardware Specifications | 95 8-Port Gigabit Ethernet SFP XPIM LEDs | 96 8-Port Gigabit Ethernet SFP XPIM Supported Modules | 97 8-Port Gigabit Ethernet SFP XPIM Overview...

  • Page 111: 8-Port Gigabit Ethernet Sfp Xpim Components

    RELATED DOCUMENTATION 8-Port Gigabit Ethernet SFP XPIM Hardware Specifications | 95 8-Port Gigabit Ethernet SFP XPIM Network Interface Specifications | 26 8-Port Gigabit Ethernet SFP XPIM Supported Modules | 97 8-Port Gigabit Ethernet SFP XPIM Key Features | 94 8-Port Gigabit Ethernet SFP XPIM LEDs | 96 8-Port Gigabit Ethernet SFP XPIM Components | 93 8-Port Gigabit Ethernet SFP XPIM Basic Configuration | 221 8-Port Gigabit Ethernet SFP XPIM Components...

  • Page 112: 8-Port Gigabit Ethernet Sfp Xpim Key Features

    JTAG support for boundary scan test CAUTION: If you face a problem running a Juniper Networks device that uses a third-party optic or cable, the Juniper Networks Technical Assistance Center (JTAC) can help you diagnose the source of the problem. Your JTAC engineer might recommend that you check the third-party optic or cable and potentially replace it with an equivalent Juniper Networks optic or cable that is qualified for the device.

  • Page 113: 8-Port Gigabit Ethernet Sfp Xpim Hardware Specifications

    8-Port Gigabit Ethernet SFP XPIM Hardware Specifications Table 48 on page 95 gives the physical specifications of the 8-Port Gigabit Ethernet small form-factor pluggable XPIM (SFP XPIM). Table 48: 8-Port Gigabit Ethernet SFP XPIM Physical Specifications Description Value Dimensions (H x W x L) 0.78 in.

  • Page 114: 8-Port Gigabit Ethernet Sfp Xpim Leds

    8-Port Gigabit Ethernet SFP XPIM LEDs The 8-Port Gigabit Ethernet small form-factor pluggable XPIM (SFP XPIM) has two LEDs for each port — LINK and ACT.Each XPIM has a STATUS LED, which indicates the status of the XPIM.The LEDs are listed Table 49 on page 96 .

  • Page 115: 8-Port Gigabit Ethernet Sfp Xpim Supported Modules

    Table 50 on page 97 shows the SFP transceivers and cables supported on the 8-port Gigabit Ethernet SFP modules for XPIMs. Table 50: 8-Port Gigabit Ethernet SFP XPIM Supported Modules Juniper Product Number Connector Type (SFP Transceiver) Cable SRX-SFP-FE-FX 100BASE-FX...
  • Page 116 RX1310nm) CAUTION: If you face a problem running a Juniper Networks device that uses a third-party optic or cable, the Juniper Networks Technical Assistance Center (JTAC) can help you diagnose the source of the problem. Your JTAC engineer might recommend that you check the third-party optic or cable and potentially replace it with an equivalent Juniper Networks optic or cable that is qualified for the device.

  • Page 117: 8-Port Serial Gpim

    CHAPTER 14 8-Port Serial GPIM IN THIS CHAPTER 8-Port Serial GPIM Overview | 99 8-Port Serial GPIM Components | 100 8-Port Serial GPIM Key Features | 101 8-Port Serial GPIM Hardware Specifications | 102 8-Port Serial GPIM LEDs | 103 8-Port Serial GPIM Overview The 8-Port Serial Gigabit-Backplane Physical Interface Module (GPIM) is a hot-swappable network interface card (NIC) that installs in the front slots of the SRX650 and SRX550 Services Gateways to provide physical...

  • Page 118: 8-Port Serial Gpim Components

    RELATED DOCUMENTATION 8-Port Serial GPIM Hardware Specifications | 102 8-Port Serial GPIM Components | 100 8-Port Serial GPIM Key Features | 101 8-Port Serial GPIM LEDs | 103 8-Port Serial GPIM Interface Cables | 157 8-Port Serial GPIM Interface Specifications | 27 8-Port Serial GPIM Basic Configuration | 225 8-Port Serial GPIM Components Table 51 on page 100...

  • Page 119: 8-Port Serial Gpim Key Features

    RELATED DOCUMENTATION 8-Port Serial GPIM Overview | 99 8-Port Serial GPIM Hardware Specifications | 102 8-Port Serial GPIM Key Features | 101 8-Port Serial GPIM LEDs | 103 8-Port Serial GPIM Interface Cables | 157 8-Port Serial GPIM Interface Specifications | 27 8-Port Serial GPIM Basic Configuration | 225 8-Port Serial GPIM Key Features The 8-Port Serial Gigabit-Backplane Physical Interface Module (GPIM) provides the following key features:...

  • Page 120: 8-Port Serial Gpim Hardware Specifications

    8-Port Serial GPIM Hardware Specifications | 102 8-Port Serial GPIM Components | 100 8-Port Serial GPIM LEDs | 103 8-Port Serial GPIM Interface Cables | 157 8-Port Serial GPIM Interface Specifications | 27 8-Port Serial GPIM Basic Configuration | 225 8-Port Serial GPIM Hardware Specifications Table 52 on page 102 lists the hardware specifications of the 8-Port Serial Gigabit-Backplane Physical...

  • Page 121: 8-Port Serial Gpim Leds

    8-Port Serial GPIM Components | 100 8-Port Serial GPIM Key Features | 101 8-Port Serial GPIM LEDs | 103 8-Port Serial GPIM Interface Cables | 157 8-Port Serial GPIM Interface Specifications | 27 8-Port Serial GPIM Basic Configuration | 225 8-Port Serial GPIM LEDs Table 53 on page 103 lists the LEDs of the 8-Port Serial Gigabit-Backplane Physical Interface Module (GPIM).

  • Page 122: 16-Port Gigabit Ethernet Xpim

    For more information about PoE, see “Power over Ethernet Support on SRX Series Services Gateway Interfaces” on page The 16-Port Gigabit Ethernet XPIM must be installed in one of the following 20-Gigabit slots on the services gateway: SRX550—Slot 3 or 6...

  • Page 123: 16-Port Gigabit Ethernet Xpim Components

    The earliest supported release on the 16-Port Gigabit Ethernet XPIM is Junos OS Release 9.5. Figure 23: 16-Port Gigabit Ethernet XPIM Figure 24: 16-Port Gigabit Ethernet with PoE XPIM RELATED DOCUMENTATION 16-Port Gigabit Ethernet XPIM Key Features | 107 16-Port Gigabit Ethernet XPIM Hardware Specifications | 107 16-Port Gigabit Ethernet XPIM LEDs | 108 16-Port Gigabit Ethernet XPIM Components | 105 16-Port Gigabit Ethernet XPIM Basic Configuration | 229...
  • Page 124 16-Port Gigabit Ethernet XPIM Key Features | 107 16-Port Gigabit Ethernet XPIM Hardware Specifications | 107 16-Port Gigabit Ethernet XPIM LEDs | 108 16-Port Gigabit Ethernet XPIM Basic Configuration | 229 Power over Ethernet Support on SRX Series Services Gateway Interfaces | 15...

  • Page 125: 16-Port Gigabit Ethernet Xpim Key Features

    16-Port Gigabit Ethernet XPIM Key Features The 16-Port Gigabit Ethernet XPIM has the following key features: 16 triple-speed (10/100/1000 Mbps) Ethernet ports, double-high card PoE support for all ports PCI-Express interface for control and management I2C interface for module monitor and identification Maximum module power of 40.0 W without PoE JTAG support for boundary scan test RELATED DOCUMENTATION...

  • Page 126: 16-Port Gigabit Ethernet Xpim Leds

    Table 55: 16-Port Gigabit Ethernet XPIM Hardware Specifications (continued) Description Value Storage temperature -40°F through 158°F (-40°C through 70°C) Relative humidity 5% to 90% noncondensing RELATED DOCUMENTATION 16-Port Gigabit Ethernet XPIM Overview | 104 16-Port Gigabit Ethernet XPIM Key Features | 107 16-Port Gigabit Ethernet XPIM LEDs | 108 16-Port Gigabit Ethernet XPIM Components | 105 16-Port Gigabit Ethernet XPIM Basic Configuration | 229...
  • Page 127 Table 56: 16-Port Gigabit Ethernet XPIM LED States (continued) Color State Description Not used on the non-PoE XPIM. NOTE: This LED is not applicable on the non-PoE 16-Port Gigabit Ethernet XPIM. See Figure 25 on page 109. Green Port is PoE enabled and online. NOTE: Applicable on the Port is offline.
  • Page 128 16-Port Gigabit Ethernet XPIM Components | 105 16-Port Gigabit Ethernet XPIM Basic Configuration | 229 Power over Ethernet Support on SRX Series Services Gateway Interfaces | 15...

  • Page 129: 24-Port Gigabit Ethernet Xpim

    For more information about PoE, see “Power over Ethernet Support on SRX Series Services Gateway Interfaces” on page The 24-Port XPIM must be installed in specific GPIM slot groupings as shown in Table 57 on page 111.

  • Page 130: 24-Port Gigabit Ethernet Xpim Components

    24-Port Gigabit Ethernet XPIM LEDs | 117 24-Port Gigabit Ethernet XPIM Components | 112 24-Port Gigabit Ethernet XPIM Basic Configuration | 229 Installing a Double-High, Double-Wide Gigabit-Backplane Physical Interface Module on the SRX Series Services Gateway | 256 24-Port Gigabit Ethernet XPIM Components...
  • Page 131 Table 58: 24-Port Gigabit Ethernet XPIM Components Component Location Description XPIM ONLINE/OFFLINE button Right side of the XPIM Use the XPIM ONLINE/OFFLINE button to gracefully shut down the Only the SRX650 Services Gateway XPIM. supports hot-swappable functionality for GPIMs. The SRX550 Services Gateway does not support hot-swappable functionality for GPIMs.
  • Page 132 SFP transceivers. CAUTION: If you face a problem running a Juniper Networks device that uses a third-party optic or cable, the Juniper Networks Technical Assistance Center (JTAC) can help you diagnose the source of the problem. Your JTAC engineer might recommend that you check the third-party optic or cable and potentially replace it with an equivalent Juniper Networks optic or cable that is qualified for the device.

  • Page 133: 24-Port Gigabit Ethernet Xpim Key Features

    24-Port Gigabit Ethernet XPIM LEDs | 117 24-Port Gigabit Ethernet XPIM Basic Configuration | 229 Power over Ethernet Support on SRX Series Services Gateway Interfaces | 15 24-Port Gigabit Ethernet XPIM Key Features The 24-Port Gigabit Ethernet XPIM has the following key features:...

  • Page 134: 24-Port Gigabit Ethernet Xpim Hardware Specifications

    Ports 20 to 23 are shared so you can use either the RJ-45 copper ports 20–23 with 10/100/1000 Mbps, or the SFP connector ports 20–23 for 1 Gigabit connectivity. Supported SFPs Juniper Internal SFPs: LX (1 GB) SX (1 GB) FX (100 Mbps) TX (1 GB)

  • Page 135: 24-Port Gigabit Ethernet Xpim Leds

    RELATED DOCUMENTATION 24-Port Gigabit Ethernet XPIM Overview | 111 24-Port Gigabit Ethernet XPIM Key Features | 115 24-Port Gigabit Ethernet XPIM LEDs | 117 24-Port Gigabit Ethernet XPIM Components | 112 24-Port Gigabit Ethernet XPIM Basic Configuration | 229 24-Port Gigabit Ethernet XPIM LEDs The 24-Port Gigabit Ethernet XPIM has the LEDs listed in Table 61 on page 117.
  • Page 136 24-Port Gigabit Ethernet XPIM Key Features | 115 24-Port Gigabit Ethernet XPIM Hardware Specifications | 116 24-Port Gigabit Ethernet XPIM Components | 112 24-Port Gigabit Ethernet XPIM Basic Configuration | 229 Power over Ethernet Support on SRX Series Services Gateway Interfaces | 15...

  • Page 137: Dual Ct1/E1 Gpim

    CHAPTER 17 Dual CT1/E1 GPIM IN THIS CHAPTER Dual CT1/E1 GPIM Overview | 119 Dual CT1/E1 GPIM Components | 120 Dual CT1/E1 GPIM Key Features | 121 Dual CT1/E1 GPIM Hardware Specifications | 121 Dual CT1/E1 GPIM LEDs | 122 Dual CT1/E1 GPIM Overview A Gigabit-Backplane Physical Interface Module (GPIM) is a network interface card (NIC) that installs in the front slots of the SRX550 or SRX650 Services Gateway to provide physical connections to a LAN or a...

  • Page 138: Dual Ct1/E1 Gpim Components

    Figure 31: Dual CT1/E1 GPIM Dual CT1/E1 GPIM Components The Dual CT1/E1 Gigabit-Backplane Physical Interface Module (GPIM) contains the components listed in Table 62 on page 120. Table 62: Dual CT1/E1 GPIM Components Component Location Description GPIM ONLINE/OFFLINE Right side of the GPIM Use the GPIM ONLINE/OFFLINE button to gracefully button shut down the GPIM.

  • Page 139: Dual Ct1/E1 Gpim Key Features

    Dual CT1/E1 GPIM Key Features The Dual CT1/E1 Gigabit-Backplane Physical Interface Module (GPIM) provides the following common key features for both T1 and E1 modes: Channel service unit/data service unit (CSU/DSU) to eliminate the need for a separate external device 56-Kbps and 64-Kbps operating modes Independent internal and external clocking option Alarm reporting with a 24-hour history maintained...

  • Page 140: Dual Ct1/E1 Gpim Leds

    Dual CT1/E1 GPIM LEDs The Dual CT1/E1 Gigabit-Backplane Physical Interface Module (GPIM) has the LED listed in Table 64 on page 122. Table 64: Dual CT1/E1 GPIM LED States Color State Description STATUS Green GPIM is online and functioning normally. Amber GPIM is starting up, running diagnostics, or shutting down.

  • Page 141: Quad Ct1/E1 Gpim

    CHAPTER 18 Quad CT1/E1 GPIM IN THIS CHAPTER Quad CT1/E1 GPIM Overview | 123 Quad CT1/E1 GPIM Components | 124 Quad CT1/E1 GPIM Key Features | 125 Quad CT1/E1 GPIM Hardware Specifications | 125 Quad CT1/E1 GPIM LEDs | 126 Quad CT1/E1 GPIM Overview A Gigabit-Backplane Physical Interface Module (GPIM) is a network interface card (NIC) that installs in the front slots of the SRX550 or SRX650 Services Gateway to provide physical connections to a LAN or a...

  • Page 142: Quad Ct1/E1 Gpim Components

    Figure 32: Quad CT1/E1 GPIM Quad CT1/E1 GPIM Components The Quad CT1/E1 Gigabit-Backplane Physical Interface Module (GPIM) contains the components listed Table 65 on page 124. Table 65: Quad CT1/E1 GPIM Components Component Location Description GPIM ONLINE/OFFLINE Right side of the GPIM Use the GPIM ONLINE/OFFLINE button to gracefully button shut down the GPIM.

  • Page 143: Quad Ct1/E1 Gpim Key Features

    Quad CT1/E1 GPIM Key Features The Quad CT1/E1 Gigabit-Backplane Physical Interface Module (GPIM) provides the following common key features for both T1 and E1 modes: Channel service unit/data service unit (CSU/DSU) to eliminate the need for a separate external device 56-Kbps and 64-Kbps operating modes Independent internal and external clocking option Alarm reporting with a 24-hour history maintained...

  • Page 144: Quad Ct1/E1 Gpim Leds

    Quad CT1/E1 GPIM LEDs The Quad CT1/E1 Gigabit-Backplane Physical Interface Module (GPIM) has the LED listed in Table 67 on page 126. Table 67: Quad CT1/E1 GPIM LED States Color State Description STATUS Green GPIM is online and functioning normally. Amber GPIM is starting up, running diagnostics, or shutting down.

  • Page 145: Cable Specifications And Pinouts

    PART Cable Specifications and Pinouts T1/E1 Mini-Physical Interface Module | 128 ADSL2 + Mini-Physical Interface Module | 134 G.SHDSL Mini-Physical Interface Module Cable Specifications | 135 VDSL2 Mini-Physical Interface Module Cable Specifications | 141 Serial Mini-Physical Interface Module Cable Specifications | 143 Serial Gigabit-Backplane Physical Interface Module Cable Specifications | 157...

  • Page 146: T1/E1 Mini-Physical Interface Module

    CHAPTER 19 T1/E1 Mini-Physical Interface Module IN THIS CHAPTER RJ-48 Connector to RJ-48 Connector (Straight) Pinouts for the 1-Port T1/E1 Mini-Physical Interface Module | 128 RJ-48 Connector to RJ-48 Connector (Crossover) Pinouts for the 1-Port T1/E1 Mini-Physical Interface Module | 129 RJ-48 Connector to DB-15 Connector (Straight) Pinouts for the 1-Port T1/E1 Mini-Physical Interface Module | 130 RJ-48 Connector to DB-15 Connector (Crossover) Pinouts for the 1-Port T1/E1 Mini-Physical Interface...

  • Page 147: Connector To Rj-48 Connector (Crossover) Pinouts For The 1-Port T1/E1 Mini-Physical Interface Module

    Table 68: RJ-48 Connector to RJ-48 Connector (Straight) Pinouts (continued) RJ-48 Pin (on 1-Port T1/E1 RJ-48 Pin (Data Numbering Mini-PIM) Form) Signal TX, Tip, + Shield/Return/Ground Shield/Return/Ground No connect No connect No connect No connect RELATED DOCUMENTATION RJ-48 Connector to RJ-48 Connector (Crossover) Pinouts for the 1-Port T1/E1 Mini-Physical Interface Module | 129 RJ-48 Connector to DB-15 Connector (Straight) Pinouts for the 1-Port T1/E1 Mini-Physical Interface Module | 130...

  • Page 148: Connector To Db-15 Connector (Straight) Pinouts For The 1-Port T1/E1 Mini-Physical Interface Module

    Table 69: RJ-48 Connector to RJ-48 Connector (Crossover) Pinouts (continued) RJ-48 Pin (on T1/E1 RJ-48 Pin (Data Numbering Mini-PIM) Form) Signal TX/Ring/– <––>RX/Ring/– TX/Tip/+ <––>RX/Tip/+ Shield/Return/Ground Shield/Return/Ground No connect No connect No connect No connect RELATED DOCUMENTATION RJ-48 Connector to RJ-48 Connector (Straight) Pinouts for the 1-Port T1/E1 Mini-Physical Interface Module | 128 RJ-48 Connector to DB-15 Connector (Straight) Pinouts for the 1-Port T1/E1 Mini-Physical Interface Module | 130...
  • Page 149 Table 70: RJ-48 Connector to DB-15 Connector (Straight) Pinouts (continued) DB-15 Pin (Data Numbering RJ-48 Pin (on T1/E1 Mini-PIM) Form) Signal TX/Ring/– <––>TX/Ring/– TX/Tip/+ <––>TX/Tip/+ Shield/Return/Ground Shield/Return/Ground No connect No connect No connect No connect No connect No connect No connect No connect No connect No connect...

  • Page 150: Connector To Db-15 Connector (Crossover) Pinouts For The 1-Port T1/E1 Mini-Physical Interface Module

    RJ-48 Connector to DB-15 Connector (Crossover) Pinouts for the 1-Port T1/E1 Mini-Physical Interface Module Table 71 on page 132 gives RJ-48 connector to DB-15 connector (crossover) pinouts. Table 71: RJ-48 Connector to DB-15 Connector (Crossover) Pinouts RJ-48 Pin (on T1/E1 DB-15 Pin (Data Numbering Mini-PIM) Form)
  • Page 151 RJ-48 Connector to RJ-48 Connector (Straight) Pinouts for the 1-Port T1/E1 Mini-Physical Interface Module | 128 RJ-48 Connector to RJ-48 Connector (Crossover) Pinouts for the 1-Port T1/E1 Mini-Physical Interface Module | 129 RJ-48 Connector to DB-15 Connector (Straight) Pinouts for the 1-Port T1/E1 Mini-Physical Interface Module | 130 1-Port T1/E1 Mini-Physical Interface Module Overview | 66...

  • Page 152: Adsl2 + Mini-Physical Interface Module

    CHAPTER 20 ADSL2 + Mini-Physical Interface Module IN THIS CHAPTER RJ-11 Connector Pinouts for the 1-Port ADSL2+ Mini-Physical Interface Module | 134 RJ-11 Connector Pinouts for the 1-Port ADSL2+ Mini-Physical Interface Module The 1-Port ADSL2+ Mini-Physical Interface Module (Mini-PIM) uses an RJ-11 cable, which is not supplied with the Mini-PIM.

  • Page 153: G.shdsl Mini-Physical Interface Module Cable Specifications

    The 1-Port G.SHDSL Mini-Physical Interface Module (Mini-PIM) requires different combination of RJ-45 cables depending upon the connection available on the patch panel. Table 73 on page 135 lists the cables that you can order from Juniper Networks to connect the G.SHDSL Mini-PIM. Table 73: 1-Port G.SHDSL Mini-PIM Cable Part Numbers...
  • Page 154 Figure 33: 1-Port G.SHDSL Mini-PIM Operating in 4 X 2-Wire Mode Figure 34 on page 136 shows the topology for 1-Port G.SHDSL Mini-PIM operating in 2 X 4-wire mode. Figure 34: G.SHDSL Mini-PIM Operating in 2 X 4-Wire Mode Figure 35 on page 136 shows the topology for 1-Port G.SHDSL Mini-PIM operating in 1 X 8-wire mode.
  • Page 155 Table 74 on page 137 shows the pin assignments of the RJ-45 cable (RJ-45 to 4 X RJ-11). Table 74: RJ-45 Cable (RJ-45 to Four RJ-11 Connectors) Pinout Details RJ-45 Pin Number Connections RJ-11 Pin Number Connections Plug Number Tip 1 Tip 1 of 1st port Ring 1 Ring 1 of 2nd port...
  • Page 156 Figure 36: RJ-45 Cable Design (RJ–45 to Four RJ-11 Connectors) RJ-45 Cable (RJ-45 to Two RJ-11 Connectors) Pin Assignment Table 75 on page 138 shows the pin assignments of the RJ-45 cable that connects to two RJ-11 connectors. Table 75: RJ-45 Cable (RJ-45 to Two RJ-11 Connectors) Pinout Details Signal Signal RJ-45 Pin Number...
  • Page 157 Figure 37 on page 139 shows the RJ-45 cable design that connects two RJ-11 cable connections. Figure 37: RJ-45 Cable Design (RJ–45 to Two RJ-11 Connectors) Standard RJ-45 Cable Pin Assignment Table 76 on page 139 shows the pin assignments of the standard RJ-45 cable. Table 76: Standard RJ-45 Cable Pinout Details RJ-45 Pin Number Connections...
  • Page 158 RELATED DOCUMENTATION 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Overview | 57 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Supported Standards | 61 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Operating Modes | 239 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Key Features | 58 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Hardware Specifications | 59 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module LEDs | 60...

  • Page 159: Vdsl2 Mini-Physical Interface Module Cable Specifications

    CHAPTER 22 VDSL2 Mini-Physical Interface Module Cable Specifications IN THIS CHAPTER 1-Port VDSL2 (Annex A) Mini-Physical Interface Module Cable Specifications | 141 1-Port VDSL2 (Annex A) Mini-Physical Interface Module Cable Specifications The 1-Port VDSL2 (Annex A) Mini-Physical Interface Module (Mini-PIM) requires a standard RJ-11 cable. Figure 38 on page 141 shows the RJ-11 cable design.
  • Page 160 Table 77: RJ-11 Cable Pinout Details for 1-Port VDSL2 (Annex A) Mini-PIM Signal Ground RX (data input) Tx (data output) Vcc (power) RELATED DOCUMENTATION 1-Port VDSL2 (Annex A) Mini-Physical Interface Module Overview | 72 1-Port VDSL2 (Annex A) Mini-Physical Interface Module Key Features | 73 1-Port VDSL2 (Annex A) Mini-Physical Interface Module Supported Profiles | 75 1-Port VDSL2 (Annex A) Mini-Physical Interface Module LEDs | 74 1-Port VDSL2 (Annex A) Mini-Physical Interface Module Hardware Specifications | 74...

  • Page 161: Serial Mini-Physical Interface Module Cable Specifications

    1-Port Serial Mini-Physical Interface Module Interface Cables Table 78 on page 143 lists the cables that you can order from Juniper Networks to connect to a port on the synchronous 1-Port Serial Mini-Physical Interface Module (Mini-PIM). The device to which you are connecting and the serial interface types determine which type of cable you need.

  • Page 162: Eia-530A Dce Cable Pinouts For The 1-Port Serial Mini-Physical Interface Module

    Table 78: Juniper Networks Serial Cables (continued) Product Number Interface Type Length Connector Type JX-CBL-RS232-DTE RS232 cable (DTE) 3.04 m (10 ft) Plug JX-CBL-RS449-DCE RS449 cable (DCE) 3.04 m (10 ft) Socket JX-CBL-RS449-DTE RS449 cable (DTE) 3.04 m (10 ft)

  • Page 163: Eia-530A Dte Cable Pinouts For The 1-Port Serial Mini-Physical Interface Module

    Table 79: EIA-530A DCE Cable Pinouts for the 1-Port Serial Mini-PIM (continued) LFH-60 Pin DB-25 Pin LFH-60 Pairing Description Receive Clock (B) Received Line Signal Detector (B) Terminal Timing (B) Transmit Clock (B) Clear to Send (B) Transmit Data (B) Transmit Clock (A) Receive Data (B) Receive Clock (A)
  • Page 164 Table 80: EIA-530A DTE Cable Pinouts for the 1-Port Serial Mini-PIM LFH-60 Pin DB-25 Pin LFH-60 Pairing Description Shield Ground Transmit Data (A) Receive Data (A) Request to Send (A) Clear to Send (A) Data Set Ready (A) Signal Ground Received Line Signal Detector (A) Receive Clock (B) Received Line Signal Detector (B)

  • Page 165: Dce Cable Pinouts For The 1-Port Serial Mini-Physical Interface Module

    Table 80: EIA-530A DTE Cable Pinouts for the 1-Port Serial Mini-PIM (continued) LFH-60 Pin DB-25 Pin LFH-60 Pairing Description Terminal Timing (A) 26 to 25 30 to 29 18 to 17 RS-232 DCE Cable Pinouts for the 1-Port Serial Mini-Physical Interface Module Table 81 on page 147 gives the RS-232 DCE cable pinouts.

  • Page 166: Dte Cable Pinouts For The 1-Port Serial Mini-Physical Interface Module

    Table 81: RS-232 DCE Cable Pinouts for the 1-Port Serial Mini-PIM (continued) LFH-60 Pin DB-25 Pin LFH-60 Pairing Description Data Terminal Ready Terminal Clock 22 to 21 RS-232 DTE Cable Pinouts for the 1-Port Serial Mini-Physical Interface Module Table 82 on page 148 gives the RS-232 DTE cable pinouts.

  • Page 167: Rs-422/449 (Eia-449) Dce Cable Pinouts For The 1-Port Serial Mini-Physical Interface Module

    Table 82: RS-232 DTE Cable Pinouts for the 1-Port Serial Mini-PIM (continued) LFH-60 LFH-60 Pin DB-25 Pin Pairing Description Data Terminal Ready Terminal Clock 22 to 21 18 to 17 RS-422/449 (EIA-449) DCE Cable Pinouts for the 1-Port Serial Mini-Physical Interface Module Table 83 on page 149 gives the RS-422/449 DCE cable pinouts.

  • Page 168: Rs-422/449 (Eia-449) Dte Cable Pinouts For The 1-Port Serial Mini-Physical Interface Module

    Table 83: RS-422/449 DCE Cable Pinouts for the 1-Port Serial Mini-PIM (continued) DC-37 (DB-37) LFH-60 Pin LFH-60 Pairing Description Receive Ready (A) Terminal Timing (A) Signal Ground Receive Common Send Data (B) Send Timing (B) Receive Data (B) Request to Send (B) Receive Timing (B) Clear to Send (B) Data Mode (B)
  • Page 169 Table 84: RS-422/449 DTE Cable Pinouts for the 1-Port Serial Mini-PIM DC-37 (DB-37) LFH-60 Pin LFH-60 Pairing Description Shield Ground Send Data (A) Send Timing (A) Receive Data (A) Request to Send (A) Receive Timing (A) Clear to Send (A) Local Loopback Data Mode (A) Terminal Ready (A)

  • Page 170: V.35 Dce Cable Pinouts For The 1-Port Serial Mini-Physical Interface Module

    Table 84: RS-422/449 DTE Cable Pinouts for the 1-Port Serial Mini-PIM (continued) DC-37 (DB-37) LFH-60 Pin LFH-60 Pairing Description Data Mode (B) Terminal Ready (B) Receiver Ready (B) Terminal Timing (B) Send Common 26 to 25 18 to 17 V.35 DCE Cable Pinouts for the 1-Port Serial Mini-Physical Interface Module Table 85 on page 152 gives the V.35 DCE cable pinouts.

  • Page 171: V.35 Dte Cable Pinouts For The 1-Port Serial Mini-Physical Interface Module

    Table 85: V.35 DCE Cable Pinouts for the 1-Port Serial Mini-PIM (continued) LFH-60 Pin M/34 Pin LFH-60 Pairing Description Transmit Data (A) Receive Data (A) Transmit Data (B) Receive Data (B) Terminal Timing (A) Receive Timing (A) Terminal Timing (B) Receive Timing (B) Transmit Timing (A) Transmit Timing (B)
  • Page 172 Table 86: V.35 DTE Cable Pinouts for the 1-Port Serial Mini-PIM (continued) LFH-60 Pin M/34 Pin LFH-60 Pairing Description Clear to Send Data Set Ready Received Line Signal Detector Data Terminal Ready Test Mode Transmit Data (A) Receive Data (A) Transmit Data (B) Receive Data (B) Terminal Timing (A)

  • Page 173: X.21 Dce Cable Pinouts For The 1-Port Serial Mini-Physical Interface Module

    X.21 DCE Cable Pinouts for the 1-Port Serial Mini-Physical Interface Module Table 87 on page 155 gives the X.21 DCE cable pinouts. Table 87: X.21 DCE Cable Pinouts for the 1-Port Serial Mini-PIM LFH-60 Pin DB-15 Pin LFH-60 Pairing Description Shield Ground Transmit Data (A) Control (A)
  • Page 174 Table 88: X.21 DTE Cable Pinouts for the 1-Port Serial Mini-PIM LFH-60 Pin DB-15 Pin LFH-60 Pairing Description Shield Ground Transmit Data (A) Control (A) Receive (A) Indicate (A) Signal Element Timing (A) Signal Ground Transmit Data (B) Control (B) Receive (B) Indicate (B) Signal Element Timing (B)

  • Page 175: Serial Gigabit-Backplane Physical Interface Module Cable Specifications

    8-Port Serial GPIMs. You can order the cables from Juniper Networks to connect to a port on the synchronous 8-Port Serial GPIM. The device to which you are connecting and the serial interface types determine which type of cable you need.
  • Page 176 Table 89: Juniper Networks Supported Cables Product Number Interface Type Letter Connector Type SRX-CBL-RS232-DTE-2 RS-232 cable (DTE) Plug SRX-CBL-RS232-DCE-2 RS-232 cable (DCE) Socket SRX-CBL-V35-DTE-2 V.35 cable (DTE) Plug SRX-CBL-V35-DCE-2 V.35 cable (DCE) Socket SRX-CBL-EIA449-DTE-2 EIA-449 cable (DTE) Plug SRX-CBL-EIA449-DCE-2 EIA-449 cable (DCE)

  • Page 177: Dce Cable Pinouts For 8-Port Serial Gigabit-Backplane Physical Interface Module

    RELATED DOCUMENTATION 8-Port Serial GPIM Overview | 99 8-Port Serial GPIM Hardware Specifications | 102 8-Port Serial GPIM Components | 100 8-Port Serial GPIM Key Features | 101 8-Port Serial GPIM LEDs | 103 8-Port Serial GPIM Interface Specifications | 27 8-Port Serial GPIM Basic Configuration | 225 EIA-449 DCE Cable Pinouts for 8-Port Serial Gigabit-Backplane Physical Interface Module...
  • Page 178 Table 90: EIA-449 DCE Cable Pinouts for the 8-Port Serial GPIM (continued) Output VHDCI-68 DB-37 (1) (O) and DB-37 (2) Pin Input (I) Pair Pairing Description Pair 7 Terminal Ready Pair 8 Data Mode (A) Pair 9 Receive Ready Pair 10 Receive Timing Shield Ground Shield Ground...
  • Page 179 Table 90: EIA-449 DCE Cable Pinouts for the 8-Port Serial GPIM (continued) Output VHDCI-68 DB-37 (1) (O) and DB-37 (2) Pin Input (I) Pair Pairing Description Pair 10 Receive Timing Shield Ground T11 to T15 Protocol Identifier_1 Shield Ground Pair 1 Receive Data (A) Pair 2 Send Timing (A)
  • Page 180 Table 90: EIA-449 DCE Cable Pinouts for the 8-Port Serial GPIM (continued) Output VHDCI-68 DB-37 (1) (O) and DB-37 (2) Pin Input (I) Pair Pairing Description Shield Ground Pair 1 Receive Data (B) Pair 2 Send Timing (B) Pair 3 Send Data (B) Pair 4 Clear to Send (B)

  • Page 181: Dte Cable Pinouts For 8-Port Serial Gigabit-Backplane Physical Interface Module

    EIA-530 DTE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module | 170 EIA-530 DCE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module | 167 EIA-530A DTE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module | 177 EIA-530A DCE Cable Pinouts for 8-Port Serial Gigabit-Backplane Physical Interface Module | 174 RS-232 DTE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module | 182 RS-232 DCE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module | 180...
  • Page 182 Table 91: EIA-449 DTE Cable Pinouts for the 8-Port Serial GPIM (continued) Output VHDCI-68 DB-37 (1) (O) and DB-37 (2) Pin Input (I) Pair Pairing Description Pair 7 Data Mode (A) Pair 8 Terminal Ready (A) Pair 9 Receive Ready (A) Pair 10 Terminal Timing (A) Shield Ground...
  • Page 183 Table 91: EIA-449 DTE Cable Pinouts for the 8-Port Serial GPIM (continued) Output VHDCI-68 DB-37 (1) (O) and DB-37 (2) Pin Input (I) Pair Pairing Description Shield Ground Pair 1 Send Data (A) Pair 2 Send Timing (A) Pair 3 Receive Data (A) Pair 4 Request to Send (A)
  • Page 184 Table 91: EIA-449 DTE Cable Pinouts for the 8-Port Serial GPIM (continued) Output VHDCI-68 DB-37 (1) (O) and DB-37 (2) Pin Input (I) Pair Pairing Description Pair 6 Clear to Send (B) Pair 7 Data Mode (B) Pair 8 Terminal Ready (B) Pair 9 Receiver Ready (B) Pair 10...

  • Page 185: Dce Cable Pinouts For The 8-Port Serial Gigabit-Backplane Physical Interface Module

    EIA-530 DCE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module Table 92 on page 167 gives the EIA-530 DCE cable pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Modules. Table 92: EIA-530 DCE Cable Pinouts for the 8-Port Serial GPIM VHDCI-68 DB-25 (1) DB-25 (2) Pin...
  • Page 186 Table 92: EIA-530 DCE Cable Pinouts for the 8-Port Serial GPIM (continued) VHDCI-68 DB-25 (1) DB-25 (2) Pin Pair Pairing Description Pair 9 Send Timing (A) Pair 2 Send Data (B) Pair 7 Terminal Timing Local Loopback Pair 3 Clear to Send (B) Pair 10 Data Mode (A) Pair 10...
  • Page 187 Table 92: EIA-530 DCE Cable Pinouts for the 8-Port Serial GPIM (continued) VHDCI-68 DB-25 (1) DB-25 (2) Pin Pair Pairing Description Pair 6 Receive Ready (A) Pair 7 Terminal Timing Pair 6 Receiver Ready (B) Pair 8 Receive Timing (B) Pair 9 Send Timing (B) Pair 4...

  • Page 188: Dte Cable Pinouts For The 8-Port Serial Gigabit-Backplane Physical Interface Module

    RELATED DOCUMENTATION EIA-449 DTE Cable Pinouts for 8-Port Serial Gigabit-Backplane Physical Interface Module | 163 EIA-449 DCE Cable Pinouts for 8-Port Serial Gigabit-Backplane Physical Interface Module | 159 EIA-530 DTE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module | 170 EIA-530A DTE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module | 177 EIA-530A DCE Cable Pinouts for 8-Port Serial Gigabit-Backplane Physical Interface Module | 174 RS-232 DTE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module | 182...
  • Page 189 Table 93: EIA-530 DTE Cable Pinouts for the 8-Port Serial GPIM (continued) VHDCI-68 DB-25 (2) DB-25 (1) Pin Pair Pairing Description Shield Ground Pair 6 Receive Ready (A) Pair 7 Receive Timing (B) Pair 6 Receiver Ready (B) Pair 8 Terminal Timing Pair 9 Send Timing (B)
  • Page 190 Table 93: EIA-530 DTE Cable Pinouts for the 8-Port Serial GPIM (continued) VHDCI-68 DB-25 (2) DB-25 (1) Pin Pair Pairing Description T1 to T3 Protocol Mode Shield Ground Pair 1 Send Data (A) Pair 2 Receive Data (A) Pair 3 Request to Send Pair 4 Clear to Send (A)
  • Page 191 Table 93: EIA-530 DTE Cable Pinouts for the 8-Port Serial GPIM (continued) VHDCI-68 DB-25 (2) DB-25 (1) Pin Pair Pairing Description Local Loopback Pair 3 Request to Send Pair 10 Terminal Ready (A) Pair 10 Terminal Ready (B) Pair 8 Terminal Timing T31 to T27 Protocol...

  • Page 192: Eia-530A Dce Cable Pinouts For 8-Port Serial Gigabit-Backplane Physical Interface Module

    EIA-530A DCE Cable Pinouts for 8-Port Serial Gigabit-Backplane Physical Interface Module Table 94 on page 174 gives the EIA-530A DCE cable pinouts for 8-Port Serial Gigabit-Backplane Physical Interface Module (GPIM). Table 94: EIA-530A DCE Cable Pinouts for the 8-Port Serial GPIM Output VHDCI-68 DB-25 (1)
  • Page 193 Table 94: EIA-530A DCE Cable Pinouts for the 8-Port Serial GPIM (continued) Output VHDCI-68 DB-25 (1) DB-25 (2) (O) and Input (I) Pair Pairing Description Pair 3 Send Data (B) Pair 7 Terminal Timing (A) Local Loopback Pair 4 Clear to Send (B) Data Mode (A) Shield Ground Pair 8...
  • Page 194 Table 94: EIA-530A DCE Cable Pinouts for the 8-Port Serial GPIM (continued) Output VHDCI-68 DB-25 (1) DB-25 (2) (O) and Input (I) Pair Pairing Description Pair 8 Receive Timing (B) Pair 2 Send Timing (B) Pair 5 Request to Send (B) Pair 1 Receive Data (B) Pair 2...

  • Page 195: Eia-530A Dte Cable Pinouts For The 8-Port Serial Gigabit-Backplane Physical Interface Module

    EIA-530A DTE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module | 177 RS-232 DTE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module | 182 RS-232 DCE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module | 180 V.35 DTE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module | 188 V.35 DCE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module | 184 X.21 DTE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module | 193...
  • Page 196 Table 95: EIA-530A DTE Cable Pinouts for the 8-Port Serial GPIM (continued) VHDCI-68 DB-25 (1) DB-25 (2) Pair Pairing Description Pair 2 Send Timing (B) Pair 5 Clear to Send (B) Pair 1 Send Data (B) Pair 2 Send Timing (A) Pair 3 Receive Data (B) Pair 7...
  • Page 197 Table 95: EIA-530A DTE Cable Pinouts for the 8-Port Serial GPIM (continued) VHDCI-68 DB-25 (1) DB-25 (2) Pair Pairing Description Shield Ground Receive Ready (A) Pair 6 Receive Timing (B) Pair 7 Receiver Ready (B) Pair 6 Receiver Ready (B) Pair 8 Terminal Timing (B) Pair 2...

  • Page 198: Dce Cable Pinouts For The 8-Port Serial Gigabit-Backplane Physical Interface Module

    Table 95: EIA-530A DTE Cable Pinouts for the 8-Port Serial GPIM (continued) VHDCI-68 DB-25 (1) DB-25 (2) Pair Pairing Description T19 to T18 Protocol Mode RELATED DOCUMENTATION EIA-449 DTE Cable Pinouts for 8-Port Serial Gigabit-Backplane Physical Interface Module | 163 EIA-449 DCE Cable Pinouts for 8-Port Serial Gigabit-Backplane Physical Interface Module | 159 EIA-530 DTE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module | 170 EIA-530 DCE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module | 167...
  • Page 199 Table 96: RS-232 DCE Cable Pinouts for the 8-Port Serial GPIM (continued) VHDCI-68 Pin DB-25 (1) Pin DB-25 (2) Pin Description Request to Send (A) Terminal Ready (A) Shield Ground Receive Ready (A) Send Timing (A) Terminal Timing (A) Local Loopback Data Mode (A) Receive Timing (A) T13 to T12...

  • Page 200: Dte Cable Pinouts For The 8-Port Serial Gigabit-Backplane Physical Interface Module

    Table 96: RS-232 DCE Cable Pinouts for the 8-Port Serial GPIM (continued) VHDCI-68 Pin DB-25 (1) Pin DB-25 (2) Pin Description Data Mode (A) Receive Timing (A) T31 to T30 Protocol Identifier_0 RELATED DOCUMENTATION EIA-449 DTE Cable Pinouts for 8-Port Serial Gigabit-Backplane Physical Interface Module | 163 EIA-449 DCE Cable Pinouts for 8-Port Serial Gigabit-Backplane Physical Interface Module | 159 EIA-530 DTE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module | 170 EIA-530 DCE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module | 167...
  • Page 201 Table 97: RS-232 DTE Cable Pinouts for the 8-Port Serial GPIM (continued) VHDCI-68 Pin DB-25 (1) Pin DB-25 (2) Pin Description Receive Data (A) Request to Send (A) Clear to Send (A) Data Mode (A) Shield Ground Receive Ready (A) Send Timing (A) Receive Timing (A) Local Loopback...

  • Page 202: Dce Cable Pinouts For The 8-Port Serial Gigabit-Backplane Physical Interface Module

    Table 97: RS-232 DTE Cable Pinouts for the 8-Port Serial GPIM (continued) VHDCI-68 Pin DB-25 (1) Pin DB-25 (2) Pin Description Send Timing (A) Receive Timing (A) Local Loopback Terminal Ready (A) Terminal Timing (A) T31 to T30 Protocol Identifier_0 T19 to T18 Protocol Mode RELATED DOCUMENTATION...
  • Page 203 Table 98: V.35 DCE Cable Pinouts for the 8-Port Serial GPIM VHDCI-68 M34 (1) Pin M34 (2) Pin Pair Pairing Description Shield Ground Shield Ground Clear to Send (A) Request to Send Terminal Ready Receive Ready Data Mode (A) Local Loopback Pair 1 Receive Data (A) Pair 2...
  • Page 204 Table 98: V.35 DCE Cable Pinouts for the 8-Port Serial GPIM (continued) VHDCI-68 M34 (1) Pin M34 (2) Pin Pair Pairing Description Pair 5 Send Timing (B) T13 to T12 Protocol Identifier_0 T11 to T15 Protocol Identifier_1 Shield Ground Shield Ground Clear to Send (A) Request to Send Terminal Ready...
  • Page 205 Table 98: V.35 DCE Cable Pinouts for the 8-Port Serial GPIM (continued) VHDCI-68 M34 (1) Pin M34 (2) Pin Pair Pairing Description Pair 3 Receive Timing Pair 4 Terminal Timing Pair 5 Send Timing (A) Pair 5 Send Timing (B) T31 to T30 Protocol Identifier_0...

  • Page 206: Dte Cable Pinouts For The 8-Port Serial Gigabit-Backplane Physical Interface Module

    V.35 DTE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module Table 99 on page 188 gives the V.35 DTE cable pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Modules. Table 99: V.35 DTE Cable Pinouts for the 8-Port Serial GPIM VHDCI-68 M34 (1) Pin M34 (2) Pin...
  • Page 207 Table 99: V.35 DTE Cable Pinouts for the 8-Port Serial GPIM (continued) VHDCI-68 M34 (1) Pin M34 (2) Pin Pair Pairing Description Pair 5 Send Timing (A) Pair 5 Send Timing (B) T13 to T12 Protocol Identifier_0 T11 to T15 Protocol Identifier_1 T1 to T3...
  • Page 208 Table 99: V.35 DTE Cable Pinouts for the 8-Port Serial GPIM (continued) VHDCI-68 M34 (1) Pin M34 (2) Pin Pair Pairing Description Pair 3 Terminal Timing (B) Pair 4 Receive Timing (B) Pair 5 Send Timing (A) Pair 5 Send Timing (B) T31 to T30 Protocol Identifier_0...

  • Page 209: Dce Cable Pinouts For The 8-Port Serial Gigabit-Backplane Physical Interface Module

    X.21 DCE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module Table 100 on page 191 gives the X.21 DCE cable pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Modules. Table 100: X.21 DCE Cable Pinouts for the 8-Port Serial GPIM VHDCI-68 DB-15 (1) DB-15 (2)
  • Page 210 Table 100: X.21 DCE Cable Pinouts for the 8-Port Serial GPIM (continued) VHDCI-68 DB-15 (1) DB-15 (2) Pair Pairing Description Pair 3 Send Data (A) Pair 4 Request to Send (A) Pair 5 Terminal Timing (A) Shield Ground Pair 1 Receive Data (B) Pair 2 Clear to Send (B)

  • Page 211: Dte Cable Pinouts For The 8-Port Serial Gigabit-Backplane Physical Interface Module

    X.21 DTE Cable Pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Module Table 101 on page 193 gives the X.21 DTE cable pinouts for the 8-Port Serial Gigabit-Backplane Physical Interface Modules. Table 101: X.21 DTE Cable Pinouts for the 8-Port Serial GPIM VHDCI-68 DB-15 (1) DB-15 (2)
  • Page 212 Table 101: X.21 DTE Cable Pinouts for the 8-Port Serial GPIM (continued) VHDCI-68 DB-15 (1) DB-15 (2) Pair Pairing Description Pair 3 Receive Data (A) Pair 4 Clear to Send (A) Pair 5 Receive Timing (A) Shield Ground Pair 1 Send Data (B) Pair 2 Request to Send (B)

  • Page 213: Configuration

    PART Configuration Configuring Mini-Physical Interface Modules | 196 Configuring Gigabit-Backplane Physical Interface Modules | 214 Mini-Physical Interface Module and Gigabit-Backplane Physical Interface Module Operating Modes and Supported Modules | 239...

  • Page 214: Configuring Mini-Physical Interface Modules

    To enable the 1-Port Gigabit Ethernet small form-factor pluggable Mini-Physical Interface Module (SFP Mini-PIM) installed on the SRX Series Services Gateway, you must configure the basic settings for the PIM. You can perform the configuration tasks for this using either the J-Web interface or the CLI.

  • Page 215: Using The J-Web Interface

    Using the J-Web Interface To perform basic configuration of the 1-Port Gigabit Ethernet SFP Mini-PIM and to configure network interfaces for the services gateway using the J-Web interface: 1. In the J-Web interface, select Configure>Interfaces>Ports. The Interfaces page is displayed and lists the network interfaces present on the services gateway, along with configuration information (if the device is configured).

  • Page 216: Using The Cli

    Using the CLI To perform basic configuration of the 1-Port Gigabit Ethernet SFP Mini-PIM and to configure network interfaces for the services gateway with the CLI: NOTE: The configuration settings given in the following steps are an example. The actual configuration settings might vary depending on your requirements.

  • Page 217: 1-Port Sfp Mini-Physical Interface Module Basic Configuration

    NOTE: In the example shown above, the output for the 1-Port SFP Mini-PIM appears as 1X GE SFP mPIM, and the output for the 1-Port Gigabit Ethernet SFP Mini-PIM appears as 1X GE High-Perf SFP mPIM. Verify the status of the interface: show interfaces terse Assign the port an IP address, for example: set interfaces ge-1/0/0 unit 0 family inet address interface address/destination prefix...

  • Page 218: Using The J-Web Interface

    To enable the 1-Port small form-factor pluggable Mini-Physical Interface Module (SFP Mini-PIM) installed on the SRX Series Services Gateway, you must configure the basic settings for the PIM. You can perform the configuration tasks for this using either the J-Web interface or the CLI.

  • Page 219: Using The Cli

    Using the CLI To perform basic configuration for the 1-Port SFP Mini-PIM and to configure network interfaces for the services gateway with the CLI: Verify that the 1-Port SFP Mini-PIM is installed on the device: show chassis hardware Verify the status of the interface: show interfaces terse Assign the port an IP address: set interfaces ge-1/0/0 unit 0 family inet address interface address/destination prefix...

  • Page 220: Using The J-Web Interface

    To enable the 1-Port ADSL2+ Mini-Physical Interface Module (Mini-PIM) installed on the SRX Series Services Gateway, you must configure the basic settings for the PIM. You can perform the configuration tasks for this using either the J-Web interface or the CLI:...

  • Page 221: Using The Cli

    Using the CLI To perform basic configuration for the 1-Port ADSL2+ Mini-PIM and to configure network interfaces for the services gateway with the CLI: Verify that the serial interface is installed on the device: show chassis hardware Verify the status of the interface: show interfaces terse Assign the port an IP address: set interfaces at-1/0/0 unit 0 family inet address interface address/destination prefix...

  • Page 222: 1-Port Docsis Mini-Physical Interface Module Basic Configuration

    To enable the Data over Cable System Interface Specifications Mini-Physical Interface Module (1-Port DOCSIS Mini-PIM) installed on the SRX Series Services Gateway, you must configure the basic settings for the PIM. You can perform the configuration tasks for this using either the J-Web interface or the CLI:...

  • Page 223: Using The Cli

    Protocols=Allow All d. Click OK to save changes, and click Commit to apply the configuration and other pending changes. 4. To use the port on the Mini-PIM, you must also set security policies. Select the following settings: a. Select Configure>Security>Policy>Apply Policy. b.

  • Page 224: 1-Port G.shdsl 8-Wire Mini-Physical Interface Module Basic Configuration

    1-Port DOCSIS Mini-Physical Interface Module LEDs | 54 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Basic Configuration To enable the 1-Port G.SHDSL Mini-Physical Interface Module (Mini-PIM) installed on the SRX Series Services Gateway, you must configure its properties. You can perform the same configuration tasks using J-Web or the CLI.

  • Page 225: 1-Port Serial Mini-Physical Interface Module Basic Configuration

    Using the J-Web Interface | 207 Using the CLI | 208 To enable the 1-Port Serial Mini-Physical Interface Module (Mini-PIM) installed on the SRX Series Services Gateway, you must configure the basic settings for the PIM. You can perform the configuration tasks for this using either the J-Web interface or the CLI.

  • Page 226: Using The Cli

    Protocols=Allow All d. Click OK to save changes, and click Commit to apply the configuration and other pending changes (if any). 4. To use the port on the Mini-PIM, you must also set security policies. Select the following settings: a. Select Configure>Security>Policy>Apply Policy. b.

  • Page 227: 1-Port T1/E1 Mini-Physical Interface Module Basic Configuration

    Using the J-Web Interface | 209 Using the CLI | 210 To enable the 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM) installed on the SRX Series Services Gateway, you must configure the basic settings for the PIM. You can perform the configuration tasks for this using either the J-Web interface or the CLI.

  • Page 228: Using The Cli

    c. For host inbound traffic, set the following: System Services=Allow All Protocols=Allow All d. Click OK to save changes, and click Commit to apply the configuration and other pending changes (if any). 4. To use the port on the Mini-PIM, you must also set security policies. Select the following settings: a.

  • Page 229: 1-Port Vdsl2 (Annex A) Mini-Physical Interface Module Basic Configuration

    Add or select security zones for host inbound traffic protocol options: For T1 interfaces: set security zones security-zone trust interfaces t1-1/0/0.0 host-inbound-traffic protocols all For E1 interfaces: set security zones security-zone trust interfaces e1-1/0/0.0 host-inbound-traffic protocols all Set security policies: set security policies default-policy permit-all NOTE: You can use the CLI commands set interfaces t1–1/0/0 or set interfaces e1–1/0/0 to...

  • Page 230: Using The J-Web Interface

    Using the J-Web Interface To perform basic configuration for the 1-Port VDSL2 (Annex A) Mini-Physical Interface Module (Mini-PIM) and to configure network interfaces for the services gateway using the J-Web interface: 1. In the J-Web interface, select Configure>Interfaces>Ports. The Interfaces page displays and lists the network interfaces present on the services gateway, along with configuration information (if configured).
  • Page 231 Verify that the 1-Port VDSL2 interface is installed on the device: show chassis hardware Verify the status of the interface: show interfaces terse Assign the port an IP address: set interfaces pt-1/0/0 unit 0 family inet address interface address/destination prefix Add or select a security zone;...

  • Page 232: Configuring Gigabit-Backplane Physical Interface Modules

    IN THIS SECTION Using the CLI | 214 To enable the 1-Port Clear Channel DS3/E3 GPIM installed on the SRX Series Services Gateway, you must configure its properties. You can perform the basic configuration tasks using the CLI. In addition, you can configure a wide variety of options that are not encountered frequently.
  • Page 233 Verify that the 1-Port Clear Channel DS3/E3 GPIM is installed on the services gateway: show chassis hardware root@srx650r03> show chassis hardware Hardware inventory: Item Version Part number Serial number Description Chassis AJ2210AA0064 SRX650 Midplane REV 09 710-023875 AABJ4077 System IO REV 08 710-023209 AABK2897...
  • Page 234 root@srx650r03> show chassis fpc pic-status Slot 0 Online PIC 0 Online 4x GE Base PIC Slot 2 Offline Slot 5 Offline Slot 6 Online PIC 0 Online 4x CT1E1 gPIM Slot 7 Offline Slot 8 Online PIC 0 Online 1x CLR CH T3/E3 Set the DS3/E3 port mode;...

  • Page 235: 2-Port 10-Gigabit Ethernet Xpim Basic Configuration

    Using the Point and Click CLI to Set Interface Mode and Speed Options | 218 Using the CLI | 219 To enable the 2-Port 10-Gigabit Ethernet XPIM installed on the SRX Series Services Gateway, you must configure the basic settings for the PIM. You can perform the configuration tasks for this using the J-Web interface, the Point and Click CLI, or the CLI.

  • Page 236: Using The Point And Click Cli To Set Interface Mode And Speed Options

    Protocols=Allow All d. Click OK, and click Commit to apply the configuration and other pending changes (if any). 4. To use the port on the XPIM, you must also set security policies. Select the following settings: a. Select Configure>Security>Policy>Apply Policy. b.

  • Page 237: Using The Cli

    NOTE: For copper ports, all 10 Mbps, 100 Mbps, 1 G, and 10 G speeds are supported; for fiber ports, only 1 G and 10 G speeds are supported. 6. Click OK to save changes, and click Commit to apply the configuration and other pending changes (if any).
  • Page 238 2-Port 10-Gigabit Ethernet XPIM Key Features | 87 2-Port 10 Gigabit Ethernet XPIM Hardware Specifications | 88 2-Port 10 Gigabit Ethernet XPIM LEDs | 90 2-Port 10-Gigabit Ethernet XPIM Components | 84 Installing a Gigabit-Backplane Physical Interface Module on the SRX Series Services Gateway | 253...

  • Page 239: 8-Port Gigabit Ethernet Sfp Xpim Basic Configuration

    8-Port Gigabit Ethernet SFP XPIM Basic Configuration The 8-Port Gigabit Ethernet small form-factor pluggable Gigabit-Backplane Physical Interface Module (SFP XPIM) provides connectivity to a single Gigabit Ethernet device or to a network. After you install the XPIM in the services gateway, you configure a network interface on the XPIM. NOTE: Only the SRX650 Services Gateway supports hot-swappable functionality for GPIMs.
  • Page 240 user@host> show chassis fpc pic-status The following sample output shows that FPC 3 PIC 0 is online: root@magni02-2a> show chassis fpc pic-status Slot 0 Online PIC 0 Online 6x GE, 4x GE SFP Base PIC Slot 3 Online PIC 0 Online 8x GE SFP gPIM 3.
  • Page 241 Last flapped : 2012-04-03 00:28:04 PDT (23:49:14 ago) Statistics last cleared: Never Traffic statistics: Input bytes 0 bps Output bytes 0 bps Input packets: 0 pps Output packets: 0 pps Input errors: Errors: 0, Drops: 0, Framing errors: 0, Runts: 0, Policed discards: 0, L3 incompletes: 0, L2 channel errors: 0, L2 mismatch timeouts: 0, FIFO errors: 0, Resource errors: 0 Output errors:...
  • Page 242 Link mode: Full-duplex, Flow control: None, Remote fault: OK, Link partner Speed: 1000 Mbps Local resolution: Flow control: None, Remote fault: Link OK Packet Forwarding Engine configuration: Destination slot: 3 CoS information: Direction : Output CoS transmit queue Bandwidth Buffer Priority Limit usec 0 best-effort...

  • Page 243: 8-Port Serial Gpim Basic Configuration

    8-Port Serial GPIM Basic Configuration The 8-Port Serial Gigabit-Backplane Physical Interface Module (GPIM) is a network interface card (NIC) that installs in the front slots of the SRX650 and SRX550 Services Gateways to provide physical connections to a WAN. After you install the GPIM in the services gateway, you configure a network interface on the GPIM.
  • Page 244 To configure the 8-Port Serial GPIM and configure a network interface on the GPIM: 1. Verify that the 8-Port Serial GPIM is installed in the services gateway: user@host > show chassis hardware The following sample output shows that FPC 3 PIC 0 is the GPIM: Hardware inventory: Item Version...
  • Page 245 root@srx-650-a> show interfaces se-4/0/* terse Interface Admin Link Proto Local Remote se-4/0/0 se-4/0/1 se-4/0/2 se-4/0/3 se-4/0/4 se-4/0/5 se-4/0/6 se-4/0/7 The following sample output shows extensive details of se-4/0/0 on the interface: root@srx-650-a> show interfaces se-4/0/0 extensive Physical interface: se-4/0/0, Enabled, Physical link is Up Interface index: 150, SNMP ifIndex: 773, Generation: 177 Type: Serial, Link-level type: PPP, MTU: 1504, Maximum speed: 8mbps Device flags...
  • Page 246 To DTE: CTS: up, DCD: up, DSR: up From DTE: DTR: up, RTS: up DCE loopback override: Off Clocking mode: internal Loopback: none Tx clock: non-invert Line encoding: nrz Packet Forwarding Engine configuration: Destination slot: 4 CoS information: Direction : Output CoS transmit queue Bandwidth Buffer Priority...

  • Page 247: 16-Port Gigabit Ethernet Xpim Basic Configuration

    8-Port Serial GPIM Interface Specifications | 27 16-Port Gigabit Ethernet XPIM Basic Configuration To enable the 16-Port Gigabit Ethernet XPIM installed on your SRX Series Services Gateway, you must configure its properties. You can perform the same configuration tasks using the J-Web interface or the CLI configuration editor.

  • Page 248: Using The J-Web Interface

    Using the J-Web Interface To perform basic configuration for the 24-Port Gigabit Ethernet XPIM and to configure network interfaces for the services gateway using the J-Web interface: 1. In the J-Web interface, select Configure>Interfaces>Ports. The Interfaces page lists the network interfaces present on the services gateway. Verify whether the interface has been configured by reviewing the information in the Configured column (yes/no).
  • Page 249 24-Port Gigabit Ethernet XPIM Key Features | 115 24-Port Gigabit Ethernet XPIM Hardware Specifications | 116 24-Port Gigabit Ethernet XPIM LEDs | 117 24-Port Gigabit Ethernet XPIM Components | 112 Installing a Double-High, Double-Wide Gigabit-Backplane Physical Interface Module on the SRX Series Services Gateway | 256...

  • Page 250: Dual Ct1/E1 Gpim Basic Configuration

    Dual CT1/E1 GPIM Basic Configuration IN THIS SECTION Using the J-Web Interface | 232 Using the CLI to Configure the CT1 Interface | 233 Using the CLI to Configure the CE1 Interface | 234 To enable the Dual CT1/E1 Gigabit-Backplane Physical Interface Module (GPIM) installed on your SRX Series Services Gateway, you must configure the basic settings for the PIM.

  • Page 251: Using The Cli To Configure The Ct1 Interface

    6. To use the port on the GPIM, you must assign it to a security zone other than the Null zone. Optionally, you can also assign the port an IP address (for example, 192.168.3.1/24). Enter or select the following settings: a.

  • Page 252: Using The Cli To Configure The Ce1 Interface

    set interfaces ct1-3/0/0 no-partition interface-type t1 Configure the child T1 interface and assign an IP address: set interfaces t1-3/0/0 unit 0 family inet address ip4–address/prefix Assign MTU values to the child T1 interface: set interfaces t1-3/0/0 unit 0 mtu mtu values Configure a security zone for the child T1 interface and set the configuration for host inbound traffic services and protocols: set security zones security-zone trust interfaces t1-3/0/0 host-inbound-traffic system-services all...

  • Page 253: Quad Ct1/E1 Gpim Basic Configuration

    set security zones security-zone trust interfaces e1-3/0/0 host-inbound-traffic protocols all Set security policies: set security policies default-policy permit-all Quad CT1/E1 GPIM Basic Configuration IN THIS SECTION Using the J-Web Interface | 235 Using the CLI to Configure the CT1 Interface | 236 Using the CLI to Configure the CE1 Interface | 237 To enable the Quad CT1/E1 Gigabit-Backplane Physical Interface Module (GPIM) installed on the SRX Series Services Gateway, you must configure the basic settings for the PIM.

  • Page 254: Using The Cli To Configure The Ct1 Interface

    4. Click OK to save changes. 5. Select the name of the child interface (T1 or E1) you want to edit. 6. To use the port on the GPIM, you must assign it to a security zone other than the Null zone. Optionally, you can also assign the port an IP address (for example, 192.168.3.1/24).

  • Page 255: Using The Cli To Configure The Ce1 Interface

    show chassis fpc Configure the parent CT1 interface with no partitioning: set interfaces ct1-1/0/0 no-partition interface-type t1 Configure the child T1 interface and assign an IP address: set interfaces t1-1/0/0 unit 0 family inet addressip4–address/prefix Assign MTU values to the child T1 interface: set interfaces t1-1/0/0 unit 0 mtu mtu values Configure a security zone for the child T1 interface and set the configuration for host inbound traffic services and protocols:...
  • Page 256 Configure a security zone for the child E1 interface and set the configuration for host inbound traffic services and protocols: set security zones security-zone trust interfaces e1-1/0/0 host-inbound-traffic system-services all set security zones security-zone trust interfaces e1-1/0/0 host-inbound-traffic protocols all Set security policies: set security policies default-policy permit-all...

  • Page 257: Mini-Physical Interface Module And Gigabit-Backplane Physical Interface Module Operating Modes And Supported Modules

    CHAPTER 27 Mini-Physical Interface Module and Gigabit-Backplane Physical Interface Module Operating Modes and Supported Modules IN THIS CHAPTER 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Operating Modes | 239 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module Operating Modes The 1-Port G.SHDSL 8-Wire Mini-Physical Interface Module (Mini-PIM) can be configured to operate in the following modes: 4X2-wire (4-port 2-wire) 2X4-wire (2-port 4-wire)
  • Page 258 NOTE: All the annexes supported on the 1-Port G.SHDSL 8-Wire Mini-PIM can operate in 2-wire, 4-wire, and 8-wire modes. Table 102 on page 240 lists the 1-Port G.SHDSL 8-Wire Mini-PIM data rates for the different operating modes. Table 102: 1-Port G.SHDSL 8-Wire Mini-PIM Data Rates Annexes Operating Modes Data Rates (Mbps)

  • Page 259: Replacing Interface Modules

    PART Replacing Interface Modules Overview of Replacing Interface Modules | 242 Replacing Mini-Physical Interface Modules | 246 Replacing Gigabit-Backplane Physical Interface Modules | 252 Contacting Customer Support and Returning Components | 261...

  • Page 260: Overview Of Replacing Interface Modules

    Phillips (+) screwdrivers, number 1 RELATED DOCUMENTATION Removing a Blank Mini-Physical Interface Module Faceplate from the SRX Series Services Gateway | 246 Installing a Mini-Physical Interface Module in the SRX Series Services Gateway | 247 Removing a Mini-Physical Interface Module from the SRX Series Services Gateway | 249...

  • Page 261: Required Tools And Parts For Replacing A Gigabit-Backplane Physical Interface Module

    Removing a Blank Gigabit-Backplane Physical Interface Module Faceplate from the SRX Series Services Gateway | 253 Installing a Gigabit-Backplane Physical Interface Module on the SRX Series Services Gateway | 253 Installing a Double-High, Double-Wide Gigabit-Backplane Physical Interface Module on the SRX Series...

  • Page 262: Preventing Electrostatic Discharge Damage To The Srx Series Services Gateway

    Preventing Electrostatic Discharge Damage to the SRX Series Services Gateway Many services gateway hardware components are sensitive to damage from static electricity. Some components can be impaired by voltages as low as 30 V. You can easily generate potentially damaging static voltages whenever you handle plastic or foam packing material or if you move components across plastic or carpets.
  • Page 263 Installing a Gigabit-Backplane Physical Interface Module on the SRX Series Services Gateway | 253 Removing a Gigabit-Backplane Physical Interface Module from the SRX Series Services Gateway | 258...

  • Page 264: Replacing Mini-Physical Interface Modules

    Replacing Mini-Physical Interface Modules IN THIS CHAPTER Removing a Blank Mini-Physical Interface Module Faceplate from the SRX Series Services Gateway | 246 Installing a Mini-Physical Interface Module in the SRX Series Services Gateway | 247 Removing a Mini-Physical Interface Module from the SRX Series Services Gateway | 249...

  • Page 265: Installing A Mini-Physical Interface Module In The Srx Series Services Gateway

    4. Remove the faceplate. See Figure 41 on page 247. Figure 41: Removing a Blank Mini-PIM Faceplate from an SRX Series Services Gateway RELATED DOCUMENTATION Required Tools and Parts for Replacing a Mini-Physical Interface Module | 242 Installing a Mini-Physical Interface Module in the SRX Series Services Gateway | 247...
  • Page 266 To install a Mini-Physical Interface Module (Mini-PIM) in the SRX Series Services Gateway: 1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to the grounding point on the back of the services gateway.

  • Page 267: Removing A Mini-Physical Interface Module From The Srx Series Services Gateway

    Required Tools and Parts for Replacing a Mini-Physical Interface Module | 242 Removing a Mini-Physical Interface Module from the SRX Series Services Gateway | 249 Removing a Blank Mini-Physical Interface Module Faceplate from the SRX Series Services Gateway | 246 SRX Series Services Gateway Mini-Physical Interface Modules Overview | 6...
  • Page 268 When installing a blank Mini-PIM faceplate, make sure that the padded side of the faceplate is facing up. RELATED DOCUMENTATION Required Tools and Parts for Replacing a Mini-Physical Interface Module | 242 Removing a Blank Mini-Physical Interface Module Faceplate from the SRX Series Services Gateway | 246...
  • Page 269 Installing a Mini-Physical Interface Module in the SRX Series Services Gateway | 247 SRX Series Services Gateway Mini-Physical Interface Modules Overview | 6...

  • Page 270: Replacing Gigabit-Backplane Physical Interface Modules

    Removing a Blank Gigabit-Backplane Physical Interface Module Faceplate from the SRX Series Services Gateway | 253 Installing a Gigabit-Backplane Physical Interface Module on the SRX Series Services Gateway | 253 Installing a Double-High, Double-Wide Gigabit-Backplane Physical Interface Module on the SRX Series...

  • Page 271: Services Gateway

    When installing a blank GPIM faceplate, make sure that the padded side of the faceplate is facing up. RELATED DOCUMENTATION Installing a Gigabit-Backplane Physical Interface Module on the SRX Series Services Gateway | 253 Installing a Double-High, Double-Wide Gigabit-Backplane Physical Interface Module on the SRX Series Services Gateway | 256...
  • Page 272 GPIMs. Do not remove a blank faceplate unless you are immediately installing a GPIM in the empty slot. For more information about removing a blank faceplate, see “Removing a Blank Gigabit-Backplane Physical Interface Module Faceplate from the SRX Series Services Gateway” on page 253.
  • Page 273 Figure 44: Installing a Single-High, Single-Wide GPIM in an SRX650 Services Gateway 4. Using a Phillips (+) screwdriver, tighten the captive screws on each side of the GPIM faceplate. 5. Insert the appropriate cables into the cable connectors on the GPIM. 6.

  • Page 274: Installing A Double-High, Double-Wide Gigabit-Backplane Physical Interface Module On The Srx Series Services Gateway

    RELATED DOCUMENTATION Removing a Gigabit-Backplane Physical Interface Module from the SRX Series Services Gateway | 258 Required Tools and Parts for Replacing a Gigabit-Backplane Physical Interface Module | 243 Installing a Double-High, Double-Wide Gigabit-Backplane Physical Interface...
  • Page 275 1. Remove the four blank GPIM slot covers from the slots into which you will install the double-high, double-wide GPIM.“Removing a Blank Gigabit-Backplane Physical Interface Module Faceplate from the SRX Series Services Gateway” on page 253 2. Using a number 2 Phillips (+) screwdriver, remove the screw from the center GPIM guide-rail bracket, as shown in Figure 46 on page 257, and remove the guide-rail bracket.

  • Page 276: Removing A Gigabit-Backplane Physical Interface Module From The Srx Series Services Gateway

    Removing a Blank Gigabit-Backplane Physical Interface Module Faceplate from the SRX Series Services Gateway | 253 Installing a Gigabit-Backplane Physical Interface Module on the SRX Series Services Gateway | 253 Removing a Gigabit-Backplane Physical Interface Module from the SRX Series Services Gateway | 258...
  • Page 277 To remove a GPIM from the SRX Series Services Gateway: NOTE: This procedure is applicable for the following GPIMs: Single-high, single-wide GPIMs Double-high, single-wide GPIMs Double-high, double-wide GPIMs 1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to one of the ESD points on the chassis.
  • Page 278 Removing a Blank Gigabit-Backplane Physical Interface Module Faceplate from the SRX Series Services Gateway | 253 Installing a Gigabit-Backplane Physical Interface Module on the SRX Series Services Gateway | 253 Required Tools and Parts for Replacing a Gigabit-Backplane Physical Interface Module | 243...

  • Page 279: Contacting Customer Support And Returning Components

    Contacting Customer Support | 261 Return Procedure for SRX Series Services Gateway Hardware Components | 262 Locating the SRX Series Services Gateway Hardware Component Mini-PIM or GPIM Serial Number Label | 263 Information You Might Need to Supply to JTAC | 263...

  • Page 280: Return Procedure For Srx Series Services Gateway Hardware Components

    RELATED DOCUMENTATION Return Procedure for SRX Series Services Gateway Hardware Components Locating the SRX Series Services Gateway Hardware Component Mini-PIM or GPIM Serial Number Label Information You Might Need to Supply to JTAC | 263 Packing the SRX Series Services Gateway Hardware Components for Shipment...

  • Page 281: Locating The Srx Series Services Gateway Hardware Component Mini-Pim Or Gpim Serial Number Label

    Gigabit-Backplane Physical Interface Modules (GPIMs) are hot-swappable and field-replaceable on the SRX Series Services Gateway. Each GPIM has a unique serial number. The exact location might be slightly different on different GPIMs (XPIMs or GPIMs), depending on the placement of the components on the GPIM.

  • Page 282: Required Tools And Parts For Packing The Srx Series Services Gateway Hardware Components

    Required Tools and Parts for Packing the SRX Series Services Gateway Hardware Components The following tools and parts are required to pack the SRX Series Services Gateway Hardware Components: Blank panel to cover empty Mini-PIM slot Electrostatic bag or antistatic mat, for each component...

  • Page 283: Packing The Hardware Components For Shipment

    This topic includes the following section: Packing the Hardware Components for Shipment Follow these guidelines for packing and shipping individual components of the services gateway: When you return a component, make sure that it is adequately protected with packing materials and packed so that the pieces are prevented from moving around inside the carton.

This manual is also suitable for:

Srx550Srx650Srx220Srx240Srx 210

Table of Contents
