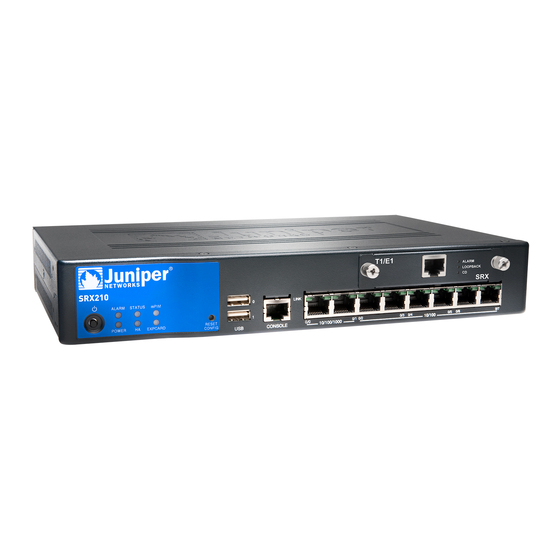

Juniper SRX210 Instructions

Connecting the SRX210 Services Gateway to the Power Supply
To connect the device to the power supply:
CAUTION: Before connecting the device to the power supply, attach an ESD strap
to an ESD point and place the other end of the strap around your bare wrist.
NOTE: If you are installing your services gateway on a desk, ensure that your device
is adequately grounded using the grounding point on the back panel of the chassis.
Plug the DC connector end of the power cable into the power connector on the
1.
back of the device (see Figure 1).
Plug the AC adapter end of the power cable into an AC power outlet.
2.
Figure 1: Connecting the SRX210 Services Gateway to the Power Supply
NOTE: The device must be connected to earth ground during normal operation. The
protective earthing terminal on the rear of the chassis is provided to connect the
device to ground.
CAUTION: We recommend using a surge protector for the power connection.
NOTE: Use the cable tie holder to secure the power cord on to the power supply
point.
Connecting the SRX210 Services Gateway to the Power Supply
1
