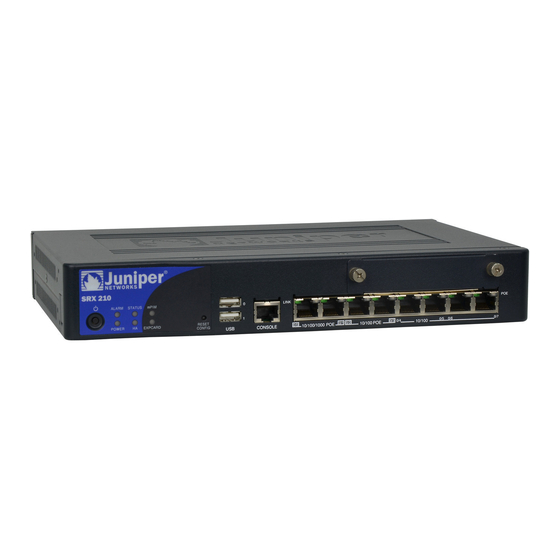

SRX210 Services Gateway 3G ExpressCard
Quick Start
Use the instructions in this guide to help you install the SRX210 Services Gateway 3G
ExpressCard. For details, see
The SRX210 Services Gateway Hardware Guide at
http://www.juniper.net/techpubs/a057.html
The Junos OS documentation at
http://www.juniper.net/techpubs/software/junos-srx/index.html
Overview of 3G Connectivity on SRX Series Services Gateways
The SRX210 Services Gateway has a built-in 3G ExpressCard slot (wireless modem
card). You can use the 3G ExpressCard sold through Juniper Networks for wireless data
connectivity to 3G networks.
Support for the 3G ExpressCard extends the already rich set of WAN connectivity
options available on the SRX210 Services Gateway. The SRX210 Services Gateway
supports a wireless interface as a backup for primary interfaces such as Gigabit Ethernet
and Fast Ethernet. You can also use the 3G interface as the primary interface.
3G Connectivity on GSM and CDMA Expresscards
Juniper Networks supports 3G ExpressCards that you can insert into the ExpressCard
slot in the SRX210 Services Gateway. When the services gateway is equipped with a 3G
ExpressCard and used in a branch office, the device can provide dial-out services to PC
users and forward IP traffic to the service provider's cellular network.
Juniper Networks supports the following 3G ExpressCards:
Sierra Wireless AirCard Global System for Mobile Communications (GSM)
High-Speed Downlink Packet Access (HSDPA) ExpressCard
Sierra Wireless AirCard GSM High-Speed Uplink Packet Access (HSUPA)
ExpressCard
Sierra Wireless AirCard Code-Division Multiple Access (CDMA) 1xEvolution-Data
Optimized (EV-DO) rev. A ExpressCard
GSM and CDMA are competing digital cellular phone technologies. CDMA is used by the
Verizon and Sprint service providers. There are several GSM technology users
worldwide.
NOTE: The SRX210 Services Gateway supports only certain Sierra Wireless Inc.
ExpressCards, which are supplied by Juniper Networks and orderable from the Juniper
Price List. For details on the models supported, see the SRX210 Services Gateway
Hardware Guide.
Installing the 3G ExpressCard in the SRX210 Services Gateway
ExpressCard Slot
Use the following instructions to install the 3G ExpressCard in the SRX210 Services
Gateway. See the following illustration for details on the location of the 3G ExpressCard
slot on the device's back panel.
SRX210 Services Gateway Back Panel
Callout Description
1 Power supply point
2 Cable tie holder
3 Grounding point
Task 1: Before You Begin
Before you begin, do the following:
1. Install your SRX210 Services Gateway and establish basic connectivity. For more
information, see the SRX210 Services Gateway Hardware Guide.
2. Establish an account with a cellular network service provider. Contact your service
provider for more information on creating an account.
For CDMA/EV-DO 3G ExpressCards, use the Electronic Serial Number (ESN)
available on the card to create an account with a CDMA service provider (Verizon or
Sprint). To access the ESN on the 3G ExpressCard:
user@host > show modem wireless interface cl-0/0/8 firmware
For HSPA (GSM/UMTS) 3G ExpressCards, a SIM card should be obtained from the
service provider and inserted into the SIM slot of the 3G ExpressCard.
Task 2: Install the 3G ExpressCard
To install the 3G ExpressCard on the SRX210 Services Gateway:
1. Ensure that the device is powered off.
2. Insert the 3G ExpressCard into the ExpressCard slot. Align the 3G ExpressCard as
follows:
Ensure that the 3G ExpressCard is parallel with the surface on which the services
gateway is placed.
Ensure that the center of the 3G ExpressCard is aligned with the center of the
ExpressCard slot on the services gateway.
Callout Description
4 Lock for security cable
5 ExpressCard slot
