Step 7.
4.
6.
5.
8.

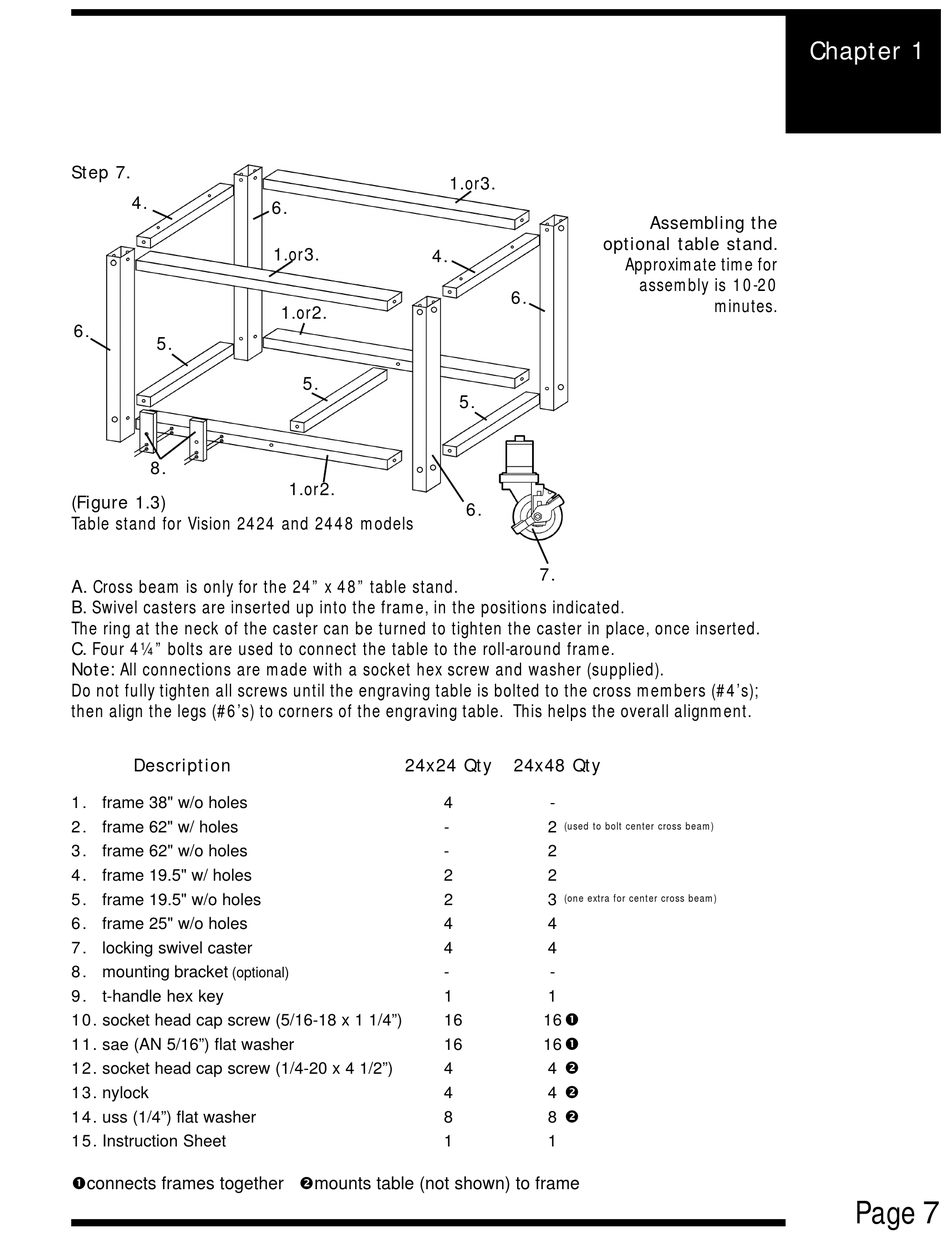

(Figure 1.3)
Table stand for Vision 2424 and 2448 models
A. Cross beam is only for the 24" x 48" table stand.
B. Swivel casters are inserted up into the frame, in the positions indicated.
The ring at the neck of the caster can be turned to tighten the caster in place, once inserted.
C. Four 4¼" bolts are used to connect the table to the roll-around frame.
Note: All connections are made with a socket hex screw and washer (supplied).
Do not fully tighten all screws until the engraving table is bolted to the cross members (#4's);
then align the legs (#6's) to corners of the engraving table. This helps the overall alignment.
Description
1. frame 38" w/o holes
2. frame 62" w/ holes
3. frame 62" w/o holes
4. frame 19.5" w/ holes
5. frame 19.5" w/o holes
6. frame 25" w/o holes
7. locking swivel caster
8. mounting bracket
(optional)
9. t-handle hex key
10. socket head cap screw (5/16-18 x 1 1/4")
11. sae (AN 5/16") flat washer
12. socket head cap screw (1/4-20 x 4 1/2")
13. nylock
14. uss (1/4") flat washer
15. Instruction Sheet
!connects frames together "mounts table (not shown) to frame
1.or3.
6.
1.or3.
4.
1.or2.
5.
1.or2.
24x24 Qty
4
-
-
2
2
4
4
-
1
16
16
4
4
8
1
optional table stand.
Approximate time for
6.
5.
6.
7.
24x48 Qty
-
(used to bolt center cross beam)
2
2
2
(one extra for center cross beam)
3
4
4
-
1
!
16
!
16
"
4
"
4
"
8
1
