Chapter 7:
Optional Accessories and Uses
Versa Vise
This low profile vise features a fixed top jaw and a moveable bottom jaw. Total opening is 3.5".
It adapts to most systems with at least 1" clearance under the spindle. This vise is designed to
be directly mounted to many engraving tables and includes T-nuts to allow quick placement on T-
slot tables. The jaws will hold a variety of clamps and jigs to secure odd shaped or difficult-to-
hold items.

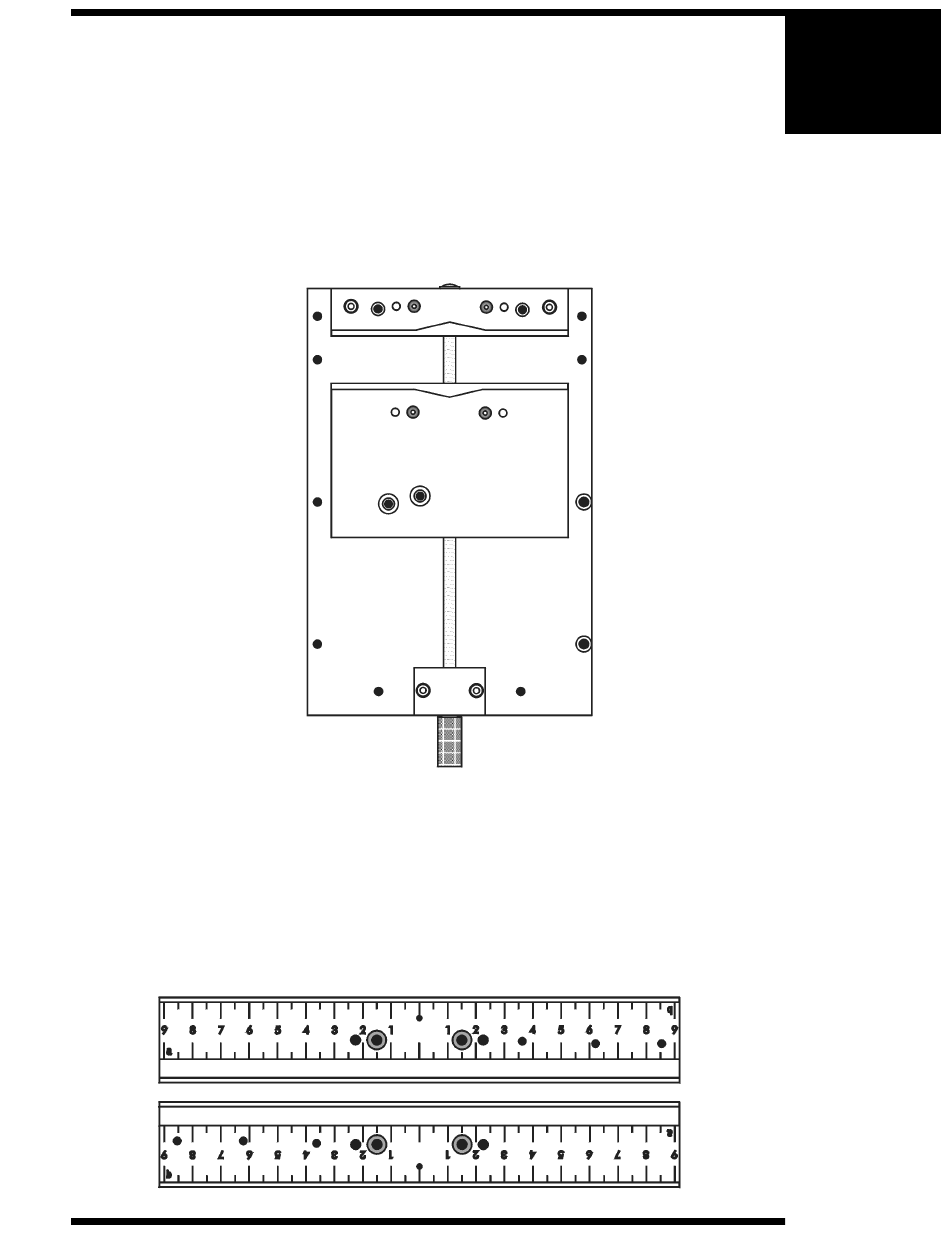

(Figure 7.1)
Versa Vise
Universal Clamping Bars (9" Jaws)
These clamping bars are specially designed to hold both 1/16" and 1/8" thick materials and
allow engraving up to the edge of the material without nosecone interference. Other uses
include: holding metal engraving stock, name badges or other rectangular shapes. The bars will
fit the Versa Vise or can be used directly on most T-slot table surfaces. The bars will also fit
Pantographs and other computerized systems that use the dowel pin system.
(Figure 7.2) 9" Jaws
