Chapter 3: Setting Up The Table - Vision Engraving & Routing Systems 1212 Operating Manual

Chapter 3: Chapter 3:
Chapter 3:
Chapter 3: Chapter 3:
Se Se tting U tting U p The T p The T
Se Se Se tting U tting U tting U p The T p The T p The T able
Connection of Power, Cables, and Controllers
Additional boxes may have been shipped along with your table, depending on the system
ordered. These will typically include a control unit and associated cables. The proper connection
of these cables is essential. Check the appropriate user's manuals for your controller before
attempting to connect them it to the table. After connection of the cables as directed by your
controller manual, power can be connected to the system. It is suggested that a surge protector
be used. (A surge protector--often called "power strip"--is included with the newest Vision Serial
Controllers; otherwise, one may be purchased inexpensively at any hardware store.) If your
system was purchased with a Vision Serial Controller, a surge protector may have been included.
This will allow powering all of the elements of the system at once.
Some models may have included a separate spindle motor speed controller. This unit is powered
separately in some configurations. See the next section for information on installing this unit.

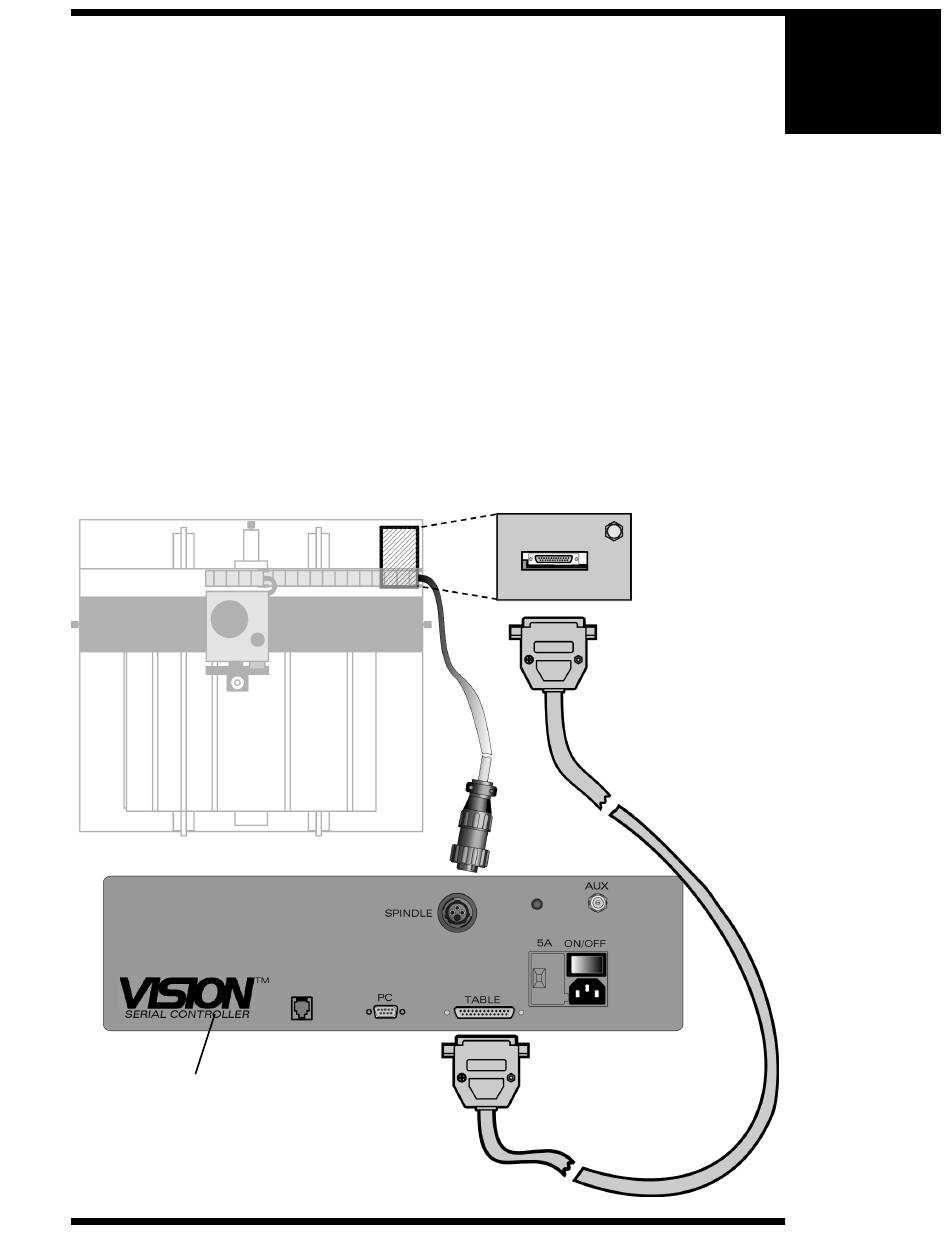

(Figure 3.1) Breakout box with 25-pin connection to the Vision Serial Controller
Back view of the
Vision Serial Controller
able able
able able
