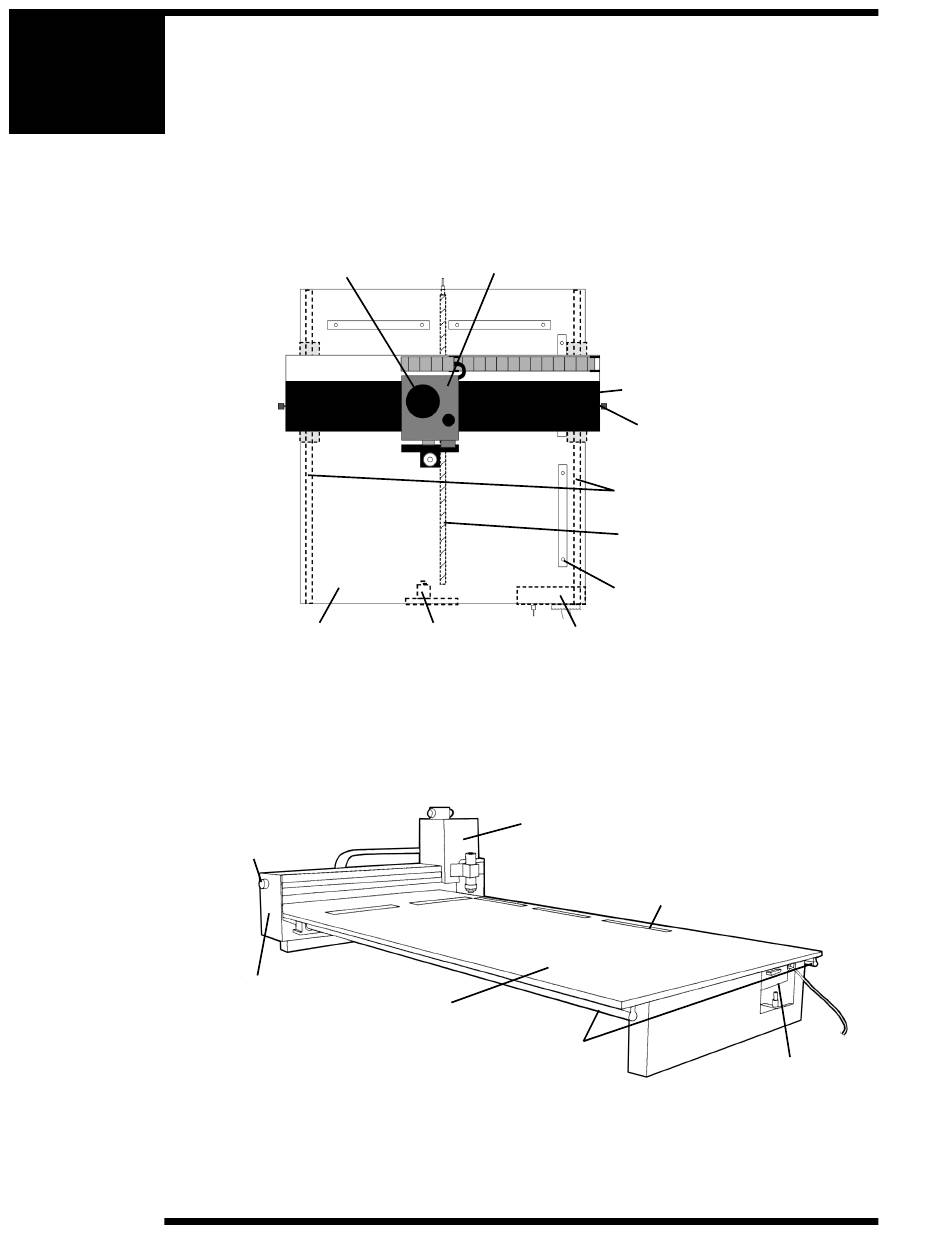

(Figure 6.3) Series2 flatbed (moveable gantry) table with THK carriage design.
Shown here is a top view of the Vision 2424.
(Figure 6.3a) An angled front view of the Series2 Vision 2448.
Chapter 6
Page 26
10. Engraving Motor
1. Table Base Plate
7. Y-Axis
Stepper Motor
4. Gantry Assembly
1. Table Base Plate
5. Carriage Assembly
8. X-Axis
6. Breakout Box
Stepper Motor
5. Carriage Assembly
2. X-Axis Linear Rails
4. Gantry Assembly
7. Y-Axis
Stepper Motor
2. X-Axis Linear Rails
3. X-Axis Lead Screw
9. Material Guides
9. Material Guides
6. Breakout Box
