Chapter 7
The Vacuum Chip Removal System
The optional vacuum chip removal system is designed to simplify the engraving process and
minimize wear and tear on the engraver. The vacuum chip removal system uses a vacuum nose
cone to remove chips created during the engraving process before they have the chance to create
problems. The quiet pump, coupled with the microfine-layered filters assures that your unwanted
chips are whisked away effortlessly. The vacuum pump canister uses replaceable filters that can
also be reused, to assure maximum efficiency and cost-effectiveness.
The vacuum chip removal system allows prompt removal of chips and dust created in the engraving
process, reducing contamination and overheating in the spindle area. Chip removal also prevents
the cutter from skipping over letters due to stray particles. This vacuum chip removal system is
available with or without a Vision vacuum nose cone.

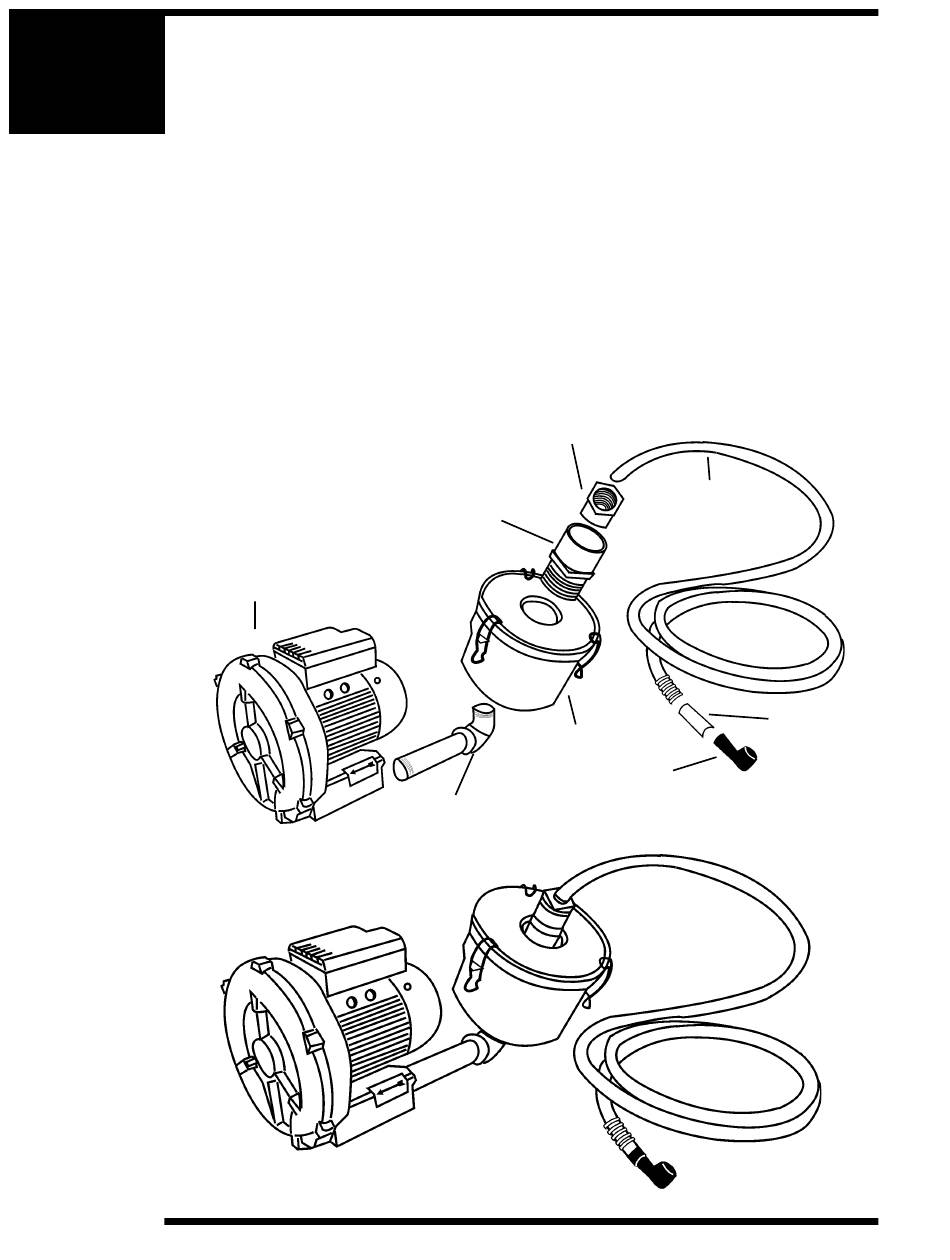

(Figure 7.15) Vacuum Chip
Removal System
Vacuum Pump System
Page 38
Elbow pipe connector
ALL PIECES CONNECTED
Vac hose connector
(small end)
Vac hose connector
(large end)
Vacuum filter canister
Vac hose
(threaded)
Vac hose
(2" clear)
Vac nose - black
