Chapter 5

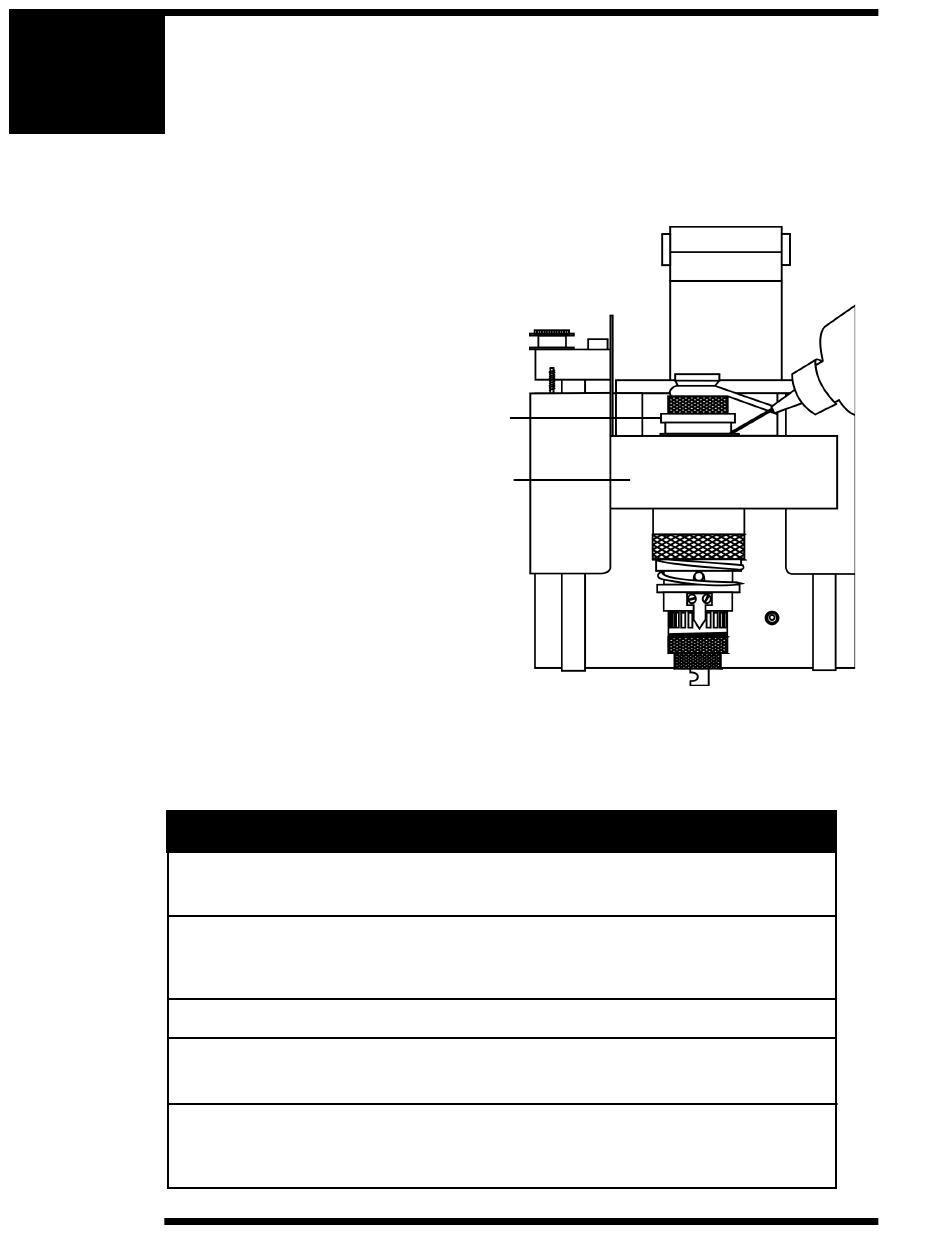

Spindle Lubrication (for Series 3 Vision Tables only)
The spindle assembly in the Series 3 Vision Tables requires a
monthly lubrication of the housing (as shown in Fig.5.4).
Simply push the spindle up until there is a 1/3" gap between
the spindle block and the "lip" of the housing. Lubricate with
2 to 3 drops of 3 in 1 oil.
DO NOT OVER LUBRICATE! This wil cause
the spindle to stick.
MAINTENANCE SCHEDULE
Following is a suggested maintenance schedule. Remember that in conditions of prolonged use,
unusual environments, or unusual applications, maintenance items may need to be performed
more frequently than suggested in this schedule.
Page 24
Spindle Housing "Lip"
Frequency
As needed
Every Day
Every Week
Every Month
Every Six Months
Spindle Block
(Figure 5.4)
Maintenance Items
1. Vacuum and/or brush
2. Clean vacuum canister filters
1. Remove chips form the spindle if
you do not have a vacuum chip
removal assembly.
1. Lubricate steel X, Y lead screws
1 . Lubricate the Z-Axis lead screw
2 . Lubricate the Spindle Housing
1 . Check the brushes and replace if
necessary.
2. Lubricate the Z-Axis linear bearing
