Chapter 6: Earlier Table Models - Vision Engraving & Routing Systems 1212 Operating Manual

Chapter 6: Chapter 6: Chapter 6:
Chapter 6: Chapter 6:
Earlier T Earlier T able Models Earlier T able Models able Models able Models
Earlier T Earlier T able Models
Over the years, most of the changes to Western's engraving tables has been in the carriage
assembly. Earlier upgrades to the Z-axis have evolved from the Series 1 V-wheel design to the
Series2 THK bearing design. The terms and descriptions for these earlier models are the same
as the current models--please refer to chapter 2.

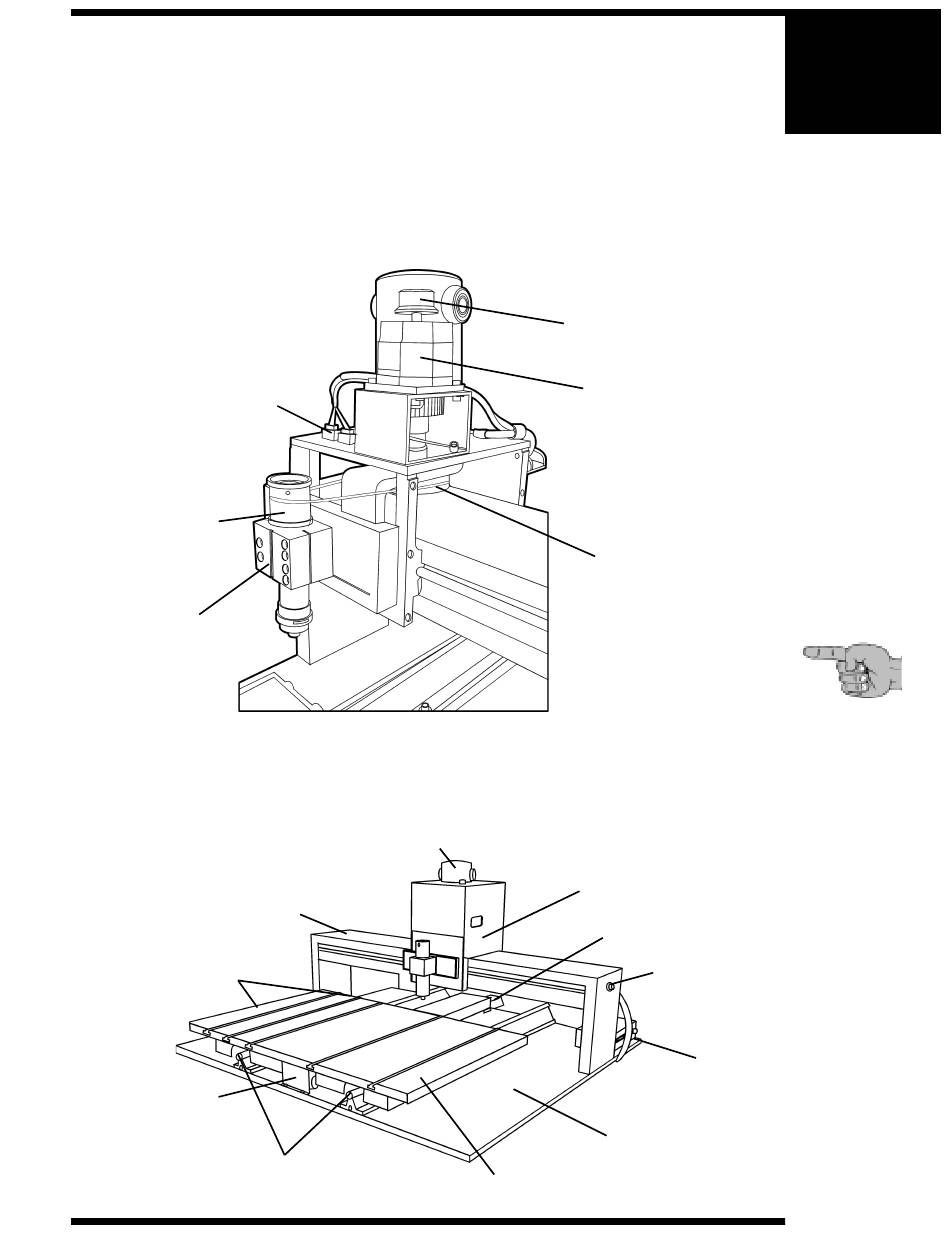

(Figure 6.1) Close up of the
Series2 THK carriage
Shown is 3/4 view, without
sheetmetal top cover
Terminal Blocks
Spindle Assembly
Spindle Block
(Figure 6.2) Series2 T-slot table with THK carriage design. Shown below is an angled
front view of the Vision 1624. The Series2 Vision 1212 and Vision 1224 models had a
similar design.
Gantry Assembly
Material Guides
Y-Axis Lead Screw
(under metal cover)
Y-Axis Linear Rails
Engraving Motor
Carriage Assembly
Table Base Plate
T-Slot Table
Engraving Motor
Z-Axis Stepper Motor
Engraving Motor Belt
For a description
of terms, refer to
chapter 2.
Y-Axis Stepper Motor
X-Axis Stepper
Motor
Breakout Box
Chapter 6
Page 25
