Adjustable Pen Jig
Designed specially for pens and cylindrical items whose shape is not symmetrical. The adjust-
ment allows the capture of the small tapered diameter of pens or odd shaped items. These
jaws will fit the Versa Vise or can be used directly on most T-slot table surfaces. They will also fit
Pantographs and other computerized systems that use the dowel pin system.

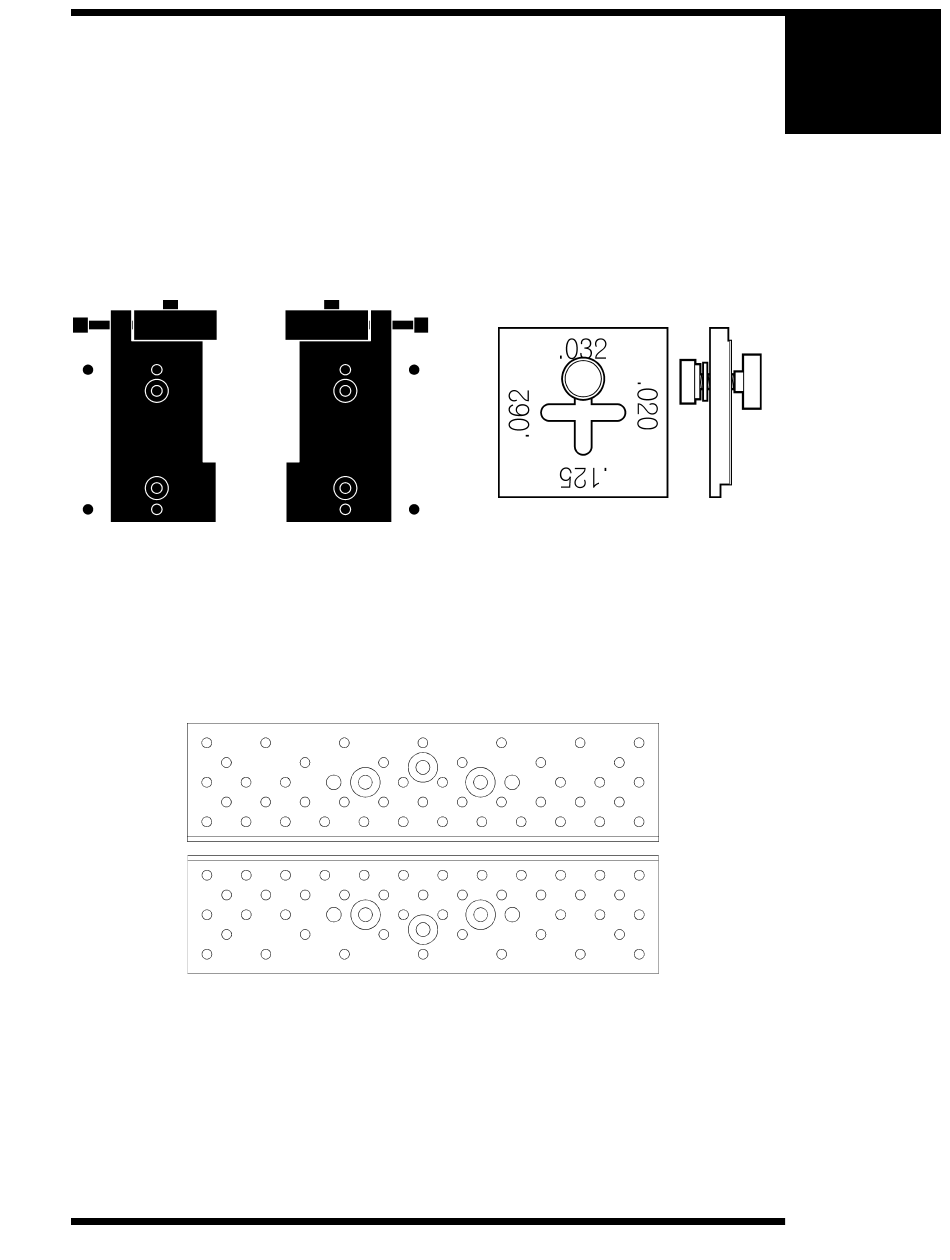

(Figure 7.6) Adjustable Pen Jig
Edge Clamps
This clamp is designed to secure plastic or metal engraving stock from the top. This avoids
bowing of the material in some applications. This clamp can be moved anywhere on a T-slot
table and will hold material thicknesses of .020, .032, .062, and .125 by simply tightening a
thumbscrew.
Universal Pin Jig
This is a true universal clamp designed for holding odd shaped items such as state badges,
hearts, and medallions with unusual borders, pet tags, jewelry and more. The dowel pins may
be moved anywhere on the jaw to accomodate any odd shape. These jaws will fit the Versa Vise
or can be used directly on most T-slot table surfaces. They will also fit Pantographs and other
computerized systems that use the dowel pin system.
(Figure 7.8) Universal Pin Jig
(Figure 7.7) Edge Clamp
Top view and side view
